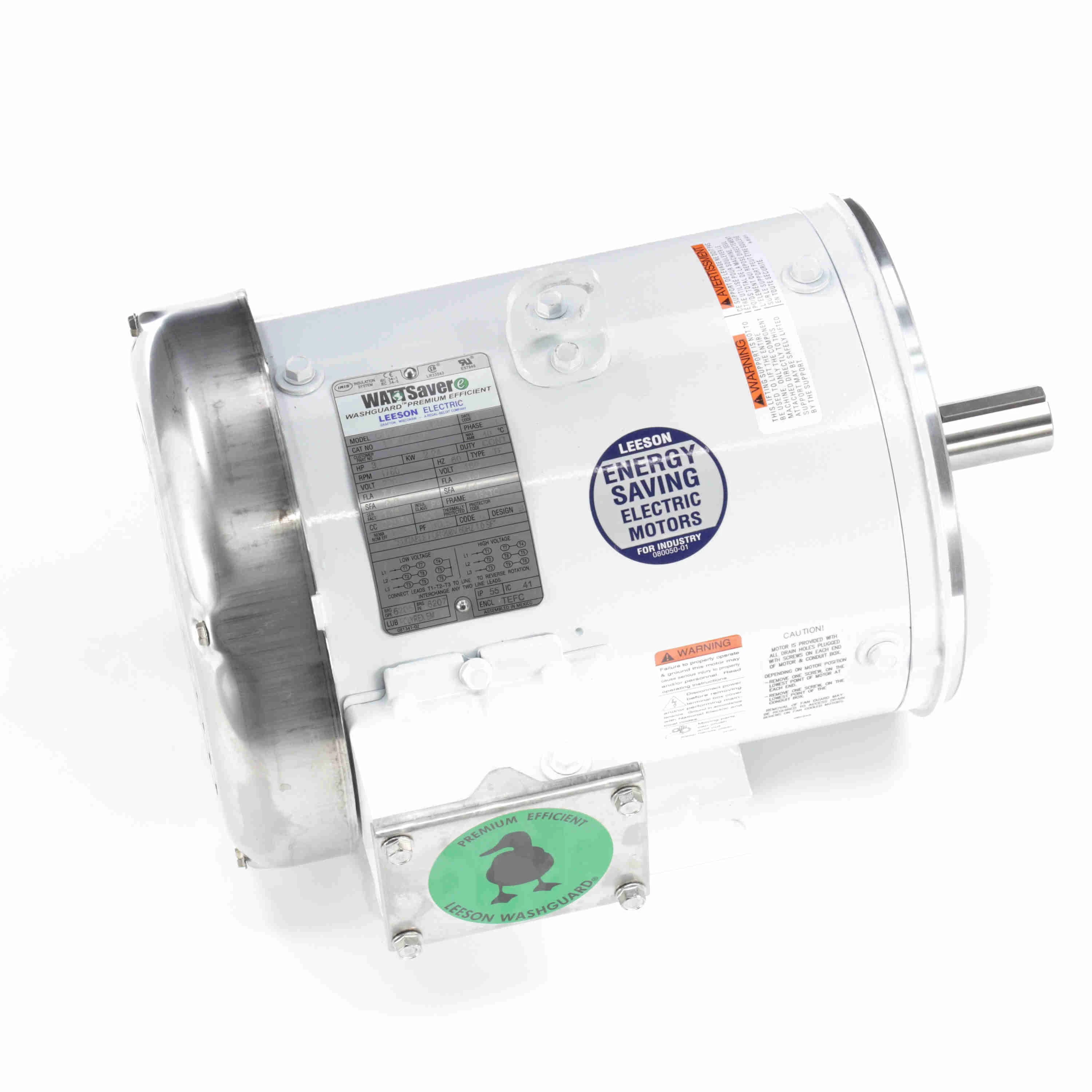

LEESON 132198.00 C182T17WK13A General Purpose Motor, 3 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2RVQModel: 132198.00Cross Ref: 48ZG08 / C182T17WK13A

Check Availability

In Stock

Get it by Thursday, Dec 25

~~€2,200.23~~

10.00% off

€1,980.21 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Application	Washdown
Assembly	180-009
Bearing Type	Ball
Body Dia.	8.38"
Bolt Circle Dia.	7 1/4"
Cc Number	CC005A
Code	K
Color	White
Conduit Box Location	Exterior
Design	B
Drive End Bearing Size	6207
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	89.5%
Enclosure Type	Tefc
Finish	Epoxy Coated
Frame	182TC
Frame Material	Rolled Steel
Frame Type	182TC
Frequency	60 Hz
Full Load Amps	7.8/3.9A
Grease Type	Polyrex EM
Hp	3 hp
Hz	60 Hz
Ins. Class	Class F
Insulation Class	Class F
Kw	2.2 kW
Length Less Shaft	11 13/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Counter Clockwise Shaft End
Motor Shaft Rotation	CWSE
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Rpm	1760 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	89.5%
Opp. Drive End Bearing Size	6205
Opp. Drive End Bearing Type	Ball
Overall Length	14 1/2"
Packaging	B
Phase	3
Power	2.24 kW
Power Factor	80.5
Product Type	Washdown Brake Motor
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	1 1/8"
Shaft Length	2 3/4"
Standards	Bissc Approved, Ce, Csa Certified, Ul Recognized, Usda Approved
Thermal Protection	None
Type	TF
Usable @ 200v	No
Usable @ 208v	No
Voltage	230/460V
Weight	79 lbs.

Shipping Info:

Ship weight (kg)	35.55
Ship height (cm)	31.45
Ship length (cm)	51.13
Ship width (cm)	37.16
Country of Origin	MX

Product Details:

Eff 100%: 89.5
Bearing OPE: 6205
CC Number: CC005A
Bearing PE: 6207
Winding: T84174
GROUP: 3
Paint: WHITE - LEESON (EPOXY)
S. F Amps: 8.8 / 4.4

Product Variants

Model	Voltage	Hp	Finish	Nameplate Rpm	Frame	Full Load Amps	Motor Mounting Type	Ambient Temp.	Price
112429.00	208-230/460V	1/2 hp	Epoxy Coated	1800 RPM	56C	1.9-2/1A	-	40°C	€669.17
112430.00	208-230/460V	3/4 hp	Epoxy Coated	1800 RPM	56C	2.8-2.7/1.4A	-	40°C	€1,690.22
112547.00	208-230/460V	33/100 hp	Unfinished	1725 RPM	56C	1.5-1.7/0.85A	Face, Base	104°F	€723.20
113586.00	208-230/460V	1/2 hp	Epoxy Coated	1725 RPM	56C	1.8A	Face, Base	104°F	€1,045.80
113587.00	208-230/460V	3/4 hp	Epoxy Coated	1725 RPM	56C	1.2A	Face, Base	104°F	€772.43
113590.00	230/460V	1 hp	Epoxy Coated	3450 RPM	56C	1.3A	Face, Base	104°F	€1,047.84
113591.00	230/460V	1 1/2 hp	Epoxy Coated	3450 RPM	-	1.9A	Rigid Base	104°F	€1,342.84
