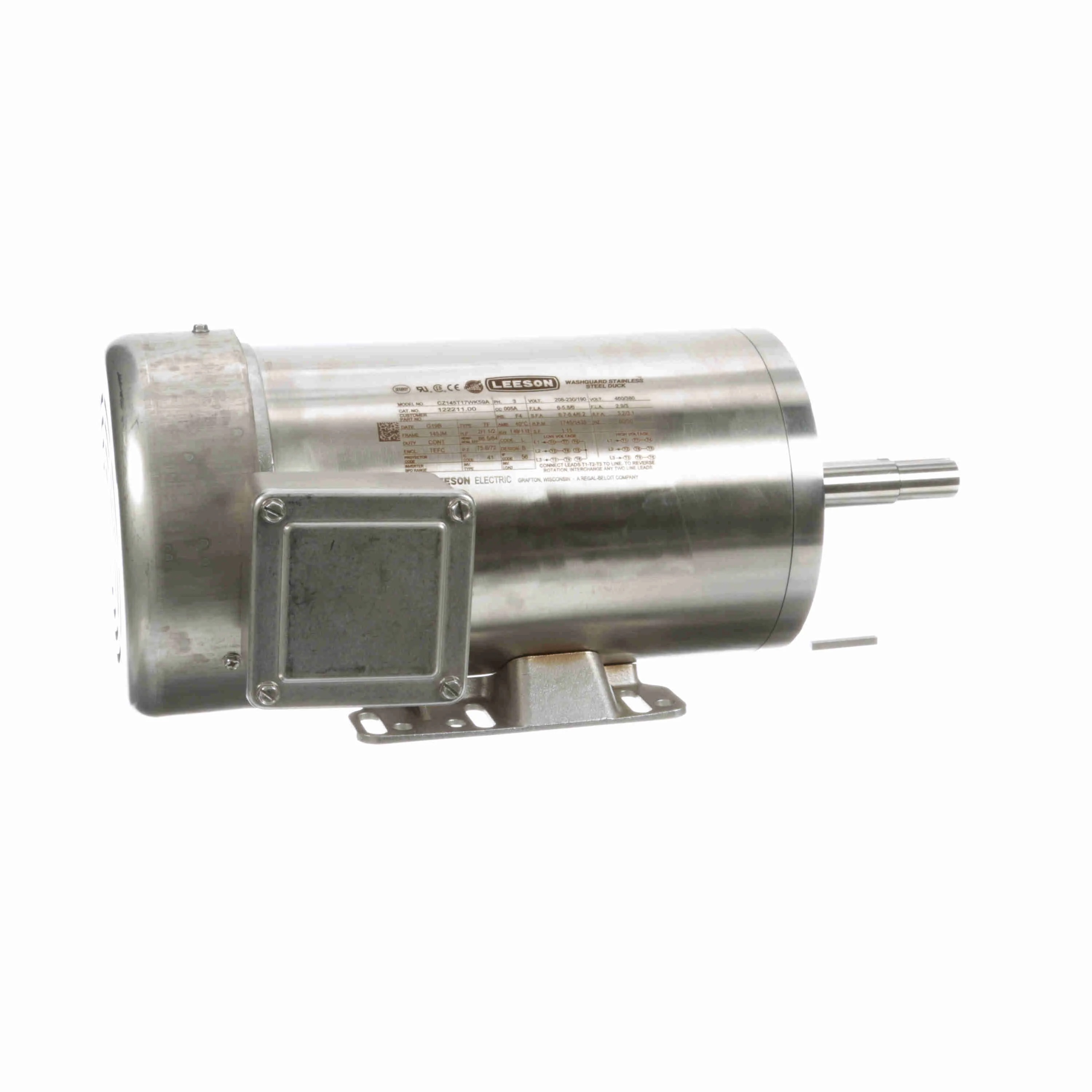

LEESON 122211.00 CZ145T17WK59A Washdown Pump Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
10.00% off
€2,968.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Application | Washdown |
| Assembly | 42539 |
| Bearing Type | Ball |
| Body Dia. | 6 14/25" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Finish | Unfinished |
| Frame | 145JM |
| Frame Length | 9 1/2" |
| Frame Material | Stainless Steel |
| Frame Type | 145JM |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Hz | 50/60 Hz |
| Includes | Removable Hydrophobic Breathers In Opposite Shaft Endbell |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP56 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Length Less Shaft | 12 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed And Drilled On Center |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 17" |
| Packaging | B |
| Phase | 3 |
| Power | 1.5 kW |
| Power Factor | 75.6 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 6 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4.21" |
| Shaft Material | Stainless Steel |
| Shaft Type | JM |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Line Or Inverter |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 47 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - G121630.00 / CZ145T17WK46A
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6206
- Nameplate: 081120
- Winding: T634340
- GROUP: 3
- S. F Amps: 6.7-6.4 / 3.2
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Full Load Amps | Overall Length | Power Factor | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
122213.00 | 230/460V | 3 hp | 3490 RPM | 145JM | 4A | 16 1/2" | 86 | No Protection | €2,362.97 | |
 |
132450.00 | 230/460V | 3 hp | 1770 RPM | 182JM | 7.8/3.9A | 16 3/16" | 80.5 | None | €4,269.93 | |
 |
132451.00 | 230/460V | 5 hp | 3495 RPM | 184JM | 12/6A | 16 3/4" | 89.5 | None | €4,672.13 | |
 |
132452.00 | 230/460V | 5 hp | 1760 RPM | 184JM | 12.6/6.3A | 17 1/4" | 83 | None | €4,027.46 | |
 |
141274.00 | 230/460V | 7 1/2 hp | 3525 RPM | 213JM | 18.6/9.3A | 19 13/16" | 84.6 | None | €4,568.07 |
