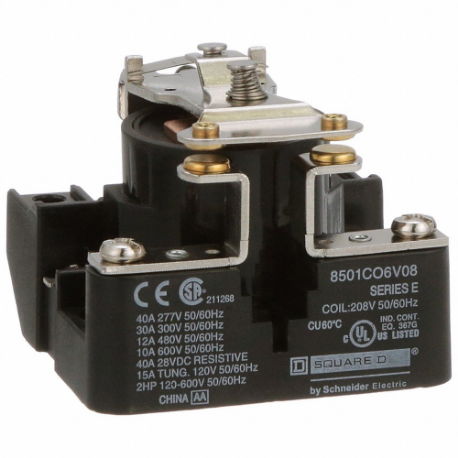

SCHNEIDER ELECTRIC 8501CO6V08 Open Power Relay, Surface Mounted, 30 A Current Rating, 208VAC, 4 Pins/Terminals, SPST-NO
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Open Power Relay |
| Ac Contact Rating | 30A @ 300V |
| Amps | 30A |
| Base Shape | Square |
| Body Depth | 1.39" , 2 1/4" |
| Body Height | 2.43" , 2.49" |
| Body Width | 2 1/2" |
| Coil Voltage | 208V AC |
| Contact Form | SPST, NO |
| Contact Rating | 30A |
| Electrical Connection | Screw |
| Electrical Connection Type | Screw |
| Electrical Connection-power Relay | Screw Clamp |
| Environmental Protection | Open |
| Features | Durable Open-Frame Construction, Green Premium Product |
| Flat Pin Width | Not Applicable |
| Frequency | 60 Hz |
| Hp @ 120v | 2 hp |
| Hp @ 240v | 2 hp |
| Hz-electrical | 60 Hz |
| Mfr. Series | 8501C Series |
| Motor Rating | Yes |
| No. Of Pins | 4 |
| No. Of Pins/terminals | 4 |
| Overall Depth | 1.98" |
| Overall Height | 2.43" |
| Power Consumption | 10 VA |
| Power Consumption-relay | 10 VA |
| Product Datasheet | schneider-electric-8501co6v08.pdf |
| Push-to-test Button | No Test Button |
| Relay Mounting | Through Panel |
| Relay Mounting Style | Surface |
| Sealing | Open |
| Status Indicator | No |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 6.32 |
| Ship length (cm) | 3.53 |
| Ship width (cm) | 6.35 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Relay Mounting Style | Coil Voltage | Type | Frequency | Contact Form | Push-to-test Button | No. Of Pins/terminals | Electrical Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| RPF2AB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2AF7 | - | 120V AC | - | 50/60 Hz | - | - | - | - | €23.38 | |
| RPF2AP7 | DIN Rail, Surface | 230V AC | - | 50/60 Hz | DPST, NO | No Test Button | 6 | Tab | €23.38 | |
| RPF2BJD | DIN Rail, Surface | 12V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BBD | DIN Rail, Surface | 24V DC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BB7 | DIN Rail, Surface | 24V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 | |
| RPF2BF7 | DIN Rail, Surface | 120V AC | - | 50/60 Hz | DPDT | No Test Button | 8 | Tab | €23.05 |
