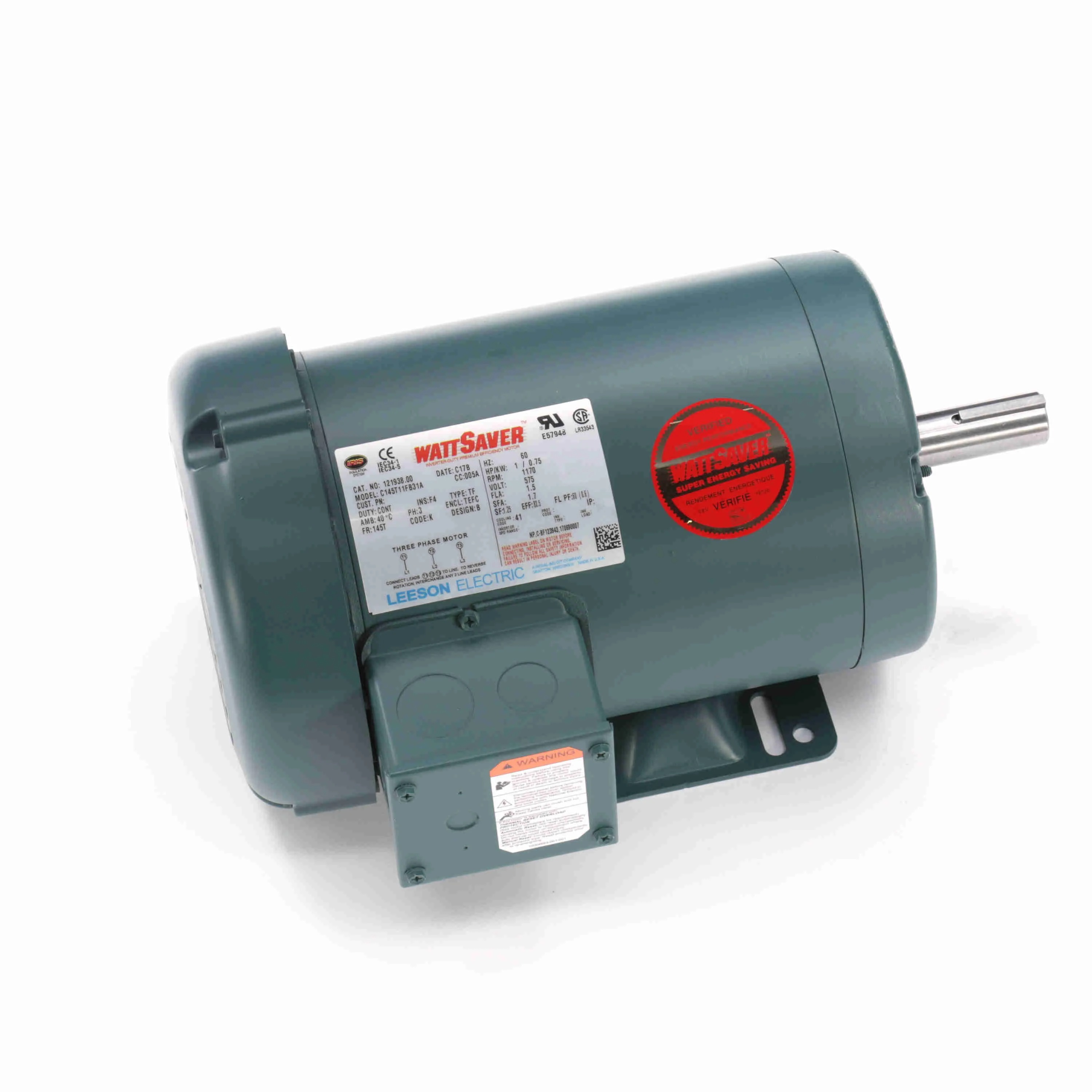

LEESON 121938.00 C145T11FB31A Special Voltage Motor, 1 HP, 3 Phase, 60 Hz, 575V, 1200 RPM
Get it by Tuesday, Dec 23
€926.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 1.5A |
| Code | K |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145T |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 1.5A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1170 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1200 RPM |
| Nema Design | B, K |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 60 |
| Resistance Main | 20.8 ohms |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Voltage | 575V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- S. F Amps: 1.7
- Eff 100%: 82.5
- Bearing OPE: 6203
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T63681
- GROUP: 4
- Paint: GREEN - LEESON WATTSAVER
Product Variants
| Model | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Frame Material | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 119540.00 | 1800 RPM | 1 1/2 hp | 1.9A | Squirrel Cage Induction Run | 1.15 | 56 | Rolled Steel | 5/8" | €769.40 | |
| 170120.60 | 1800 RPM | 40 hp | 36.8A | Squirrel Cage Inverter Rated | 1.15 | 324T | Cast Iron | 2 1/8" | €5,934.61 | |
| 170121.60 | 1800 RPM | 50 hp | 46A | Squirrel Cage Inverter Rated | 1.15 | 326T | Cast Iron | 2 1/8" | €6,314.94 |
