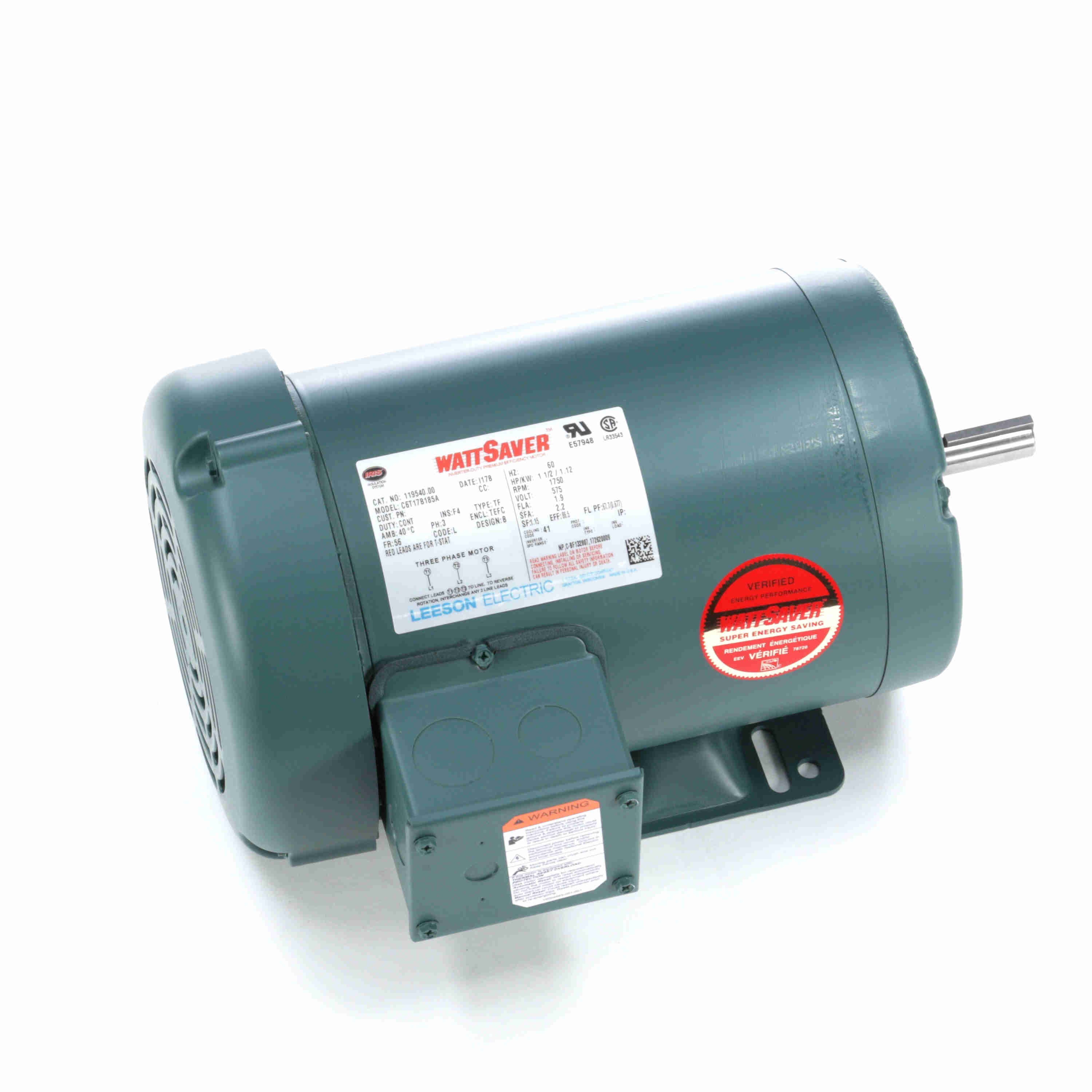

LEESON 119540.00 C6T17FB185A Special Voltage Motor, 1.50 HP, 3 Phase, 60 Hz, 575V, 1800 RPM
Get it by Wednesday, Jul 1
€769.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | 200-575 Volt Motor |
| Ambient Temp. | 40°C |
| Amps | 1.9A |
| Assembly | 42550 |
| Code | L |
| Design Code | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56 |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 1.9A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 1.1 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Speed | 1750 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800 RPM |
| Nema Design | B, L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.12 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 67.7 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 575V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 110893.00 / C6T17FB37G
- S. F Amps: 2.2
- Eff 100%: 86.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: T634341
- GROUP: 4
- Paint: GREEN - LEESON WATTSAVER
Product Variants
| Product | Model | Hp | Frame | Mounting Type | Power Factor | Service Factor | Nema Design | Shaft Dia. | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
114307.00 | 3/4 hp | 56 | Rigid Base | 62 | 1.15 | B | 5/8" | CW, CCW | €656.10 | |
 |
102694.00 | 1/2 hp | 56C | Face | 60 | 1.15 | B | 5/8" | CW, CCW | €617.79 | |
 |
114896.00 | 1 hp | 56C | Face | 73 | 1.15 | B | 5/8" | CW, CCW | €692.79 | |
 |
121274.00 | 1 1/2 hp | 143TC | Face | 79 | 1.15 | B | 7/8" | CW, CCW | €741.90 | |
 |
121938.00 | 1 hp | 145T | Rigid Base | 60 | 1.25 | B, K | 7/8" | Reversible | €926.95 | |
 |
122228.00 | 1 1/2 hp | 145TC | C Face, Footless | 67.7 | 1.15 | B, L | 7/8" | Reversible | €1,634.40 | |
 |
122229.00 | 2 hp | 145TC | C Face, Footless | 75.6 | 1.15 | B, L | 7/8" | Reversible | €948.53 |
