LEESON 121916.00 A145T34XB25A General Purpose Motor 50-60 Hertz | AJ2RKT A145T34XB25A

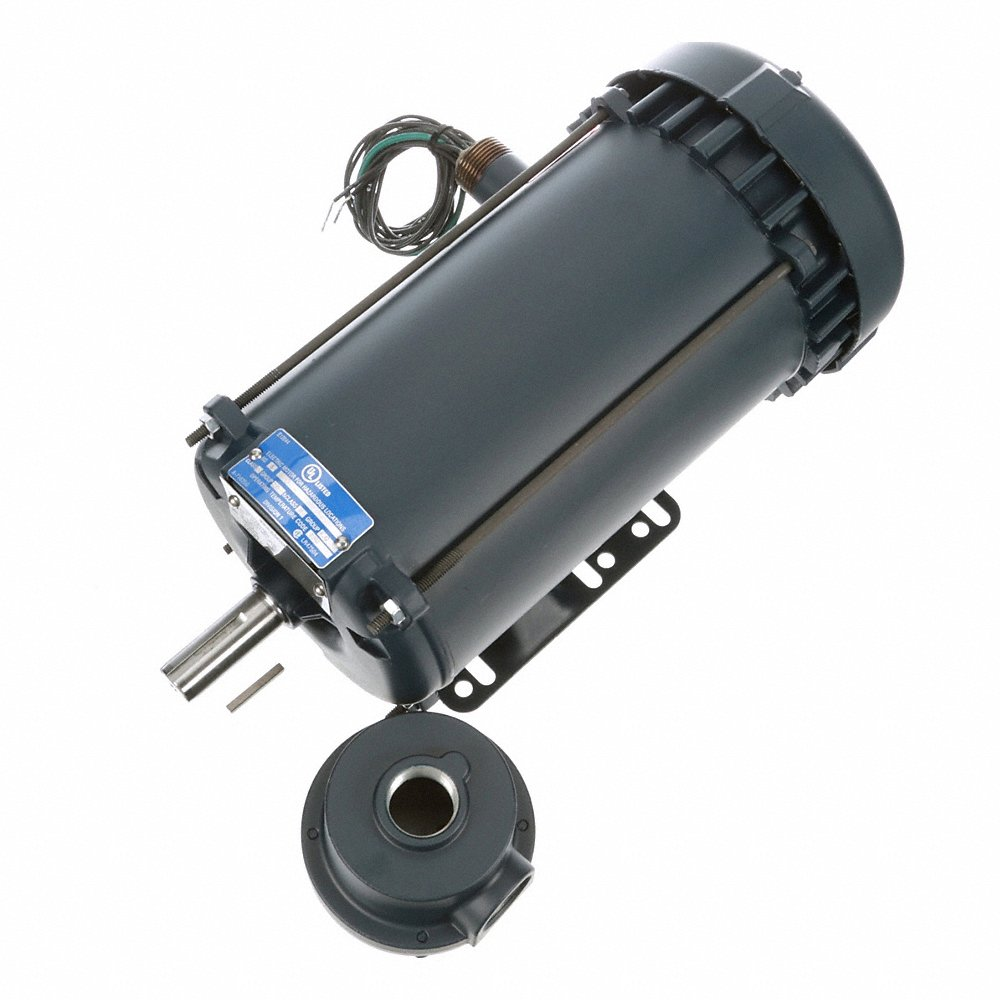

LEESON 121916.00 145T34XB25A Explosion Proof Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM

Item: AJ2RKTModel: 121916.00Cross Ref: 820J83 / 145T34XB25A
Check Availability
In Stock

Get it by Tuesday, May 19

€2,075.00
5.00% off
€1,971.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Explosion Proof Motor
Ambient Temp. 40°C
Amps 5/2.5A
Assembly A-S90894
Code K
Design B
Drive End Bearing Size 205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 85.5%
Electrical Type Squirrel Cage, Induction Run
Enclosure Type EPFC
Frame 145T
Frame Length 9.31"
Frame Material Rolled Steel
Frame Type 145T
Frequency 60 Hz
Grease Type Polyrex EM
Hazardous Location EXP Proof CL I GR C&D CL II GR F&G T3C
Hazardous Location Class 1C, D/2F, G
Height 8 3/25"
Hp 2 hp
Insulation Class Class B
Ip Code IP54
Kva Code K
Kw 1.5 kW
Length 19 22/25"
Lubrication Polyrex EM
Max. Rpm 3500 RPM
Motor Mounting Type Rigid Base
Motor Orientation Horizontal
Motor Type Squirrel Cage Induction Run
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 203
Opp. Drive End Bearing Type Ball
Packaging F
Phase 3
Power 1.49 kW
Power Factor 86
Product Datasheet leeson-121916-00.pdf
Resistance Main 7.1 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Starting Method Across The Line
Temp. Code T3C
Thermal Protection Automatic
Type TX
Voltage 230/460V
Width 10.25"

Shipping Info:

Ship weight (kg) 24.75
Ship height (cm)20.62
Ship length (cm)50.5
Ship width (cm)26.04
Country of OriginMX

Product Details:

    • Bearing OPE: 203
    • CC Number: CC005A
    • Bearing PE: 205
    • Nameplate: A-92340
    • Winding: ZT2142
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
    • Eff 100%: 85.5 / 84

Documentation:

Datasheet

Product Variants

ProductModelVoltageHpFrameNameplate RpmPhaseMotor ApplicationMotor Mounting TypeMotor Thermal ProtectionPrice
MARATHON MOTORS 056H17E5301 Vector Motor 0.75 Lb-ft 1/4 Hp 230/460 V | AA6ZUB 15G104 / Y600 056H17E5301230/460V AC1/4 hp56C1725 RPM3CraneRigid BaseThermostat€919.47
MARATHON MOTORS 056H17E5302 Vector Motor 1 Lb-ft 1/3 Hp 230/460 V | AA6ZUC 15G105 / Y601 056H17E5302230/460V AC1/3 hp56C1725 RPM3CraneRigid BaseThermostat€1,078.24
MARATHON MOTORS 056H17E5303 Vector Motor 1.52 Lb-ft 1/2 Hp 230/460 V | AA6ZUD 15G106 / Y602 056H17E5303230/460V AC1/2 hp56C1725 RPM3CraneRigid BaseThermostat€1,371.25
MARATHON MOTORS 056H17E5304 Vector Motor 2.25 Lb-ft 3/4 Hp 230/460 V | AA6ZUE 15G107 / Y603 056H17E5304230/460V AC3/4 hp56C1725 RPM3CraneRigid BaseThermostat€1,287.06
MARATHON MOTORS 056H17E5305 Vector Motor 3 Lb-ft 1 Hp 230/460 V | AA6ZUF 15G108 / Y604 056H17E5305230/460V AC1 hp56C1725 RPM3CraneRigid BaseThermostat€1,409.55
LEESON 118015.00 Hazardous Location Dc Motor 1/3 Hp 1750 Rpm 90vdc | AC7MAB 38N845 / C6D17EK1 118015.0090V33/100 hp56C1750 RPM-Hazardous LocationFace, BaseAuto€5,029.70
LEESON 118016.00 Hazardous Location Dc Motor 1/2 Hp 1750 Rpm 90vdc | AC7MAC 38N846 / C6D17EK2 118016.0090V1/2 hp56C1750 RPM-Hazardous LocationFace, BaseAuto€4,540.55
