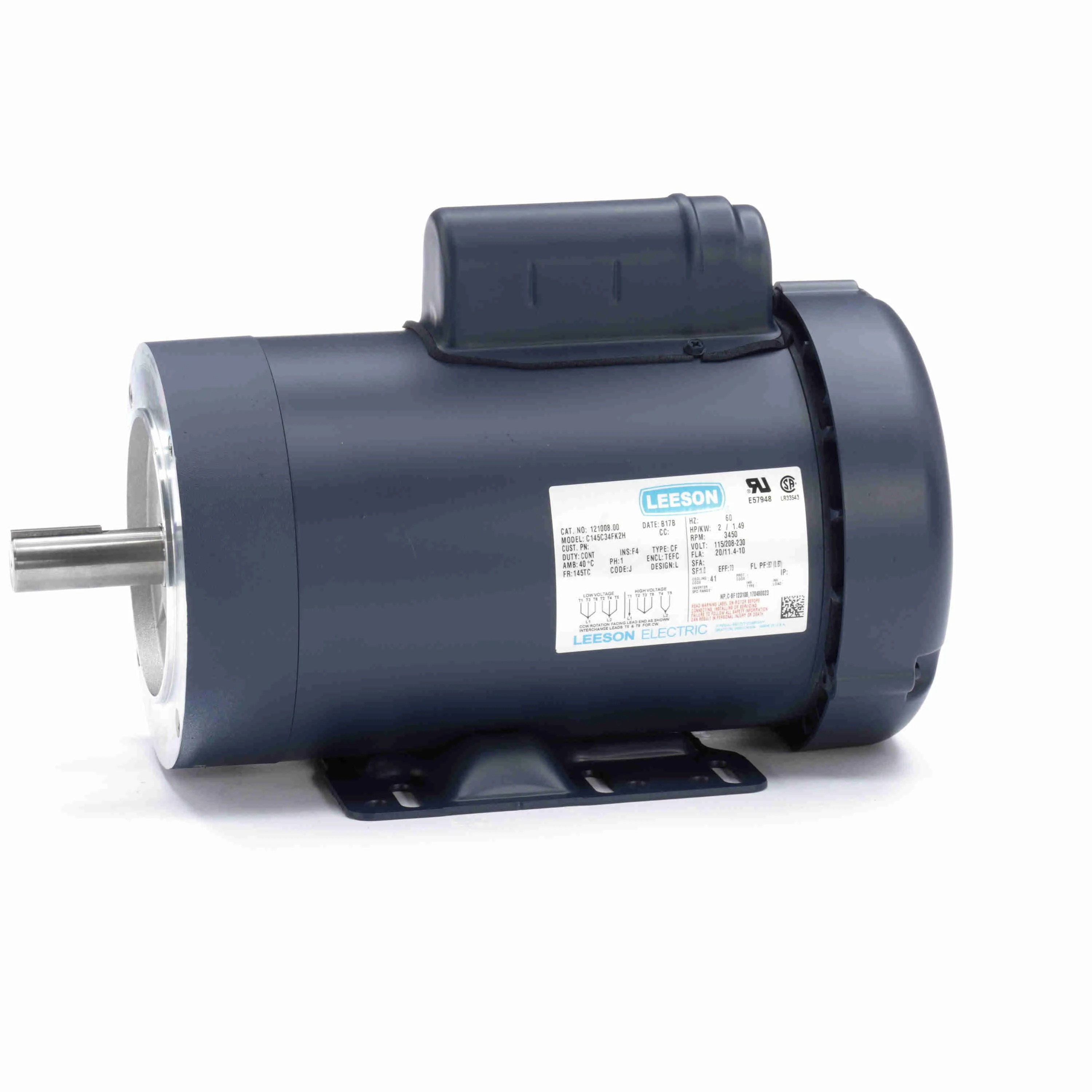

LEESON 121008.00 C145C34FK2H General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Friday, Dec 19
€979.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 20/10A |
| Code | J |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 73% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 8" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 20/11.4-10A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP43 |
| Kva Code | J |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | J, L |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 87 |
| Resistance Main | 0.92 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 73
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: C632213
- GROUP: 3
- Paint: VERIFY
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102916.00 | 115/208-230V | 1800 RPM | 1/4 hp | 5.4/2.4-2.7A | 1.15 | Capacitor Start | Rigid Base | S56C | €442.74 | |
 |
110180.00 | 115/208-230V | 3600 RPM | 1 hp | 12/6.2-6A | 1.15 | Capacitor Start | Rigid Base | 56C | €557.36 | |
 |
110905.00 | 115/208-230V | 1800 RPM | 3/4 hp | 10.8/5.4A | 1.15 | Capacitor Start | Rigid Base | 56C | €1,007.78 | |
 |
110908.00 | 115/208-230V | 1800 RPM | 1 hp | 12.8/6.4A | 1.15 | Capacitor Start | Rigid Base | 56C | €1,110.92 | |
 |
110909.00 | 115/208-230V | 3600 RPM | 1 1/2 hp | 17/8.5A | 1 | Capacitor Start | Rigid Base | 56C | €748.30 | |
 |
110910.00 | 115/208-230V | 1800 RPM | 1 1/2 hp | 17.2/8.8-8.6A | 1 | Capacitor Start | Rigid Base | 56HC | €915.03 | |
 |
112135.00 | 115/208-230V | 3600 RPM | 3/4 hp | 10/5.2-5A | 1.15 | Capacitor Start | Rigid Base | 56C | €505.75 |
