LEESON 120946.00 C145T48FB59D Definite Purpose Motor, 2/0.50 HP, 3 Phase, 60/60 Hz, 208-230 and 208-230V, 1800 RPM
Get it by Tuesday, Dec 23
€1,202.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 6.4A |
| Code | J |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Frame | 145T |
| Frame Length | 6 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145T |
| Frequency | 60 Hz |
| Full Load Amps | 6.4/2.6A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | J |
| Kw | 1.5 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | TF |
| Mounting Type | Rigid Base |
| Nema Design | B, J |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 1.49 kW |
| Power Factor | 70.6 |
| Resistance Main | 2.68 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Voltage | 208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 64
- Bearing OPE: 6203
- Bearing PE: 6205
- Nameplate: 993500
- Winding: T63(4-8)33
- GROUP: 2
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Hp | Insulation Class | Efficiency | Power Factor | Power | Nema Design | Amps | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

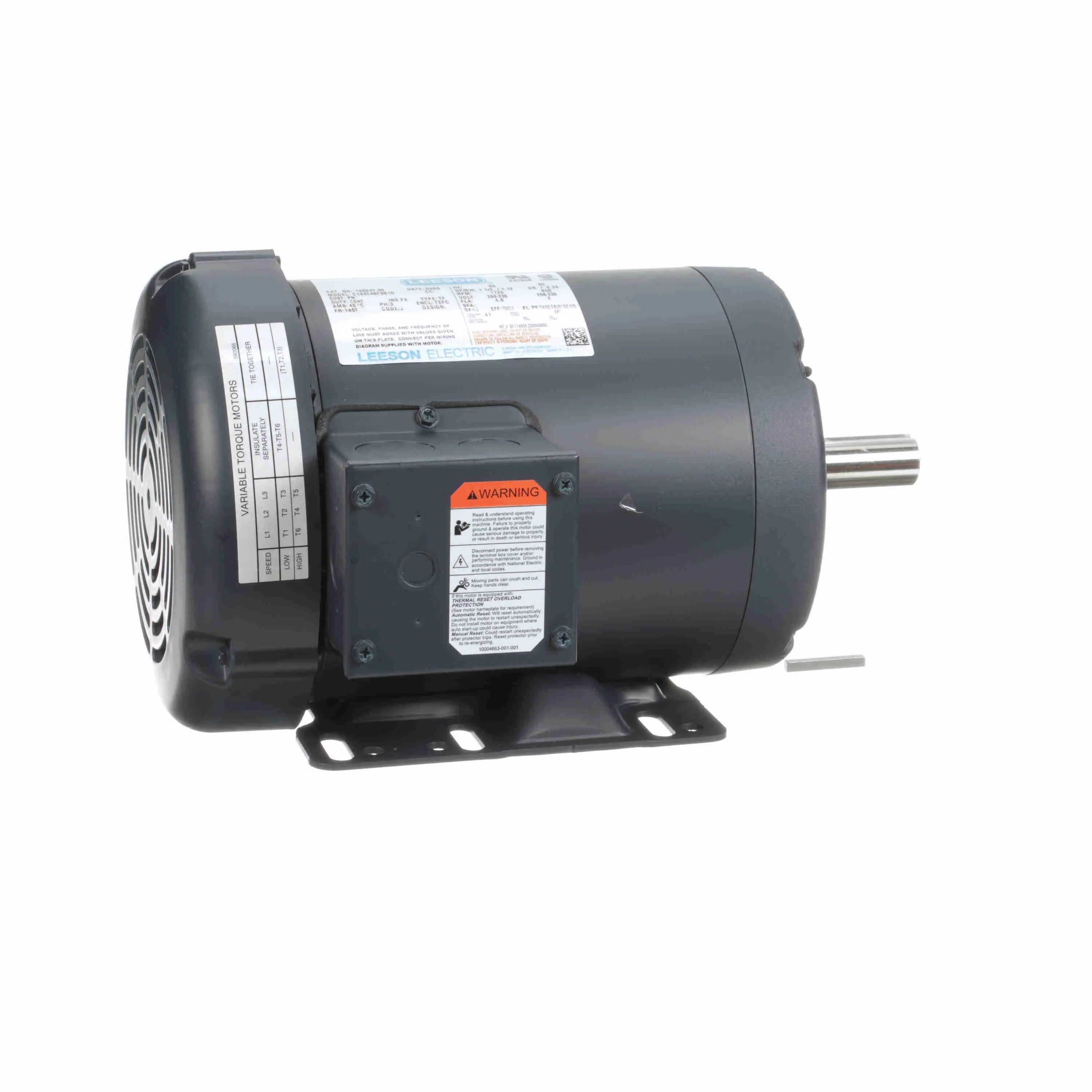

120947.00 | 1 1/2 hp | Class F | 79% | 74.5 | 1.12 kW | J | 4.8A | 208-230V | €1,853.63 |
