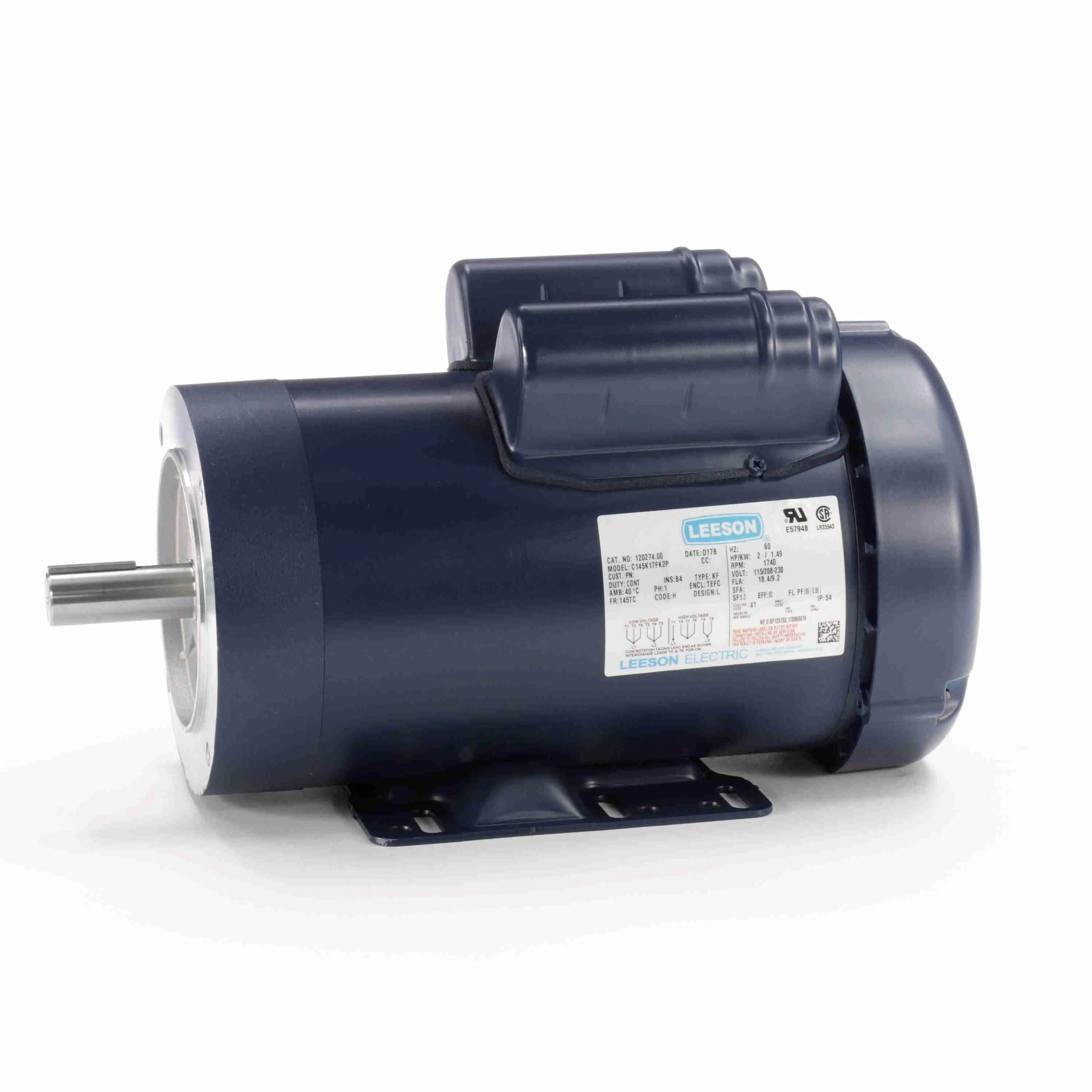

LEESON 120274.00 C145K17FK2P General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Friday, Apr 3
€1,233.41 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 18.4/9.2A |
| Code | H |
| Design Code | L |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82% |
| Electrical Type | Capacitor Start, Capacitor Run |
| Enclosure Type | Tefc |
| Frame | 145TC |
| Frame Length | 8 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 145TC |
| Frequency | 60 Hz |
| Full Load Amps | 18.4/9.2A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | H |
| Kw | 1.5 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1740 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | H, L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 86 |
| Product Datasheet | leeson-120274-00.pdf |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Type | T |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | KF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 82
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 993500
- Winding: K634271
- GROUP: 3
- Paint: VERIFY
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131631.00 | 115/208-230V | 1800 RPM | 3 hp | 33.6/16.8A | 1 | Capacitor Start/Run | Rigid Base | 184TC | €1,105.14 | |
 |
131632.00 | 230V | 3600 RPM | 5 hp | 19.8A | 1.15 | Capacitor Start/Run | Rigid Base | 184TC | €1,303.56 | |
 |
131633.00 | 230V | 1800 RPM | 5 hp | 23A | 1 | Capacitor Start/Run | Rigid Base | 184TC | €2,474.27 | |
 |
131857.00 | 230V | 1800 RPM | 3 hp | 12.8A | 1.15 | Capacitor Start/Run | Rigid Base | 184TC | €1,120.42 | |
 |
140678.00 | 230V | 1800 RPM | 10 hp | 40A | 1.15 | Capacitor Start/Run | Rigid Base | 215TC | €2,161.10 | |
 |
140694.00 | 208-230V | 3600 RPM | 7 1/2 hp | 32-36A | 1 | Capacitor Start/Run | Rigid Base | 213TC | €1,935.06 | |
 |
140695.00 | 208-230V | 3600 RPM | 10 hp | 41.5-44A | 1 | Capacitor Start/Run | Rigid Base | 215TC | €2,385.41 |
