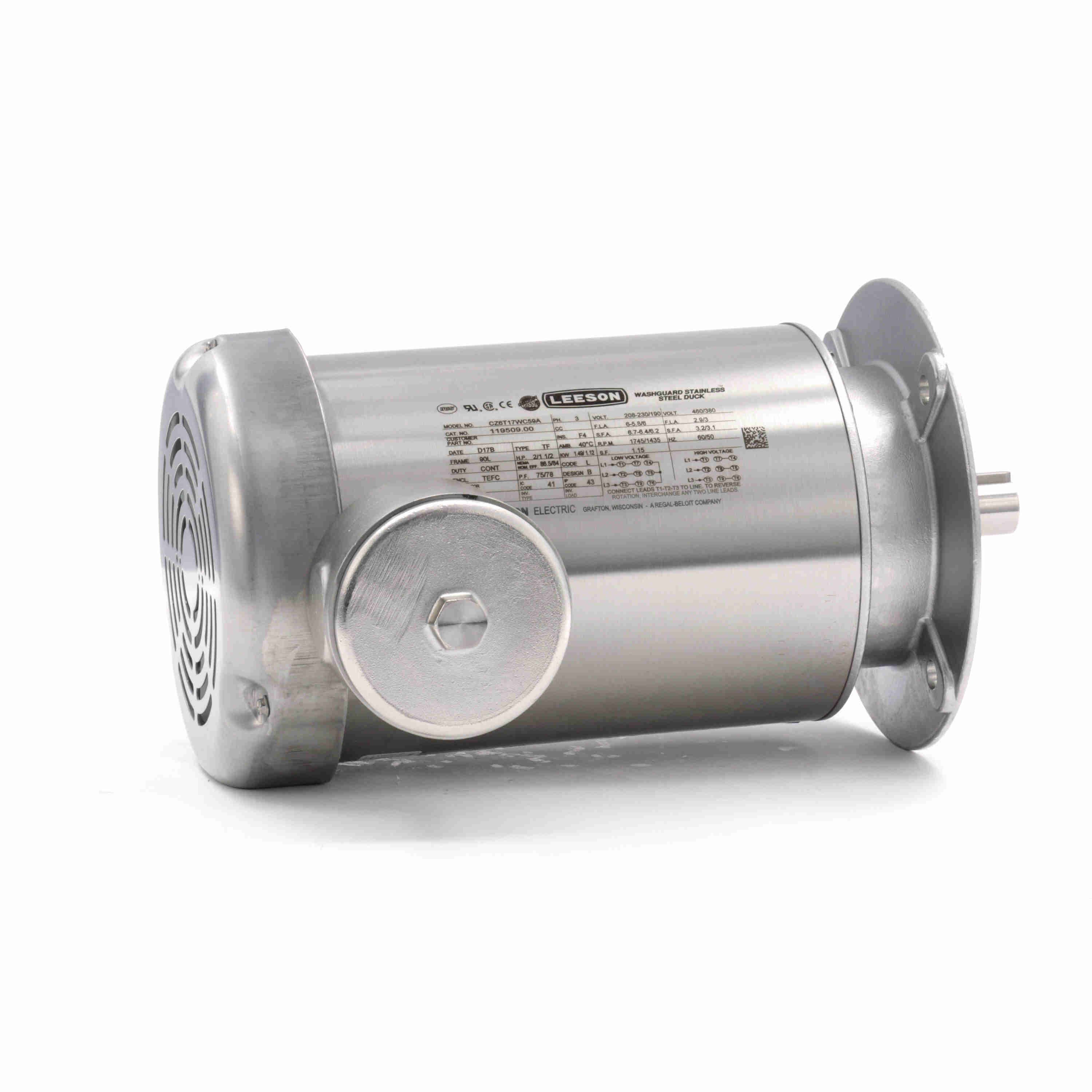

LEESON 119509.00 CZ6T17WC59A General Purpose, 2 HP, 3 phase, 1800 RPM
Get it by Thursday, Dec 25
€2,016.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Motor |
| Amps | 5.8/2.9A |
| Assembly | 42542 |
| Bearing Protection | Shaft Shield |
| Bearing Type | Ball |
| Body Dia. | 7.3" |
| Bolt Circle Dia. | 6 7/16" |
| Code | L |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Dia. | 7.3" |
| Diameter | 7.3" |
| Drain Plug | (1) Drain Plugs In Conduit Box |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Inverter Rated |
| Enclosure Type | Tefc |
| Endshield Material | Stainless Steel |
| Finish | Unfinished |
| Frame | 90L |
| Frame Length | 8 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 90L |
| Frequency | 60 Hz |
| Full Load Amps | 6-5.8/2.9A |
| Height | 12 22/25" |
| Hp | 2 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Inverter Rated | 6:1 |
| Inverter Rating | 6:1 |
| Ip Code | IP56 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 17.94" |
| Length Less Shaft | 11 7/8" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1745 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.2 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T Stat |
| Mounting Type | Round |
| Nameplate Rpm | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 13/16" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 75.6 |
| Product Type | Washdown Motor |
| Removable Base | Yes |
| Resistance Main | 6 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 0.937" |
| Shaft Length | 1.41" |
| Shaft Material | Stainless Steel |
| Shaft Type | IEC |
| Standards | Ce, Csa Certified, Ul Recognized |
| Starting Method | Line Or Inverter |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 54 lbs. |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 117518.00 / CZ6T17WC45A
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 081120
- Winding: T634340
- GROUP: 3
- S. F Amps: 6.7-6.4 / 3.2
- Eff 100%: 86.5 / 84
Product Variants
| Product | Model | Hp | Frame | Full Load Amps | Motor Shaft Rotation | Shaft Dia. | Shaft Length | Type | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

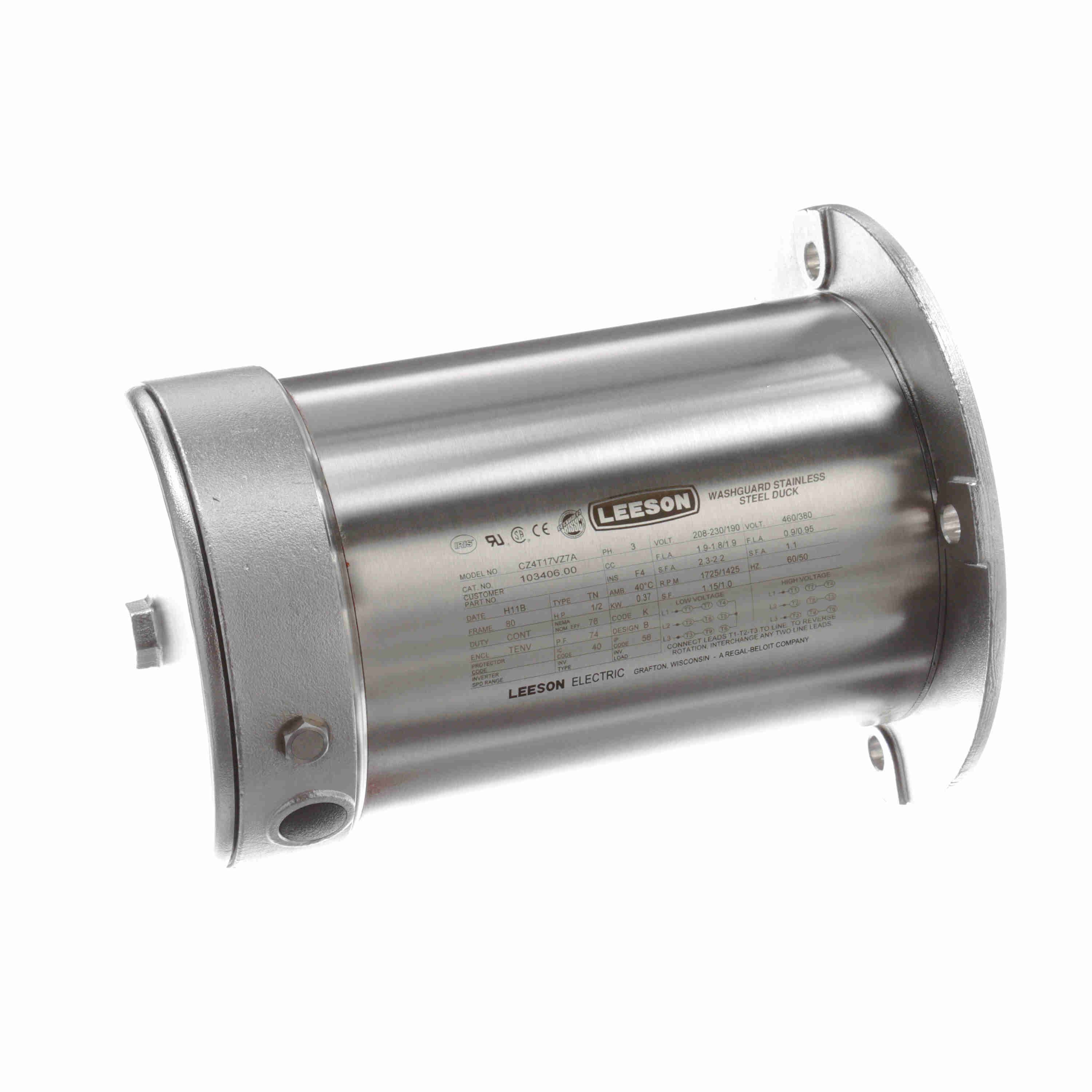

103406.00 | 1/2 hp | 80 | 1.8-1.9/0.9A | Reversible | 3/4" | 1.57" | TN | 1.8-1.9/0.9A | €549.32 |
