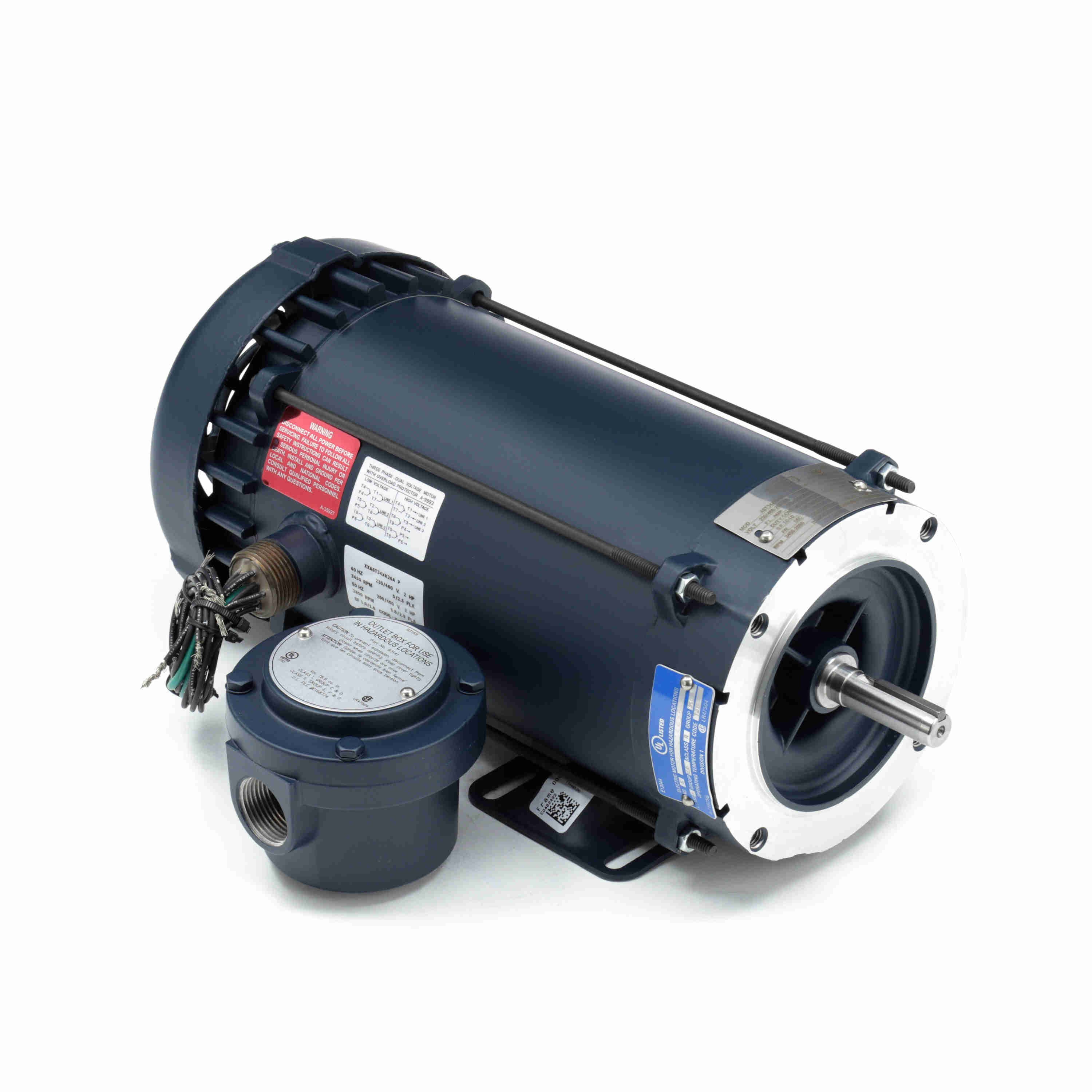

LEESON 119442.00 6T34XK26A Explosion Proof Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 200/400V, 3600 and 3000 RPM
Get it by Wednesday, Apr 1
5.00% off
€1,953.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 5/2.5A |
| Code | K |
| Design | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPFC |
| Frame | 56C |
| Frame Length | 9.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 9 3/4" |
| Hp | 2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | K |
| Kw | 1.5 kW |
| Length | 19" |
| Lubrication | Polyrex EM |
| Max. Rpm | 3450 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Type | Squirrel Cage Induction Run |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | F |
| Phase | 3 |
| Power | 1.49 kW |
| Power Factor | 86 |
| Product Datasheet | leeson-119442-00.pdf |
| Resistance Main | 7.1 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | TX |
| Voltage | 230/460V |
| Width | 10 22/25" |
Shipping Info:
| Ship weight (kg) | 30.15 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 114635.00
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: A-92340
- Winding: ZT2142
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- Eff 100%: 85.5 / 84
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Frame Material | Service Factor | Enclosure Type | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
825072.00 | 208-230/460V | 7 1/2 hp | 213TC | - | Cast Iron | 1.15 | EPFC | 2 | €2,937.54 | |
 |
825074.00 | 230/460V | 10 hp | 215TC | - | Cast Iron | 1.15 | EPFC | 2 | €3,086.79 | |
 |
825081.00 | 230/460V | 25 hp | 284TC | - | Cast Iron | 1.15 | EPFC | 4 | €5,947.55 | |
 |
825125.00 | 230/460V | 3 hp | 182TC | - | Cast Iron | 1.15 | EPFC | 2 | €1,993.73 | |
 |
825127.00 | 230/460V | 5 hp | 184TC | 3600 RPM | Cast Iron | 1.15 | EPFC | 2 | €1,997.19 |
