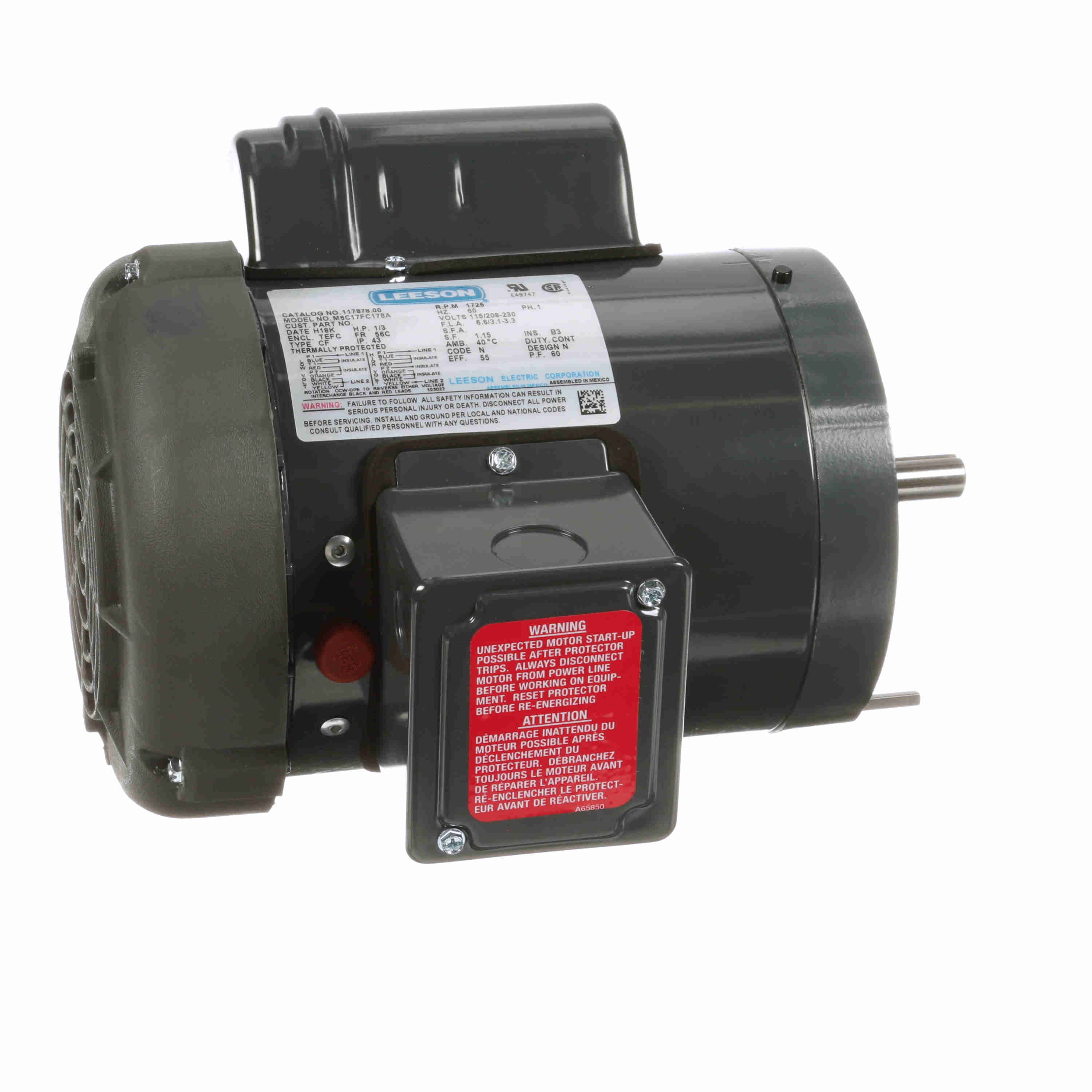

LEESON 117878.00 M6C17FC178A Agricultural Motor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Dec 23
€418.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Amps | 6.6/3.1-3.3A |
| Code | N |
| Conduit Box Position | F1 |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 55% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 6 14/25" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.1-3.3A |
| Height | 9.38" |
| Hp | 33/100 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | No |
| Kw | 0.25 kW |
| Length | 15 1/2" |
| Max. Ambient Temp. | 40°F |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800 RPM |
| Nema Design | N |
| No. Of Phase | 1 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.25 kW |
| Packaging | F |
| Power | 0.25 kW |
| Power Factor | 60 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Voltage | 115/208-230V |
| Width | 12 1/4" |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - M002290.00 / M6C17FC140-A
- Eff 100%: 55
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92005-23
- Winding: ZC406
- GROUP: 3
- Paint: GRAY (POWDER)
Product Variants
| Product | Model | Hp | Nameplate Rpm | Motor Enclosure Design | Motor Shaft Rotation | Motor Type | Power Factor | Efficiency | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

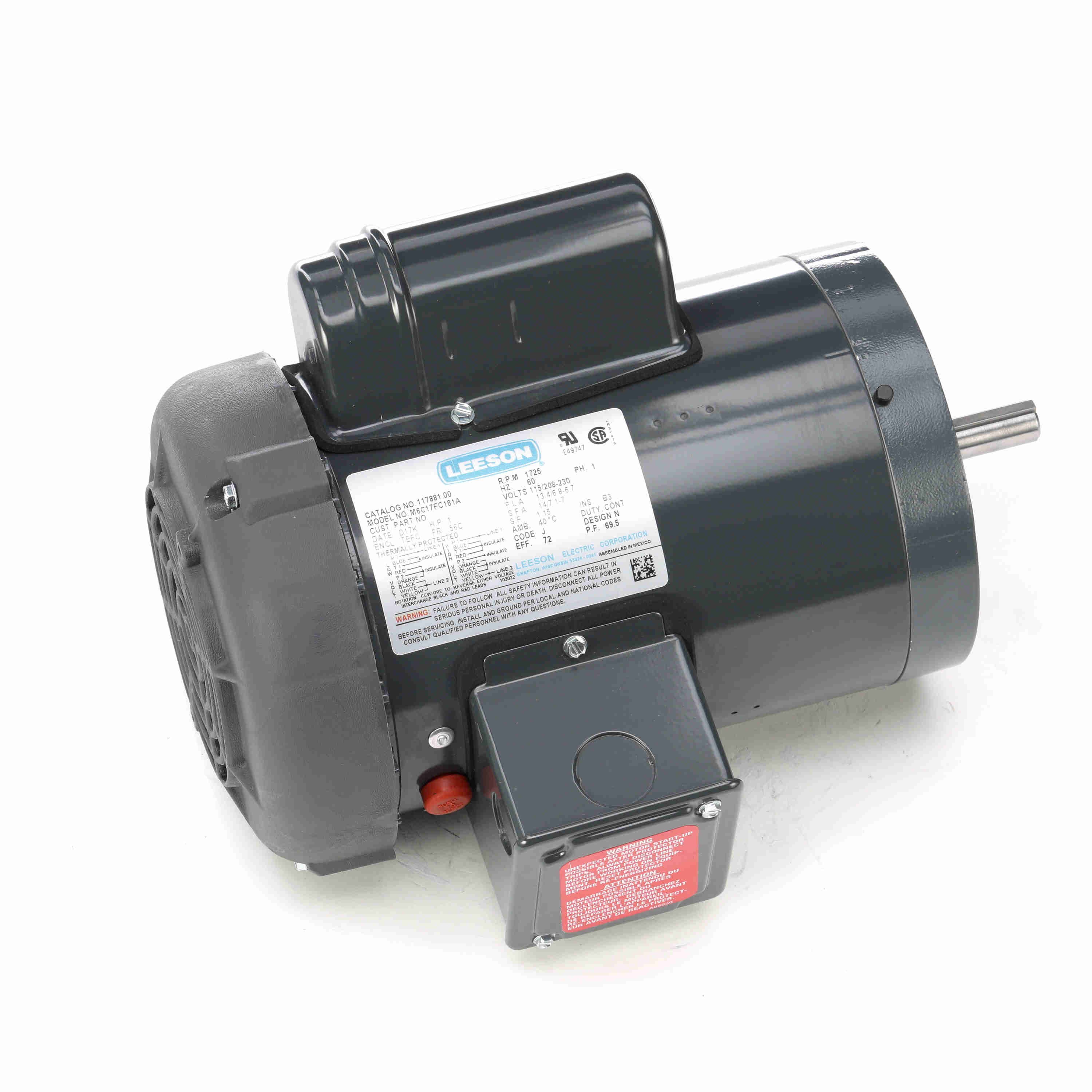

117881.00 | 1 hp | 1725 RPM | Totally Enclosed Air Over | CCW | Capacitor Start | 69.5 | 72% | 13.4/6.7A | €1,104.10 |
