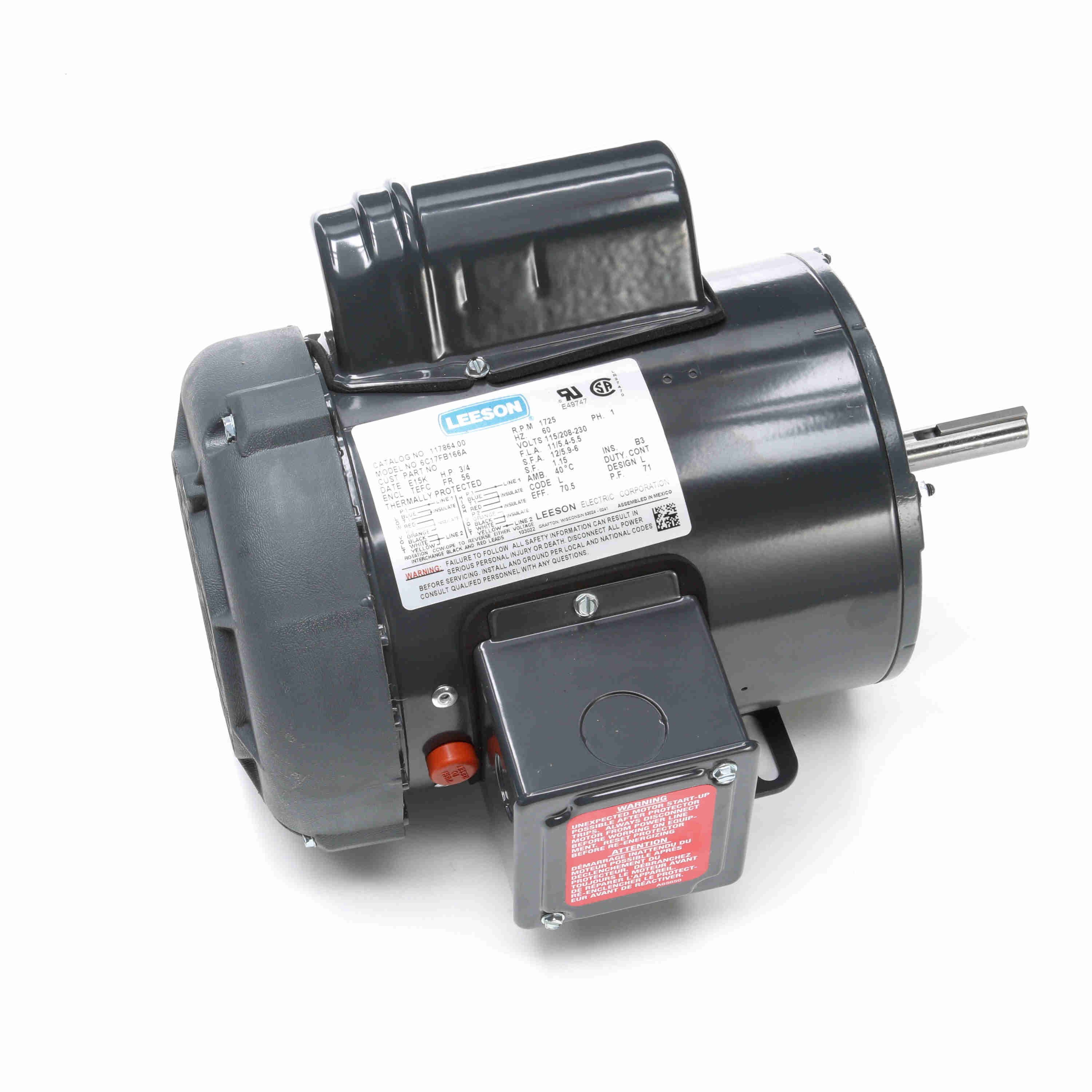

LEESON 117864.00 6C17FB166A Agricultural Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Monday, Jul 6
5.00% off
€795.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Amps | 11/5.5A |
| Code | L |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 70.5% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56 |
| Frame Length | 7 3/5" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 11/5.4-5.5A |
| Height | 9.38" |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 15 1/2" |
| Max. Ambient Temp. | 40°F |
| Max. Speed | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.56 kW |
| Packaging | F |
| Phase | 1 |
| Power | 0.56 kW |
| Power Factor | 71 |
| Product Datasheet | leeson-117864-00.pdf |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Voltage | 115/208-230V |
| Width | 12 1/4" |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - M009087.00
- Eff 100%: 70.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92005-23
- Winding: ZC469
- GROUP: 3
- Paint: GRAY (POWDER)
- S. F Amps: 12 / 5.9-6
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Power Factor | Type | Nema Design | Output Power | Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

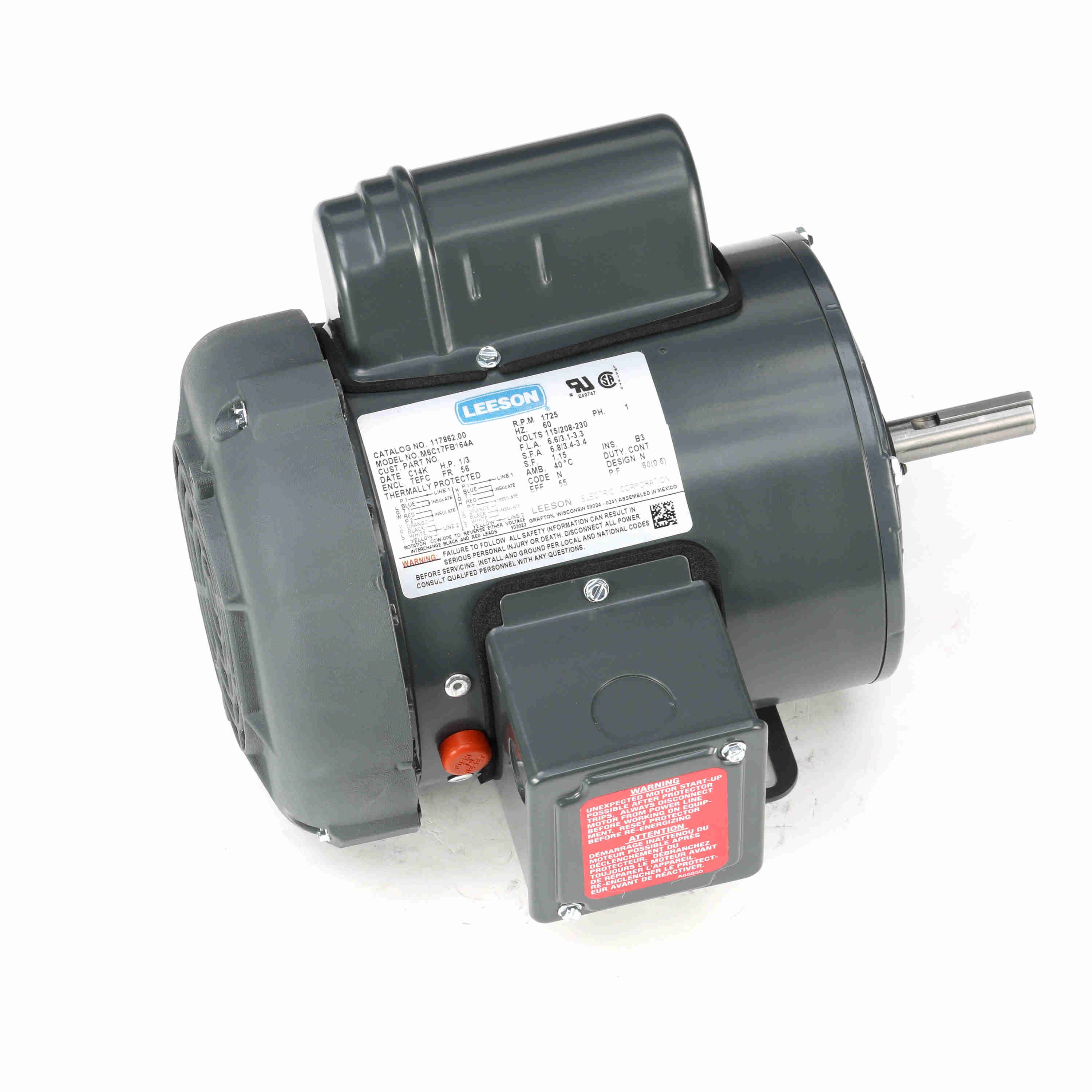

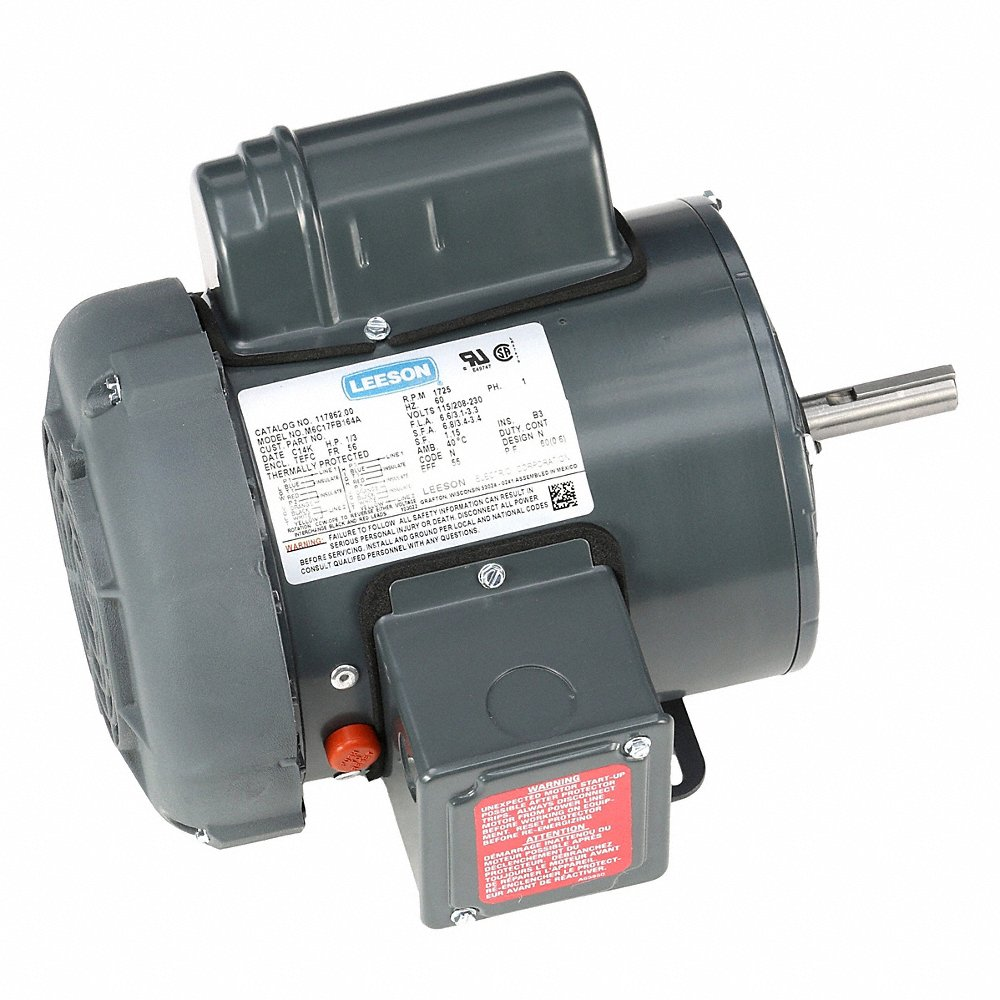

117862.00 | 115/208-230V | 33/100 hp | 56 | 60 | CF | N | 0.25 kW | N | €351.56 | |
 |

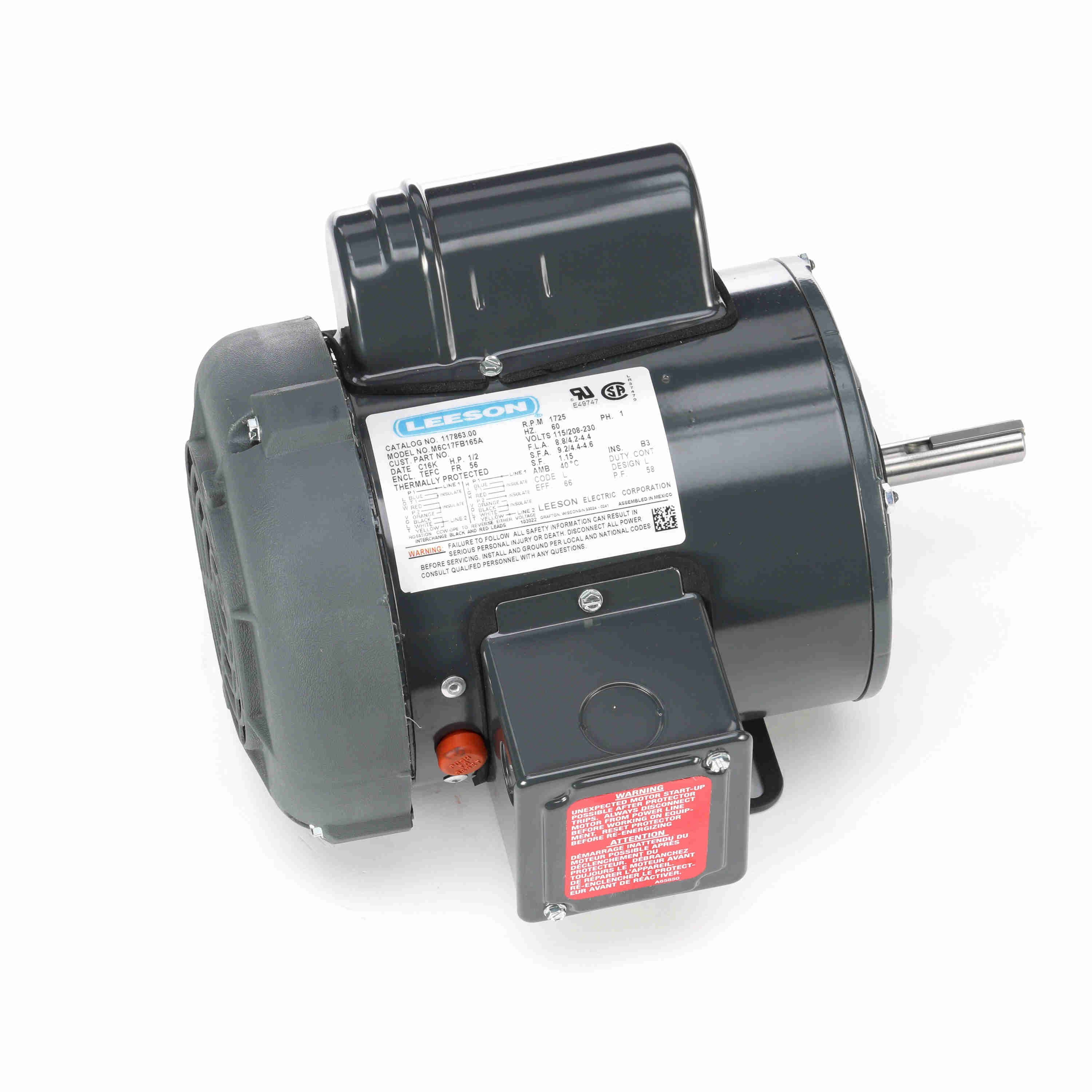

117863.00 | 115/208-230V | 1/2 hp | 56 | 58 | CF | L | 0.37 kW | L | €700.00 | |
 |

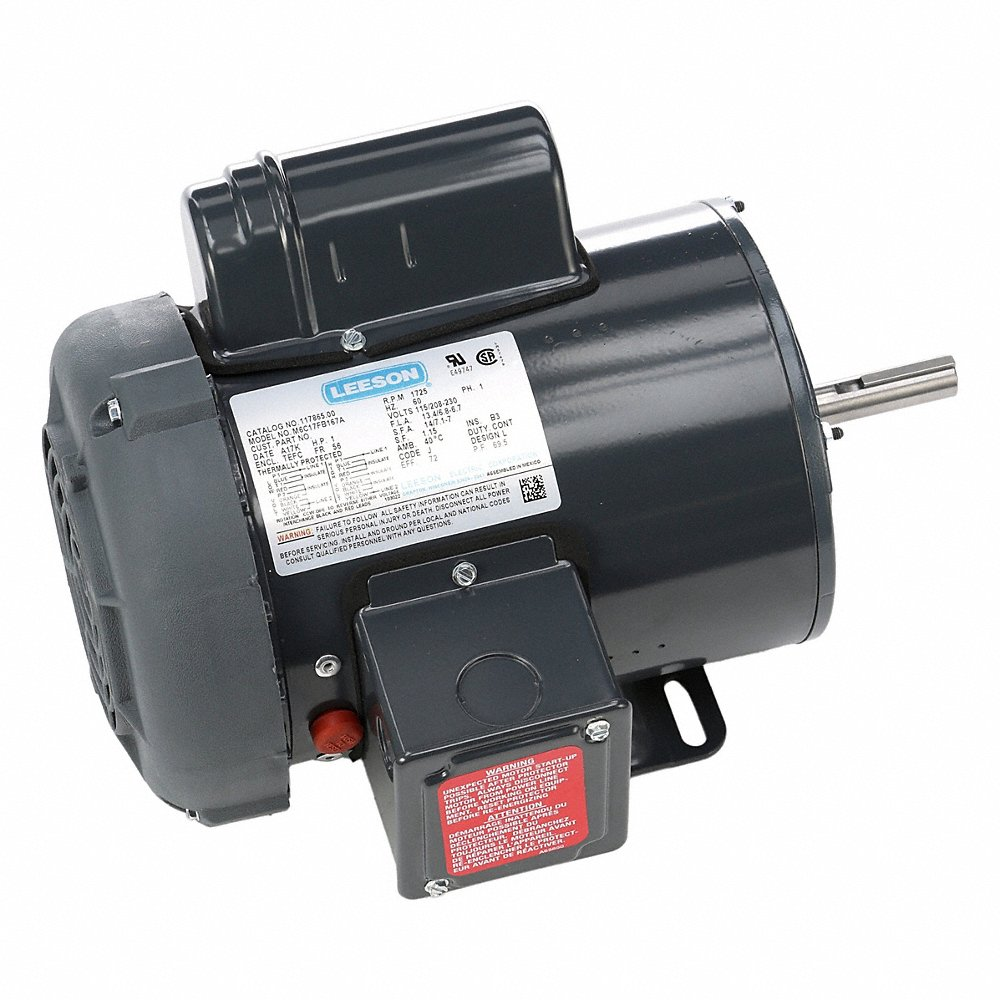

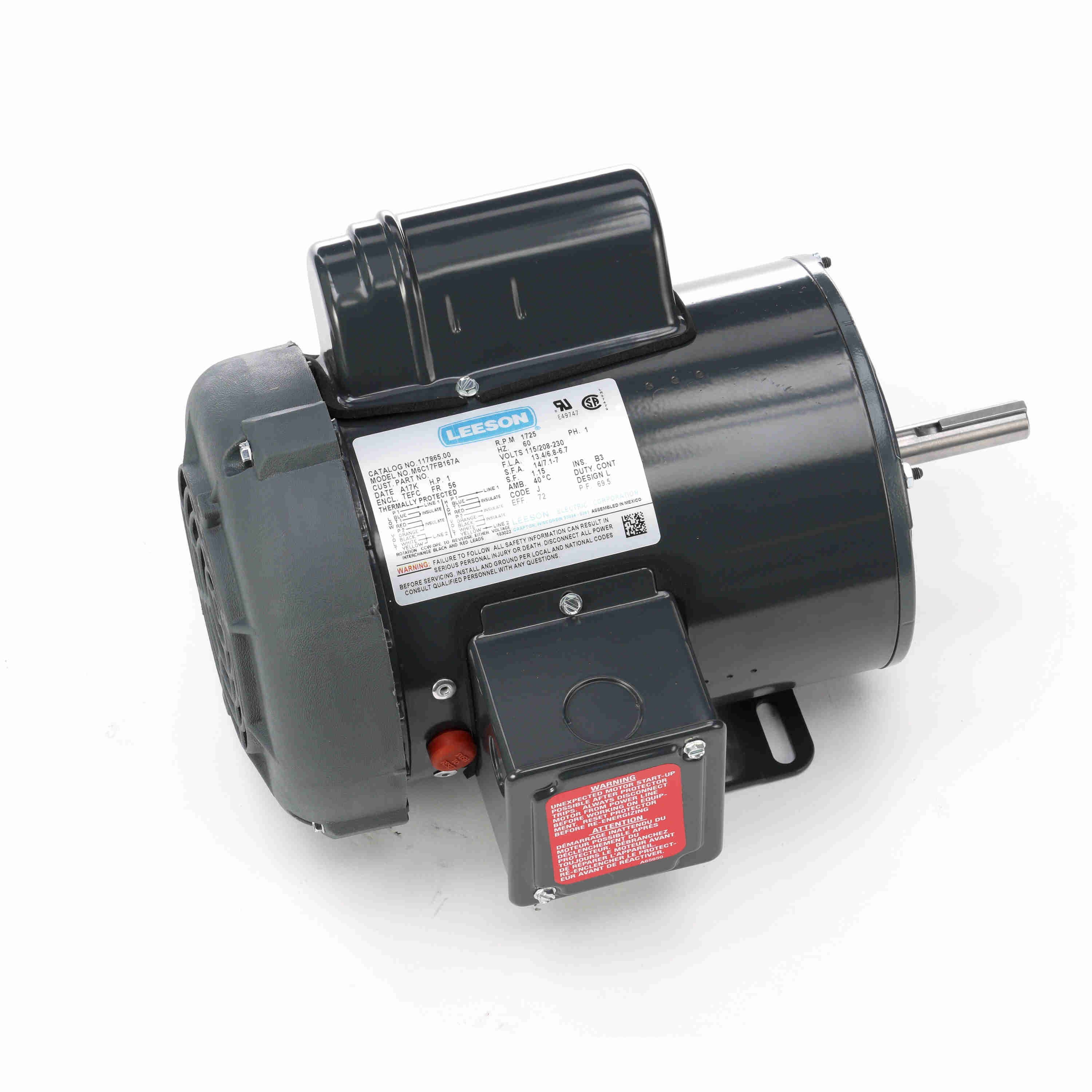

117865.00 | 115/208-230V | 1 hp | 56 | 69.5 | CF | L | 0.75 kW | J | €513.15 | |
 |

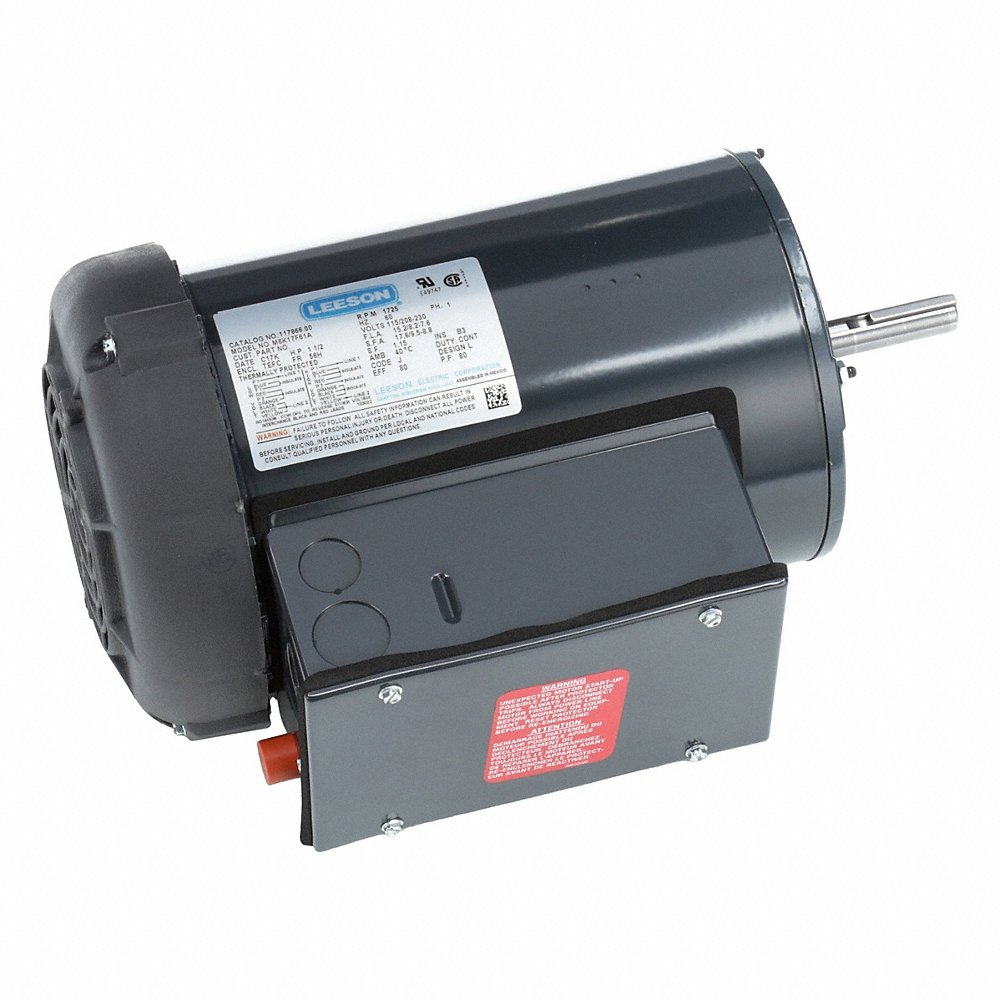

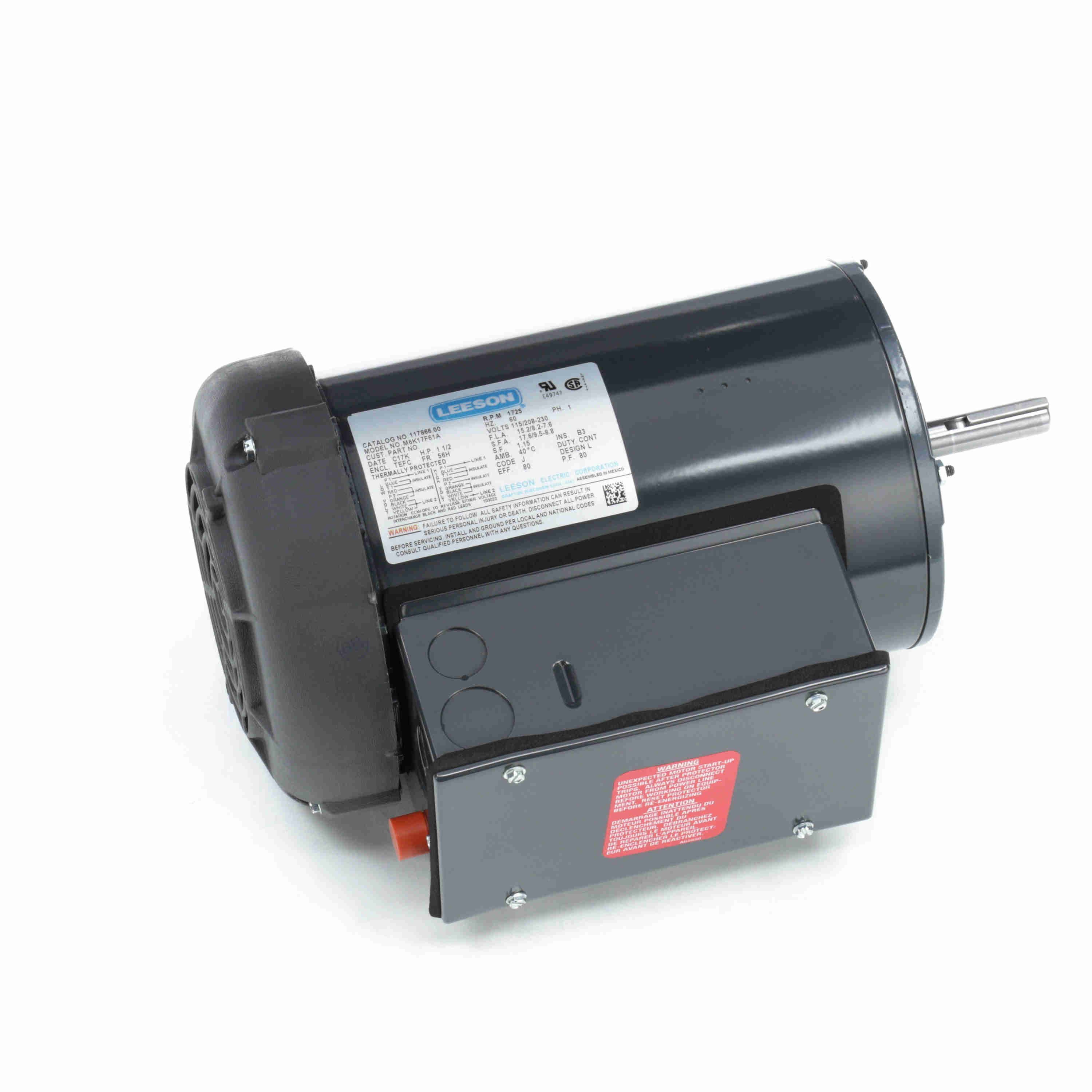

117866.00 | 115/208-230V | 1 1/2 hp | 56H | 80 | KF | L | 1.12 kW | J | €623.97 | |
 |
117867.00 | 115/230V AC | 2 hp | 56HZ | 86.1 | KF | L | 1.49 kW | J | €1,250.28 | |
 |
117760.00 | - | - | - | - | - | - | - | - | €609.71 |
