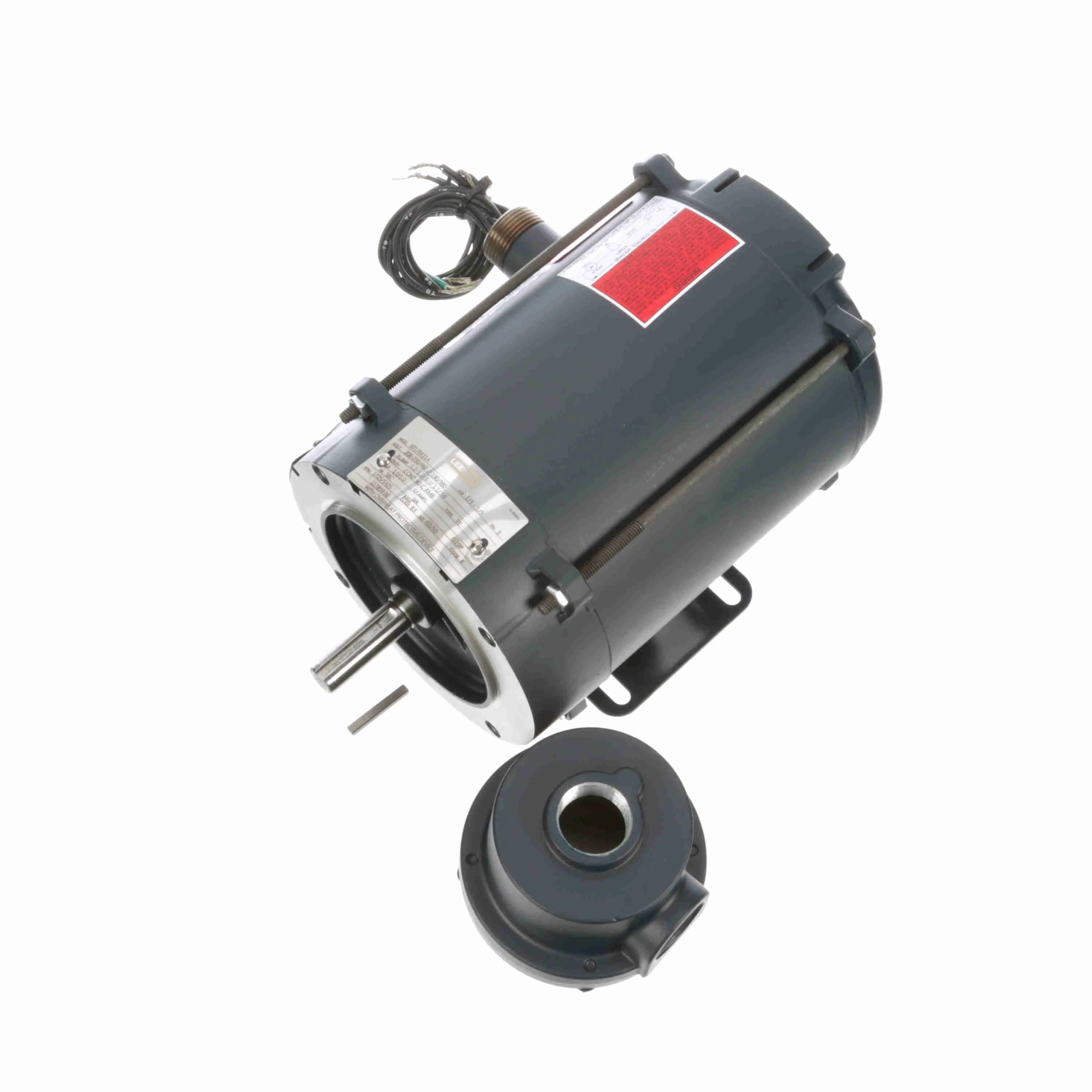

LEESON 117859.00 C6T17EK11A Explosion Proof Motor, 0.33 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Apr 7
€1,024.61 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 1.2/0.6A |
| Code | K |
| Design | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 74.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPNV |
| Frame | 56C |
| Frame Length | 6.31" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.2/0.6A |
| Hazardous Location | EXP Proof CL I GR C&D CL II GR F&G T3C |
| Hazardous Location Class | EXP Proof CL I GR C&D CL II GR F&G T3C |
| Height | 8 3/25" |
| Hp | 33/100 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | K |
| Kw | 0.25 kW |
| Length | 16 3/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.25 kW |
| Packaging | F |
| Phase | 3 |
| Power | 0.25 kW |
| Power Factor | 71 |
| Product Datasheet | leeson-117859-00.pdf |
| Resistance Main | 63.7 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Thermostat |
| Type | TE |
| Voltage | 208-230/460V |
| Width | 10.25" |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Details:
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 93003
- Winding: ZT493
- GROUP: 3
- Paint: BLUE (POWDER)
- Eff 100%: 74.5 / 74
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Frame Material | Service Factor | Enclosure Type | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
825072.00 | 208-230/460V | 7 1/2 hp | 213TC | - | Cast Iron | 1.15 | EPFC | 2 | €2,937.54 | |
 |
825074.00 | 230/460V | 10 hp | 215TC | - | Cast Iron | 1.15 | EPFC | 2 | €3,086.79 | |
 |
825081.00 | 230/460V | 25 hp | 284TC | - | Cast Iron | 1.15 | EPFC | 4 | €5,947.55 | |
 |
825125.00 | 230/460V | 3 hp | 182TC | - | Cast Iron | 1.15 | EPFC | 2 | €1,993.73 | |
 |
825127.00 | 230/460V | 5 hp | 184TC | 3600 RPM | Cast Iron | 1.15 | EPFC | 2 | €1,997.19 |
