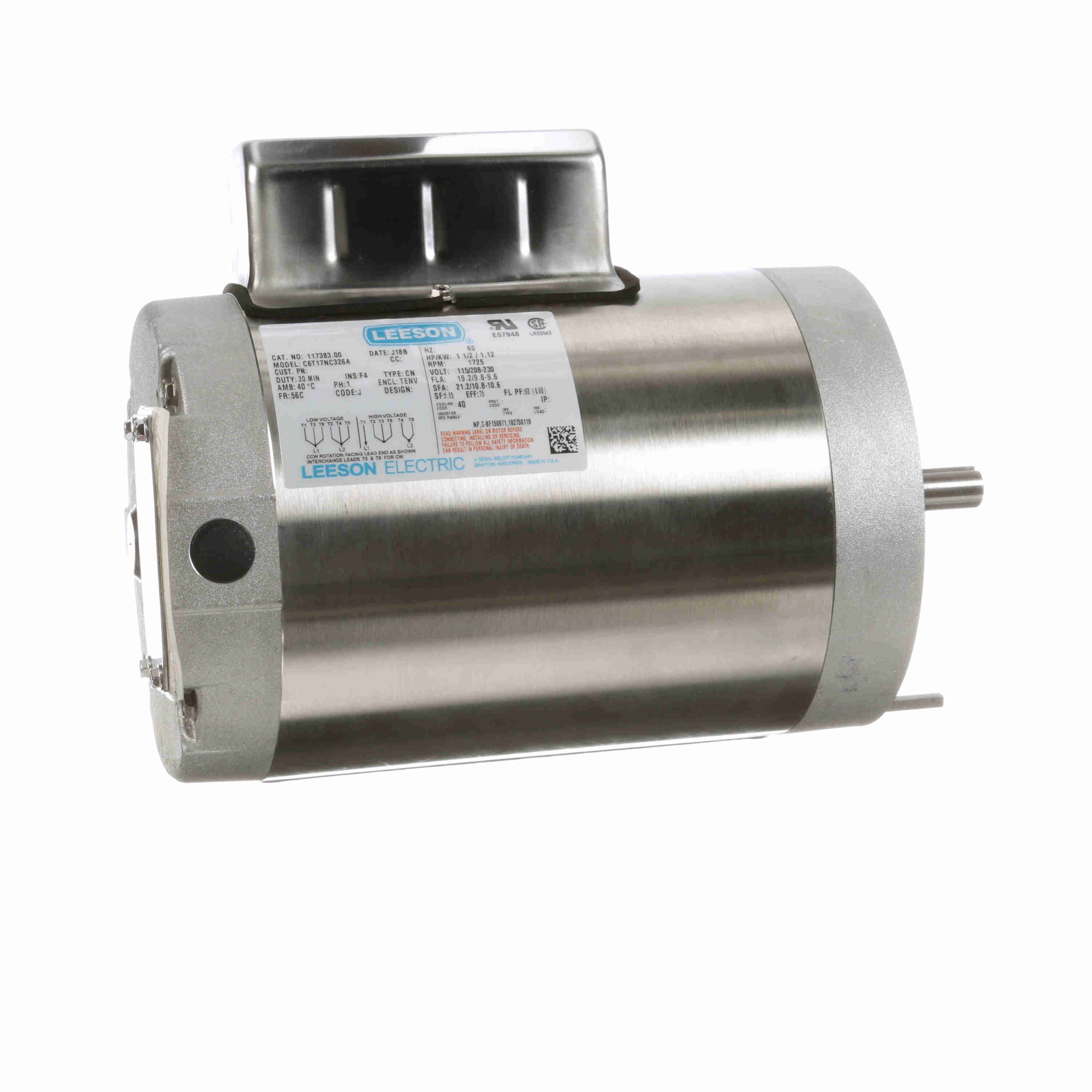

LEESON 117383.00 C6T17NC326A General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Friday, Aug 21
€727.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 19.2/9.6-9.8A |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 7/8" |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | 30 min. |
| Efficiency | 75% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tenv |
| End Shield Material | Stainless Steel |
| Frame | 56C |
| Frame Length | 7 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 19.2/9.8-9.6A |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | J |
| Kw | 1.1 kW |
| Length | 14 11/25" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | None |
| Motor Type | Capacitor Start |
| Mounting Type | Round |
| Nameplate Speed | 1725 RPM |
| No. Of Phase | 1 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 75% |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 12 3/16" |
| Phase | 1 |
| Power Factor | 68 |
| Product Datasheet | leeson-117383-00.pdf |
| Product Type | Washdown Motor |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Width | 7.94" |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 20.17 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
