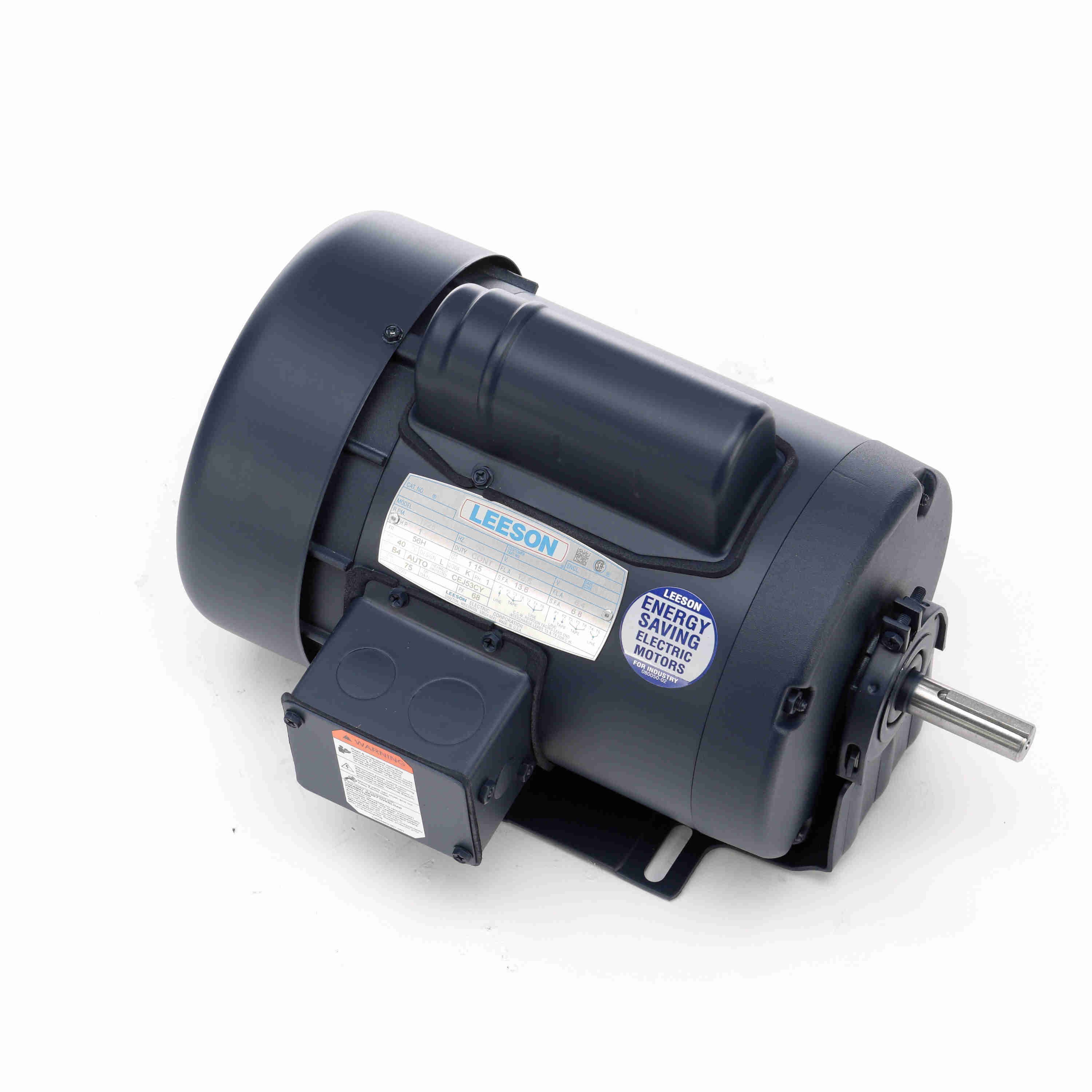

LEESON 111915.00 A6C17FR10G General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Monday, Dec 22
10.00% off
€813.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 12.8/6.4A |
| Assembly | 42588 |
| Bearing Type | Ball |
| Code | K |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56H |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 56H |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 1725 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Shaft Rotation | CCW |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 75% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Overall Length | 12 15/16" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 68 |
| Resistance Main | 1.9 ohms |
| Rpm | 1700-1800 RPM |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | CF |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Weight | 34 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 75
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 004004
- Winding: C634256
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 13.6 / 6.8
