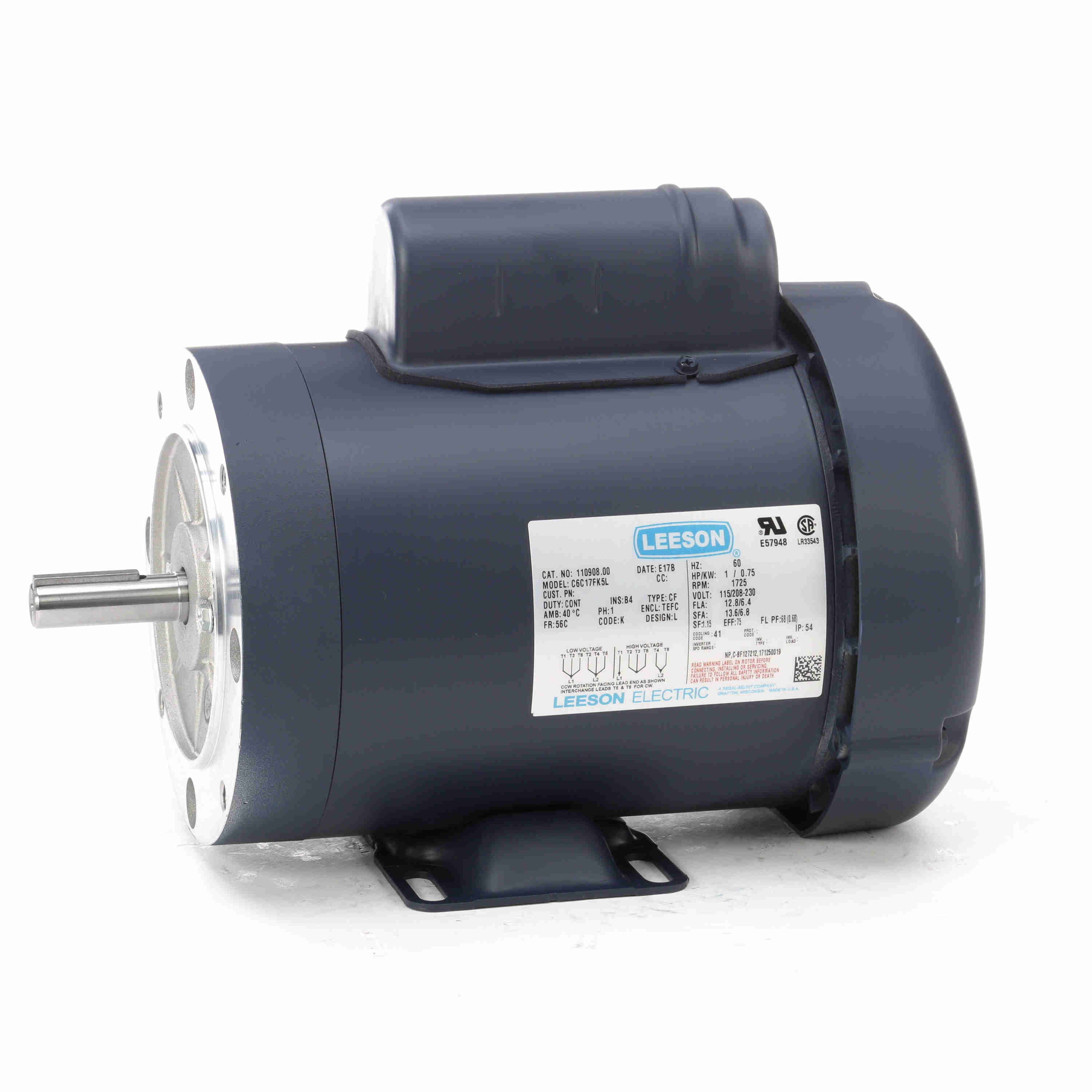

LEESON 110908.00 C6C17FK5L General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Friday, Dec 19
10.00% off
€999.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 12.8/6.4A |
| Code | K |
| De Bearing Size | 6203 |
| De Bearing Type | Ball |
| Design Code | L |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 6 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | K |
| Kw | 0.75 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | K, L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.75 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 68 |
| Resistance Main | 1.9 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Extension | 1.88 |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 75
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: C634256
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 13.6 / 6.8
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Service Factor | Motor Type | Mounting Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102916.00 | 115/208-230V | 1800 RPM | 1/4 hp | 5.4/2.4-2.7A | 1.15 | Capacitor Start | Rigid Base | S56C | €442.74 | |
 |
110180.00 | 115/208-230V | 3600 RPM | 1 hp | 12/6.2-6A | 1.15 | Capacitor Start | Rigid Base | 56C | €557.36 | |
 |
110905.00 | 115/208-230V | 1800 RPM | 3/4 hp | 10.8/5.4A | 1.15 | Capacitor Start | Rigid Base | 56C | €1,007.78 | |
 |
110909.00 | 115/208-230V | 3600 RPM | 1 1/2 hp | 17/8.5A | 1 | Capacitor Start | Rigid Base | 56C | €748.30 | |
 |
110910.00 | 115/208-230V | 1800 RPM | 1 1/2 hp | 17.2/8.8-8.6A | 1 | Capacitor Start | Rigid Base | 56HC | €915.03 | |
 |
112135.00 | 115/208-230V | 3600 RPM | 3/4 hp | 10/5.2-5A | 1.15 | Capacitor Start | Rigid Base | 56C | €505.75 | |
 |
113931.00 | 115/208-230V | 3600 RPM | 2 hp | 20/11.4-10A | 1 | - | Rigid Base | 56HC | €1,298.21 |
