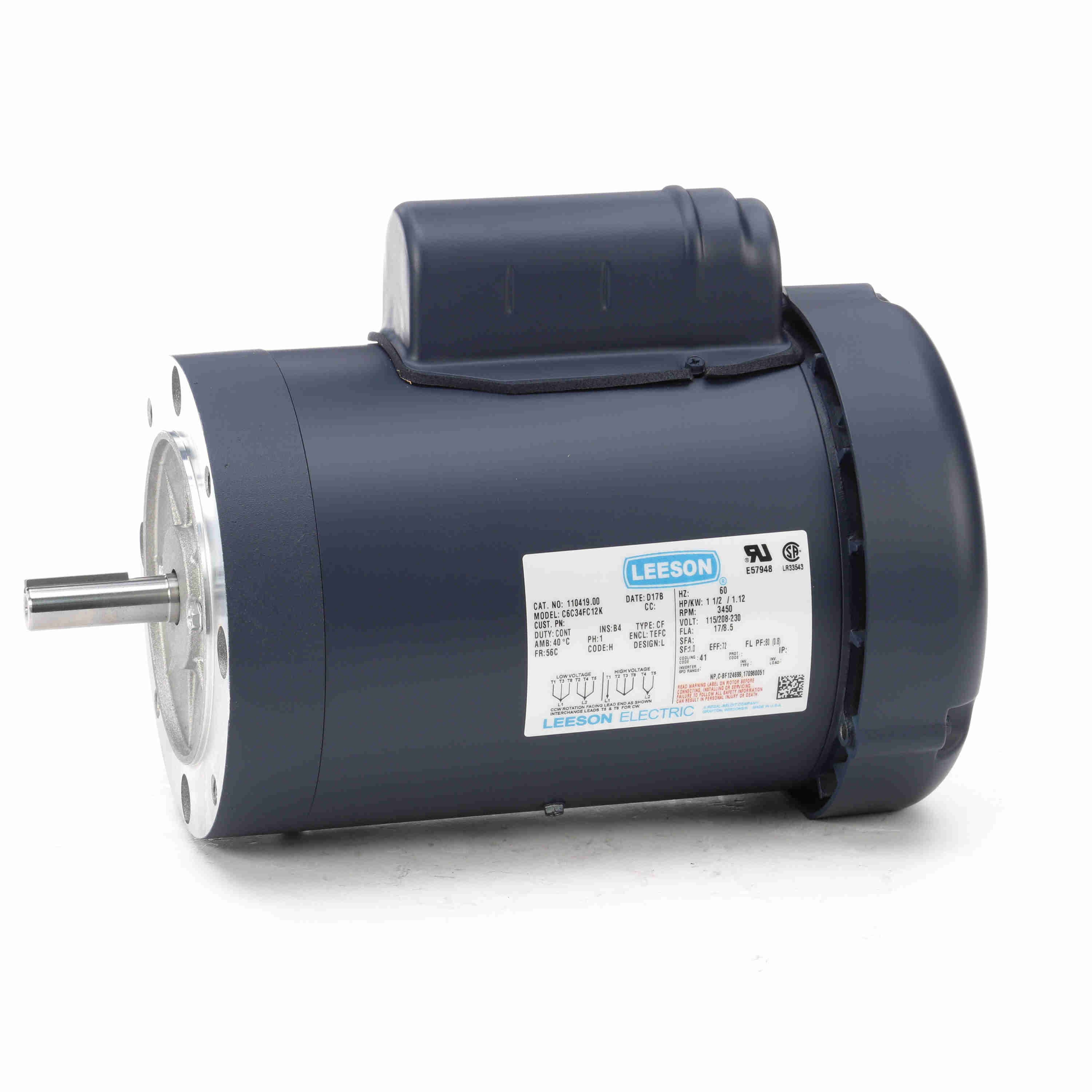

LEESON 110419.00 C6C34FC12K Single Phase Motor | AJ2QCY C6C34FC12K

LEESON 110419.00 C6C34FC12K General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM

Item: AJ2QCYModel: 110419.00Cross Ref: 798KJ9 / C6C34FC12K
Check Availability
In Stock

Get it by Tuesday, Dec 23

€737.71 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 104°F
Amps 17/8.5A
Bearing Type Ball
Code H
Conduit Box Position F1
Design Code L
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 72%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tefc
Frame 56C
Frame Length 7"
Frame Material Rolled Steel
Frame Type 56C
Frequency 60 Hz
Full Load Amps 17/8.5-9A
Grease Type Polyrex EM
Height 10 22/25"
Hp 1 1/2 hp
Hz 60 Hz
Ins. Class Class B
Insulation Class Class B
Ip Code IP43
Kva Code H
Kw 1.1 kW
Length 14 11/25"
Lubrication Polyrex EM
Max. Ambient Temp. 104°F
Max. Rpm 3450 RPM
Motor Application General Application
Motor Bearings Ball
Motor Design Capacitor Start
Motor Enclosure Design Totally Enclosed Air Over
Motor Frame Material Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Orientation Horizontal
Motor Service Factor 1
Motor Shaft Design NEMA 56
Motor Shaft Rotation Counter Clockwise
Motor Type Capacitor Start
Mounting Type Face
Nameplate Rpm 3450 RPM
Nema Design L
No. Of Poles 2
No. Of Speeds 1
Nominal Efficiency 72%
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 1.12 kW
Overall Length 12 1/2"
Packaging B
Phase 1
Power Factor 80
Removable Base Permanently Lubricated Bearings
Resistance Main 1.32 ohms
Rpm 3400-3600 RPM
Rpm Range 3001-3600 RPM
Service Factor 1
Shaft Dia. 5/8"
Shaft Length 1 22/25"
Shaft Type NEMA 56
Standards Csa, Ul
Starting Method Across The Line
Thermal Protection No Protection
Type CF
Usable @ 208v Yes
Voltage 115/208-230V
Weight 34 lbs.
Width 10 11/25"

Shipping Info:

Ship weight (kg) 15.3
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 72
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Nameplate: 993500
    • Winding: C632212
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelVoltageHpFull Load AmpsMounting TypeService FactorNameplate RpmMotor TypeFramePrice
LEESON 101765.00 C4C17FC10C Single Phase Motor | AJ2PMD C4C17FC10C 101765.00115/208-230V1/4 hp5.4/2.4-2.7AC Face, Footless1.151800 RPMCapacitor Start48CZ€678.46
LEESON 101766.00 C4C17FC9C Single Phase Motor | AJ2PME C4C17FC9C 101766.00115/208-230V33/100 hp6.6/2.9-3.3AFace1.151725 RPMCapacitor StartS56C€416.65
LEESON 102864.00 C4C34FC12B Single Phase Motor | AJ2PNZ C4C34FC12B 102864.00115/208-230V1/2 hp7/3.4-3.5AFace1.153450 RPMCapacitor StartS56C€417.09
LEESON 102865.00 M4C17FC33B Single Phase Motor | AJ2PPA M4C17FC33B 102865.00115/208-230V1/2 hp8/3.8-4AC Face, Footless1.15--56C€821.61
LEESON 102868.00 C4C17NC26B Single Phase Motor | AJ2PPD C4C17NC26B 102868.00115/208-230V1/4 hp4.6/2.4-2.3AC Face, Footless1.151800 RPMCapacitor StartS56C€432.70
LEESON 102869.00 M4C17NC27B Single Phase Motor | AJ2PPE M4C17NC27B 102869.00115/208-230V33/100 hp5.2/2.6AC Face, Footless1.151800 RPM-S56C€489.02
LEESON 102872.00 M4C34FC14B Single Phase Motor | AJ2PPH M4C34FC14B 102872.00115/208-230V1/2 hp7/3.4-3.5AC Face, Footless1.153600 RPMCapacitor StartS56C€688.06
