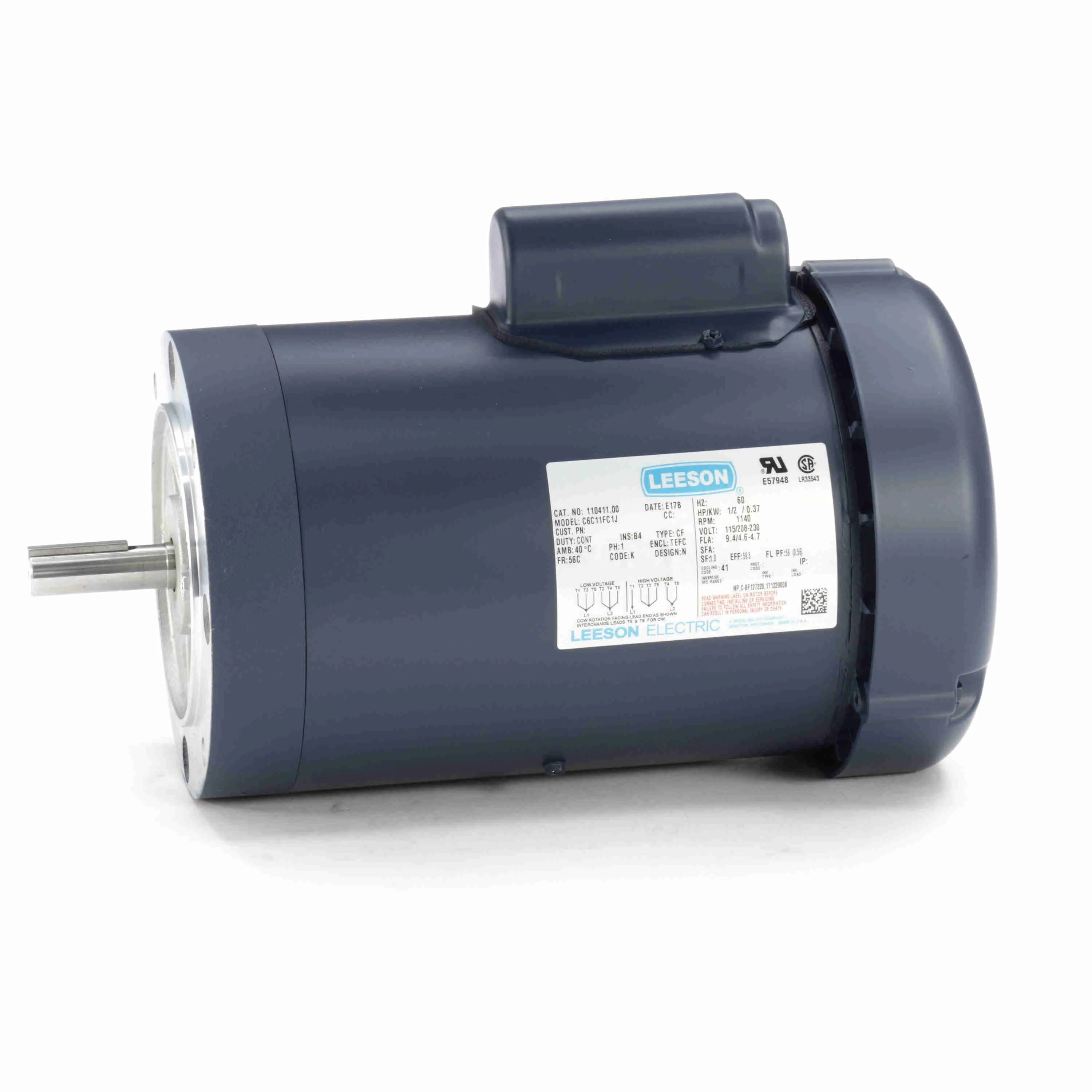

LEESON 110411.00 C6C11FC1J General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Monday, Apr 6
€945.14 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 9.4/4.7A |
| Code | K |
| Conduit Box Position | F1 |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 9.4/4.6-4.7A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 14 11/25" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1140 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1200 RPM |
| Nema Design | K, N |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 53.5 |
| Product Datasheet | leeson-110411-00.pdf |
| Resistance Main | 3.84 ohms |
| Rpm | 1100-1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Voltage | 115/208-230V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 59.5
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: C63639
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Full Load Amps | Mounting Type | Service Factor | Nameplate Rpm | Motor Type | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110418.00 | 115/208-230V | 1 1/2 hp | 17/8.5A | C Face, Footless | 1 | 3600 RPM | Capacitor Start | 56C | €1,055.18 | |
 |
131540.00 | 230V | 5 hp | 23A | C Face, Footless | 1 | 1800 RPM | Capacitor Start/Run | 184TC | €1,586.94 | |
 |
131778.00 | 230V | 5 hp | 19.8A | C Face, Footless | 1.15 | 3600 RPM | Capacitor Start/Run | 184TC | €1,467.48 |
