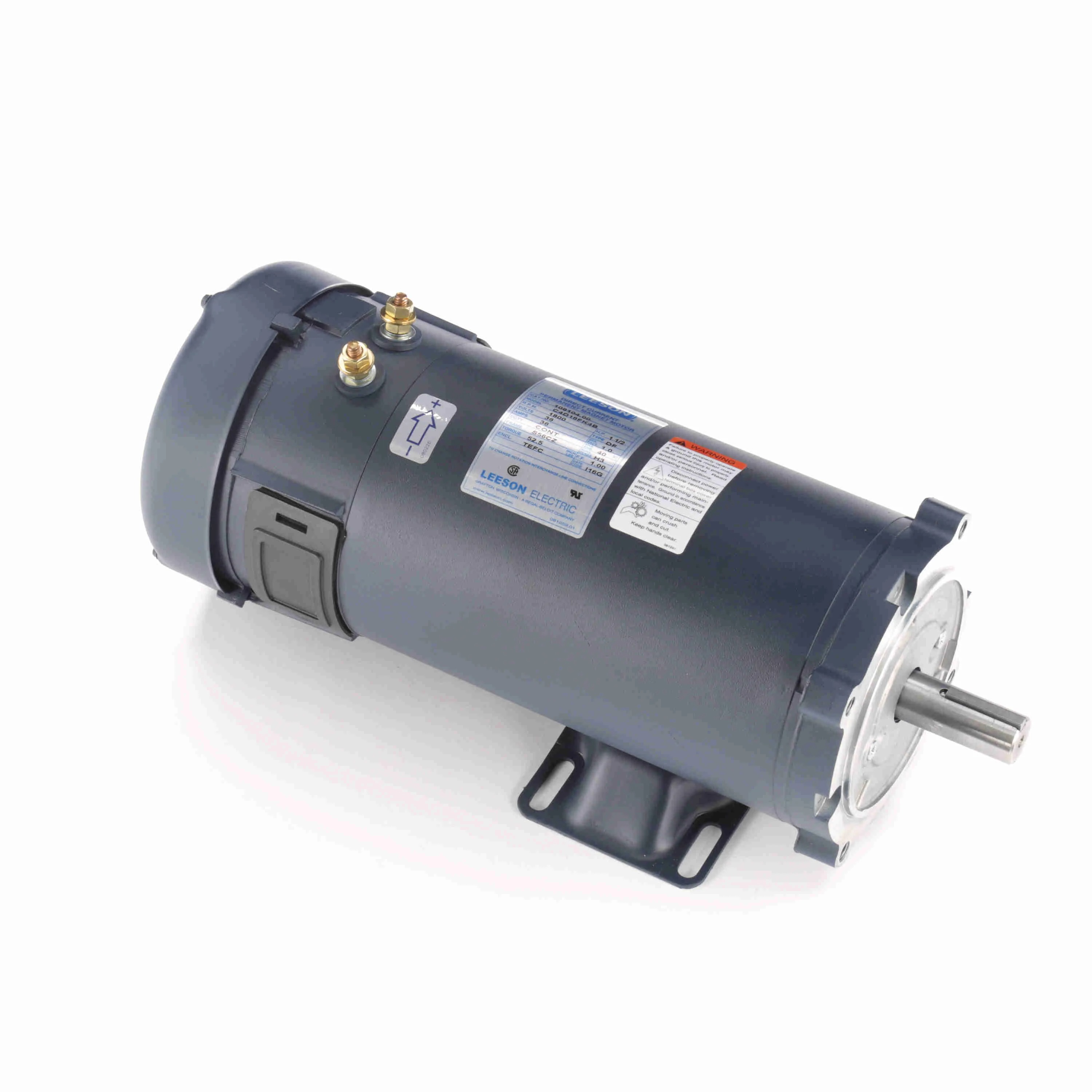

LEESON 109104.00 C4D18FK4B Low Voltage Motor, 1.50 HP, 36V, 1800 RPM
Get it by Thursday, Aug 20
€1,406.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 36A |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.4% |
| Enclosure Type | Tefc |
| Form Factor | 1 |
| Frame | 56C |
| Frame Length | 8.47" |
| Frame Type | S56CZ |
| Full Load Torque | 52.5 lbs.-in. |
| Full Load Torque | 52.5 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class H |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1800 RPM |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW, CCW |
| Mounting | C Face, Rigid Base |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1800 RPM |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | PG659401.04Z |
| Power | 1.1 kW |
| Product Datasheet | leeson-109104-00.pdf |
| Rotation | Reconn |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.13" |
| Speed | 1700-1800 RPM |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 36V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 82.4%
- Nameplate: 081259
- Winding: D56267
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Amps | Mounting Type | Type | Power | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098381.00 | 36V | 1/2 hp | 5/8" | 13.5A | Rigid Base | DF | 0.37 kW | 2.06" | €228.13 | |
 |
098382.00 | 48V | 1/2 hp | 5/8" | 11A | Rigid Base | DF | 0.37 kW | 2.06" | €709.62 | |
 |
108045.00 | 12V | 1/4 hp | 5/8" | 21A | Face, Base | DN | 0.19 kW | 2.06" | €1,034.49 | |
 |
108046.00 | 12V | 33/100 hp | 5/8" | 27A | Face, Base | DN | 0.25 kW | 2.06" | €1,190.91 | |
 |
108047.00 | 12V | 1/2 hp | 5/8" | 39A | Rigid Base | DN | 0.37 kW | 2.06" | €1,260.48 | |
 |
108048.00 | 12V | 3/4 hp | 5/8" | 58A | Rigid Base | DF | 0.56 kW | 2.06" | €889.75 | |
 |
108050.00 | 24V | 33/100 hp | 5/8" | 13.5A | Rigid Base | DN | 0.25 kW | 2.06" | €1,164.66 |
