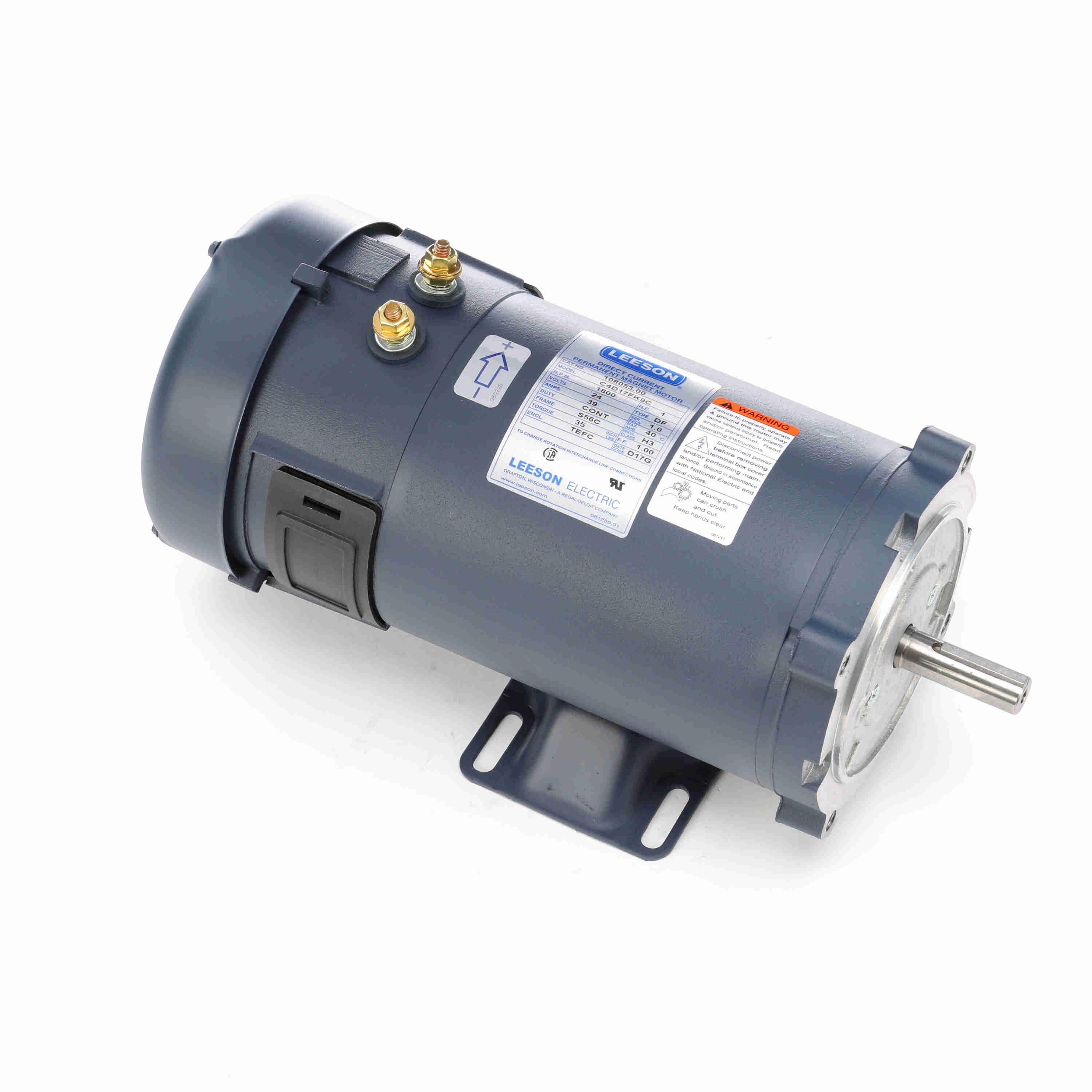

LEESON 108053.00 C4D17FK9E Low Voltage Motor, 1 HP, 24V, 1800 RPM
Get it by Wednesday, Dec 24
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 39A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 81.3% |
| Enclosure Type | Tefc |
| Form Factor | 1 |
| Frame | 56C |
| Frame Length | 6.47" |
| Frame Type | S56C |
| Full Load Amps | 39A |
| Full Load Torque | 35 in.-lbs. |
| Full Load Torque | 35 lbs.-in. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 hp |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Kw | 0.75 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 7/8" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1800 RPM |
| Min. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting | Rigid C Base |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| No. Of Studs | 4 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Hp | 1 Hp |
| Output Power | 0.75 kW |
| Overall Length | 13 13/16" |
| Packaging | PG659401.04Z |
| Power | 0.75 kW |
| Removable Base | Yes |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Extension | 2.06" |
| Shaft Extension (in.) | 2.06" |
| Shaft Length | 2.06" |
| Stud Size | 3/8"-16 |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 24V |
| Weight | 22 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
Leeson 108053.00 C4D17FK9 DC motor provides consistent speed across a wide range, aiding in accurate positioning and process control. This motor is ideal for battery-operated vehicles and medical equipment. It finds its utility in conveyor systems, robotics and machine tools due to its adjustable performance characteristics.
Frequently Asked Questions:
Q. How does a direct current motor achieve speed control?
A. Speed control is achieved by adjusting the voltage supplied to the motor. Lower voltage results in slower speeds, while higher voltage increases speed.
Q. Can the motor direction be easily reversed?
A. Yes, by changing the polarity of current flow through the armature coils, the motor's rotation direction can be reversed.
Q. What maintenance is required for this motor?
A. Regular inspection of the brushes and commutator is recommended to ensure smooth operation. Brush replacement might be necessary over time.
Product Variants
| Product | Model | Voltage | Hp | Mounting Type | Shaft Dia. | Efficiency | Full Load Torque | Type | Shaft Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098381.00 | 36V | 1/2 hp | Rigid Base | 5/8" | 74.1% | 17.5 lbs.-in. | DF | 2.06" | €228.13 | |
 |
098382.00 | 48V | 1/2 hp | Rigid Base | 5/8" | 76.5% | 18 lbs.-in. | DF | 2.06" | €709.62 | |
 |
108045.00 | 12V | 1/4 hp | Face/Base | 5/8" | 72.1% | 8.75 lbs.-in. | DN | 2.06" | €1,076.54 | |
 |
108046.00 | 12V | 33/100 hp | Face/Base | 5/8" | 70.1% | 11.7 lbs.-in. | DN | 2.06" | €1,171.82 | |
 |
108047.00 | 12V | 1/2 hp | Rigid Base | 5/8" | 83.6% | 17.5 lbs.-in. | DN | 2.06" | €1,241.73 | |
 |
108048.00 | 12V | 3/4 hp | Rigid Base | 5/8" | 79.9% | 26.3 lbs.-in. | DF | 2.06" | €889.75 | |
 |
108050.00 | 24V | 33/100 hp | Rigid Base | 5/8" | 70.3% | 11.7 lbs.-in. | DN | 2.06" | €1,155.22 |
