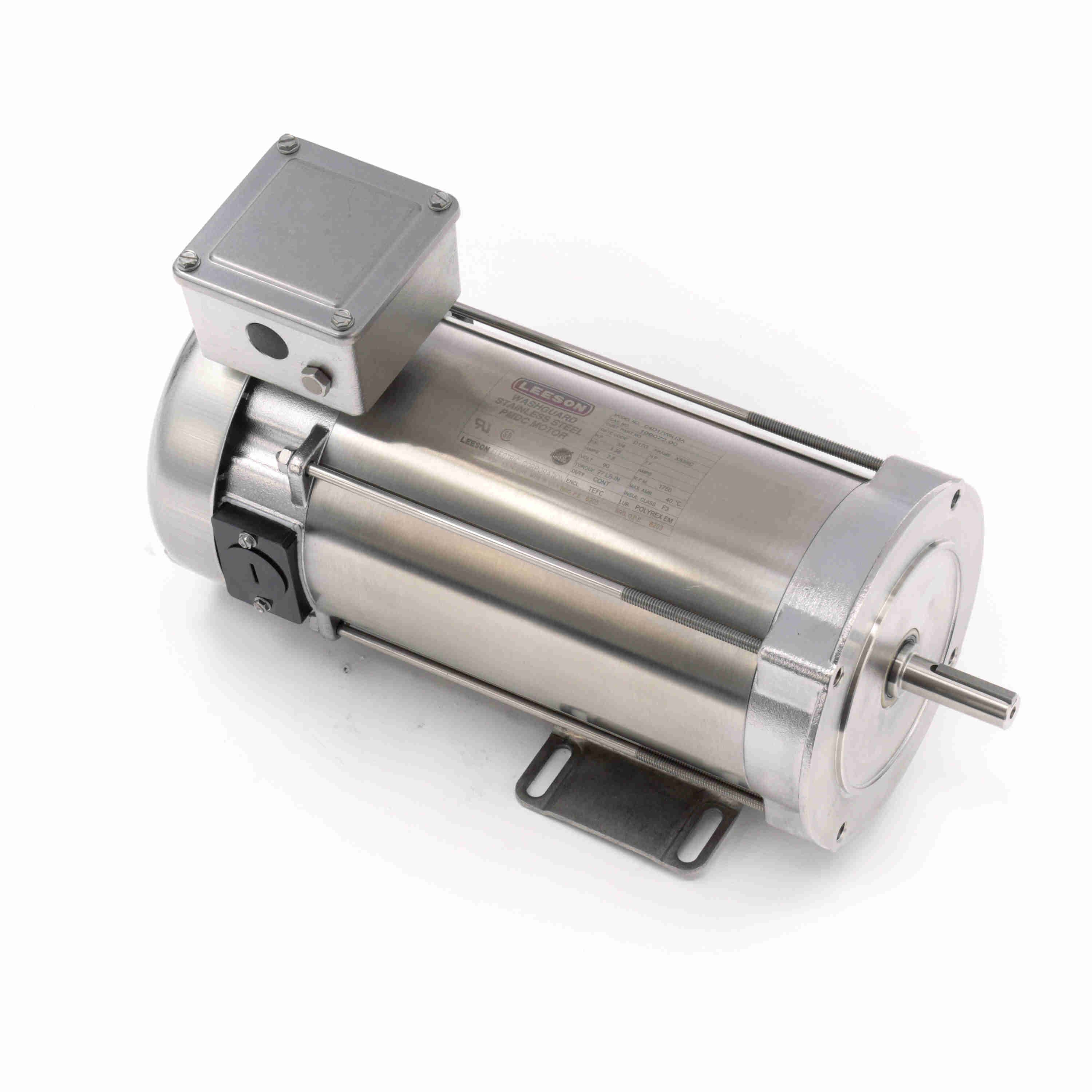

LEESON 109072.00 C4D17WK13A Washdown Motor, 0.75 HP, 90V, 1750 RPM
Get it by Tuesday, Dec 23
10.00% off
€3,059.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 7.5A |
| Application | Washdown |
| Assembly | 40023 |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.2% |
| Enclosure Type | Tefc |
| Finish | Unfinished |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 8 3/4" |
| Frame Material | Stainless Steel |
| Frame Type | XS56C |
| Full Load Amps | 7.5A |
| Full Load Torque | 27 lbs.-in. |
| Full Load Torque | 27 in.-lbs. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.56 kW |
| Length | 19 1/2" |
| Length Less Shaft | 13 7/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet Dc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.2% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 15 3/8" |
| Packaging | PG659401.04A |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.05" |
| Thermal Protection | No Protection |
| Type | DF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V |
| Weight | 54 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 24.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 86.2%
- Nameplate: 08113201
- Winding: D552643
- GROUP: 1 B
- Sub Group: B
