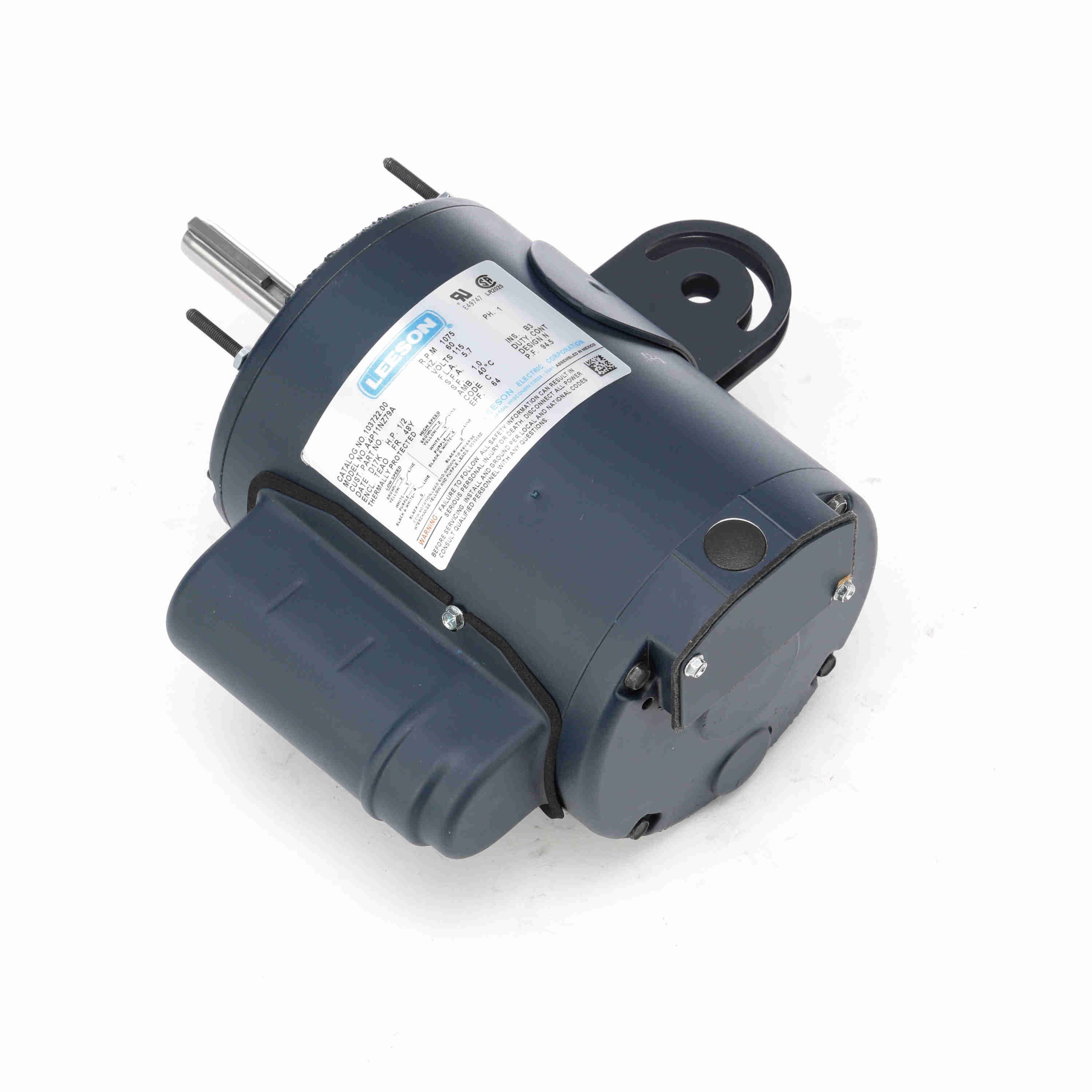

LEESON 103722.00 A4P11NZ79A Pedestal Fan Motor, 0.50 HP, 1 Phase, 60 Hz, 115V, 1200 RPM
Get it by Tuesday, Feb 17
10.00% off
€559.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | C |
| Design | C, N |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 5.7A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Round Swing Arm |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Round Swing Arm |
| Nameplate Rpm | 1075 RPM |
| No. Of Speeds | 1 |
| Output Kw | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 94.5 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 5/9" |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 191912.00 / A4P11NZ31A
- Eff 100%: 64
- Eff 75%: 61.3
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-187
- Winding: PE4861981
- GROUP: 1
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Shaft Length | Design | Power Factor | Code | Motor Enclosure Design | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103720.00 | 115-230V | 1625 RPM | 2 14/25" | B, N | 93.5 | B | Totally Enclosed Air Over | 1 | €338.47 |
