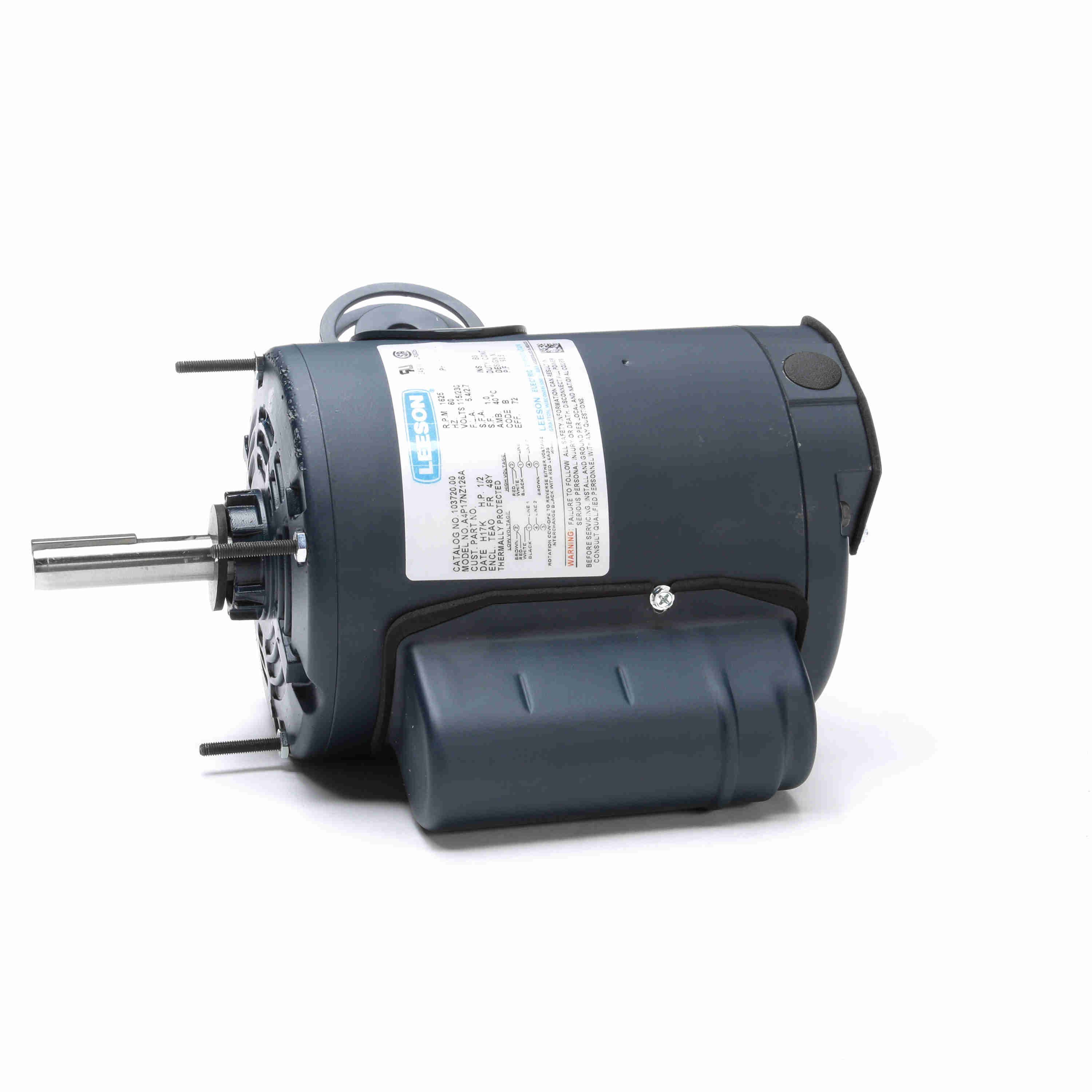

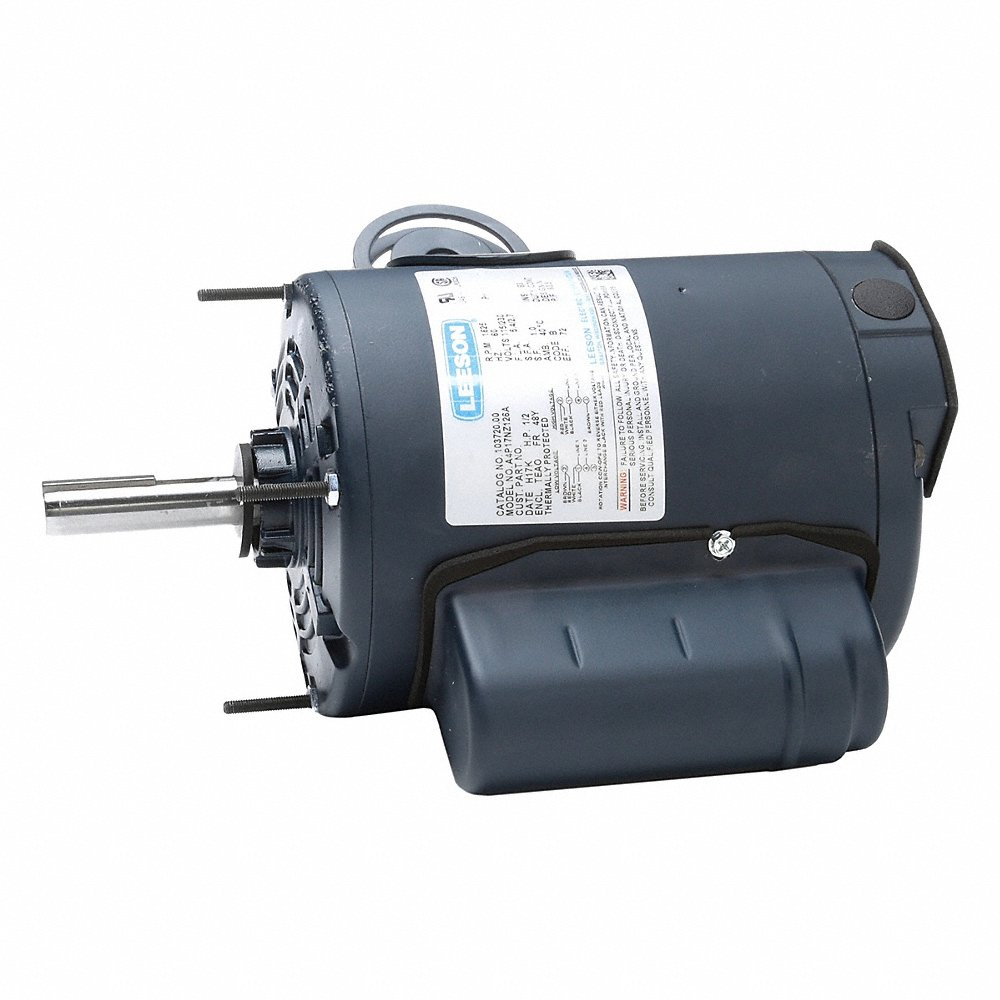

LEESON 103720.00 A4P17NZ126A Pedestal Fan Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Monday, Dec 22
€338.47 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 5.4/2.7A |
| Code | B |
| Design | B, N |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 72% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Teao |
| Frame | 48Y |
| Frame Length | 6 1/4" |
| Frame Material | Rolled Steel |
| Frame Type | 48YZ |
| Frequency | 60 Hz |
| Grease Type | Multemp SRL |
| Height | 9.38" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kw | 0.37 kW |
| Length | 15 1/2" |
| Lubrication | Multemp SRL |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Type | Round Swing Arm |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Round Swing Arm |
| Nameplate Rpm | 1625 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 93.5 |
| Rpm | 1625 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 14/25" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115-230V |
| Width | 12 1/4" |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
Product Details:
- Supersedes Leeson - 191875.00 / A4P17NZ68A
- Eff 100%: 72
- Eff 75%: 70
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 92005-185
- Winding: PE484278
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Shaft Length | Design | Power Factor | Code | Motor Enclosure Design | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103722.00 | 115V AC | 1075 RPM | 2 5/9" | C, N | 94.5 | C | Totally Enclosed Air Over | 1 | €621.19 |
