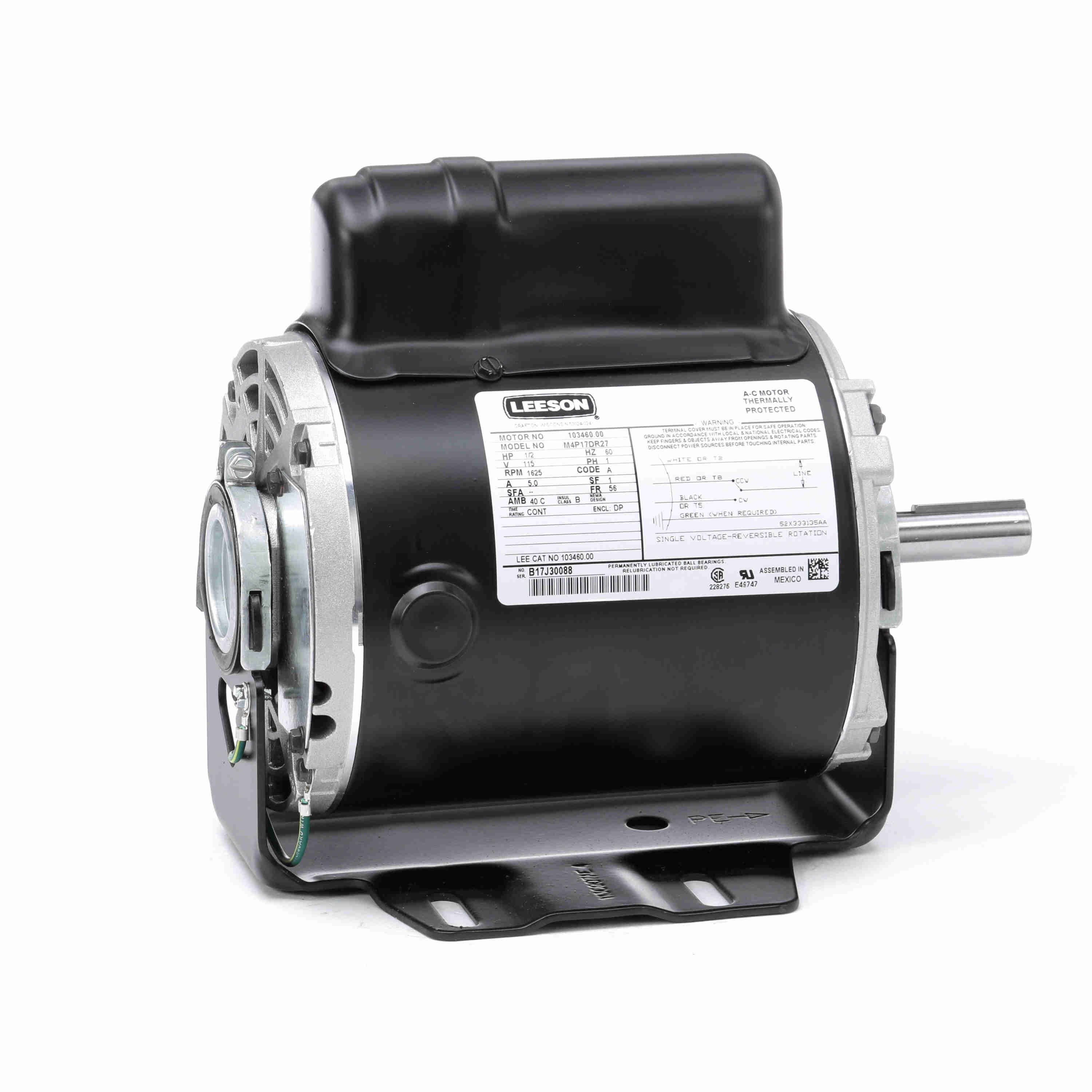

LEESON 103460.00 Instant Reversing Motor, 1 Phase
Get it by Friday, Jul 3
€407.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Instant Reverse Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 1/8" |
| Conduit Box Location | Interior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Enclosure Type | ODP |
| Extended Thru Bolts | No |
| Frame | 56 |
| Frame Material | Steel |
| Frame Type | 56F |
| Frequency | 60 Hz |
| Full Load Amps | 5A |
| Hp | 1/2 hp |
| Included | Key |
| Insulation Class | Class B |
| Length Less Shaft | 8 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Garage/Gate Opener |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Thermal Protection | Manual |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 2" |
| Mounting Type | Cradle Base |
| Nameplate Speed | 1625 RPM |
| No. Of Speeds | 1 |
| No. Of Wires | 3 |
| Nominal Efficiency | 63% |
| Overall Length | 9 15/16" |
| Phase | 1 |
| Product Datasheet | leeson-103460-00.pdf |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1625 RPM |
| Standards | Csa, Ul Recognized |
| Stud Length | 2 |
| Stud Length | #8-32 |
| Thermal Protection | Manual |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.57 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Hp | Frame | Motor Enclosure Design | Mounting Type | Service Factor | Frame Material | Overall Length | Nominal Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
5KC35GNA488 | 1/4 hp | 48 | Open Dripproof | Rigid Base | 1.35 | Steel | 9 9/16" | 52.6% | €643.46 | |
![]() |
102021.00B | 1/2 hp | S56C | Dripproof | Round | 1 | Rolled Steel | - | 51% | €1,521.64 | |
![]() |
111080.00 | - | - | - | - | - | - | - | - | €1,115.16 | |
![]() |
5KC46GN0251 | 1/2 hp | 56 | Open Dripproof | Rigid Base | 1.25 | Steel | 10 3/4" | 52.5% | €687.72 | |
![]() |
5KC46LN0252 | - | - | - | - | - | - | - | - | €799.46 | |
![]() |
103794.00 | - | - | - | - | - | - | 10 13/16" | - | €548.69 |
