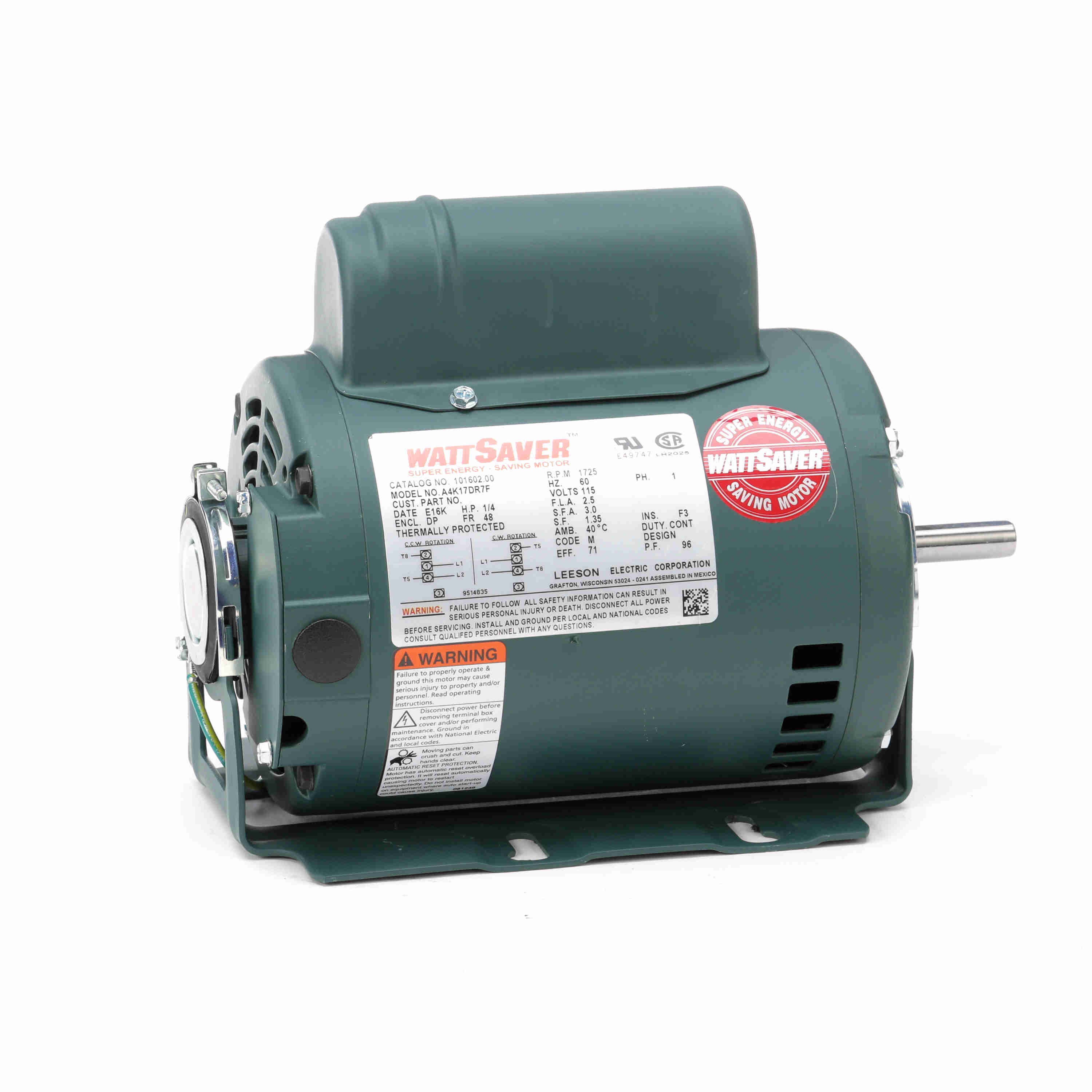

LEESON 101602.00 A4K17DR7F Fan and Blower Motor, 0.25 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Tuesday, Dec 23
€439.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 2.5A |
| Assembly | LO101602 |
| Code | M |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 71% |
| Electrical Type | Split Phase Start, Capacitor Run |
| Enclosure Type | ODP |
| Frame | 48Z |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 2.5A |
| Height | 9 3/25" |
| Hp | 1/4 hp |
| Insulation Class | Class F |
| Ip Code | IP22 |
| Kva Code | M |
| Kw | 0.19 kW |
| Length | 16 3/25" |
| Max. Rpm | 1725 RPM |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Type | Resilient Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | M |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.187 kW |
| Packaging | B |
| Phase | 1 |
| Power | 0.187 kW |
| Power Factor | 96 |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | NEMA 48 |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Type | None |
| Voltage | 115V |
| Width | 10.25" |
Shipping Info:
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 3.0
- Eff 100%: 71
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92005-103
- Winding: BE48469
- GROUP: 1
- Paint: GREEN - LEESON WATTSAVER
