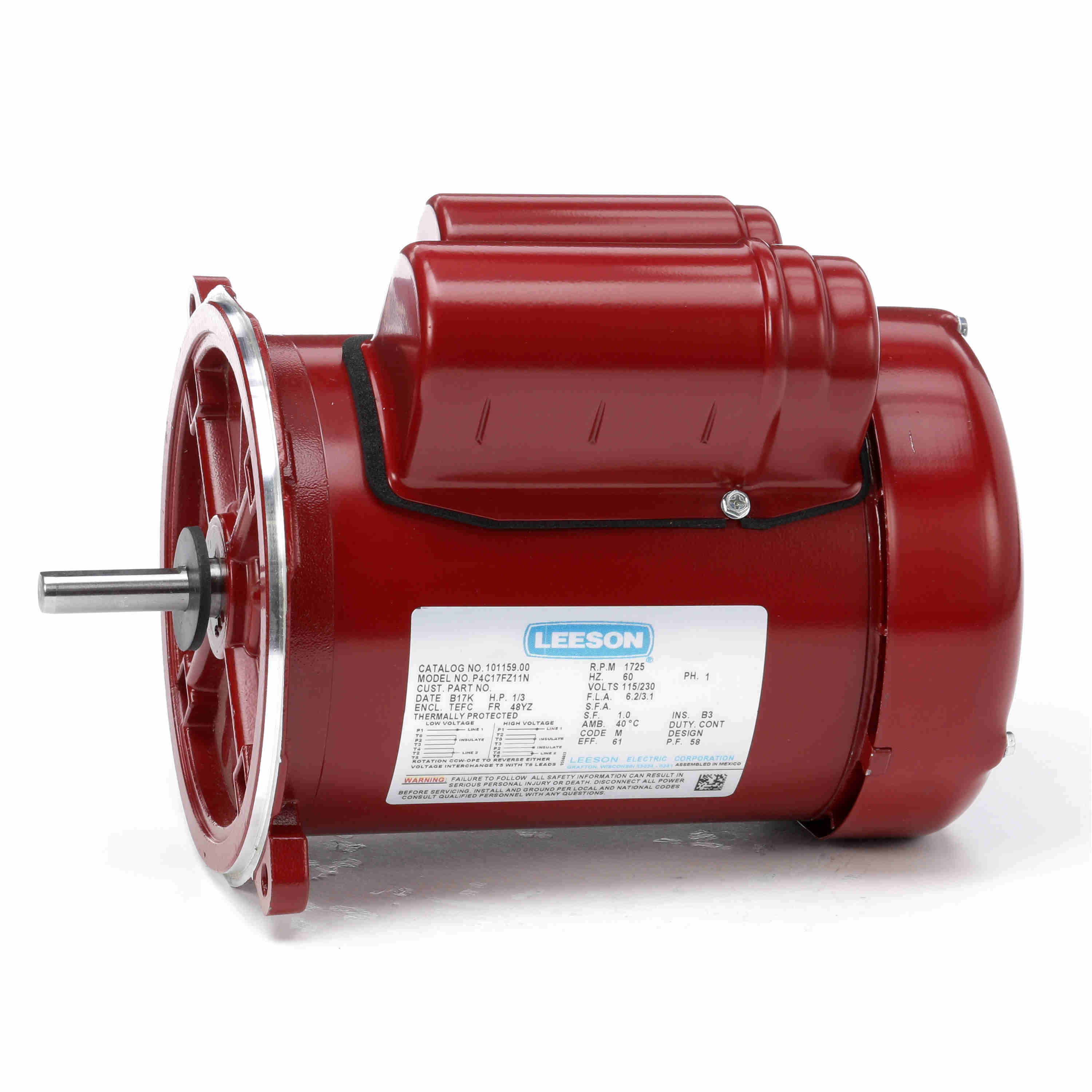

LEESON 101159.00 P4C17FZ11N Auger Drive Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Jul 1
€468.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Amps | 6.2/3.1A |
| Application | Farm Duty |
| Assembly | LO101159 |
| Bearing Type | Ball |
| Bolt Circle Dia. | 7 1/4" |
| Capacitor Required | Yes |
| Code | M |
| Conduit Box Position | F1 |
| Design Code | No Design Code |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 61% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 48Y |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 6.2/3.1A |
| Height | 9.38" |
| Hp | 33/100 hp |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 12 3/4" |
| Length Less Shaft | 9" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 104°F |
| Max. Speed | 1725 RPM |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start, Run |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Mounting Type | Round |
| Nameplate Speed | 1725 RPM |
| Nema Design | M |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.246 kW |
| Overall Length | 10 1/2" |
| Packaging | B |
| Phase | 1 |
| Power | 0.246 kW |
| Power Factor | 58 |
| Product Datasheet | leeson-101159-00.pdf |
| Resistance Main | 1.519 ohms |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | NEMA 48 |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115-230V |
| Width | 9 1/2" |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 24.13 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 61
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92005-15
- Winding: CE484242
- GROUP: 4
- Paint: RED - LEESON (POWDER)
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Shaft Design | Motor Application | Insulation Class | Service Factor | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

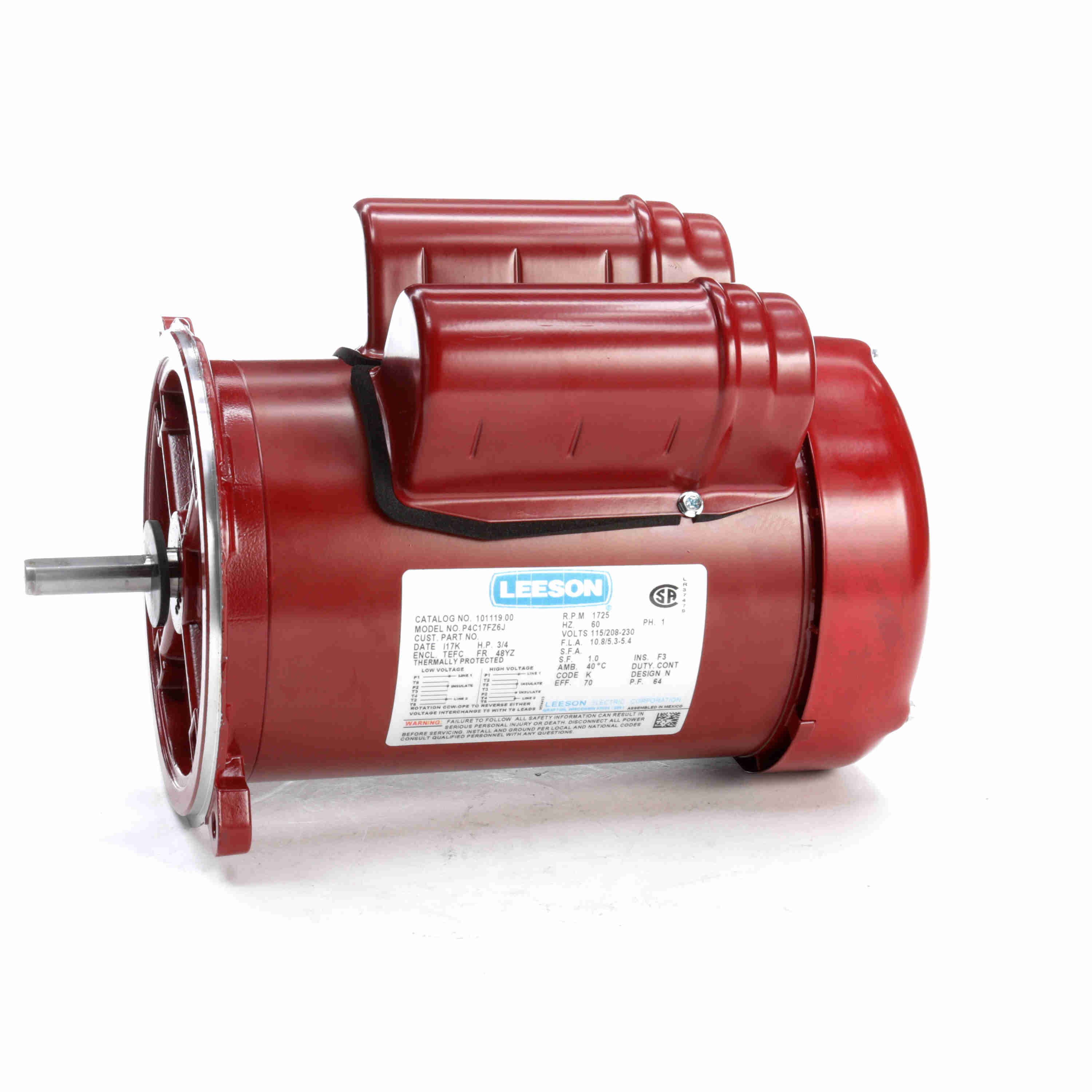

101119.00 | 115/208-230V | 3/4 hp | 48Y | Keyed | Farm Duty | Class F | 1 | Round | €1,273.01 | |
 |

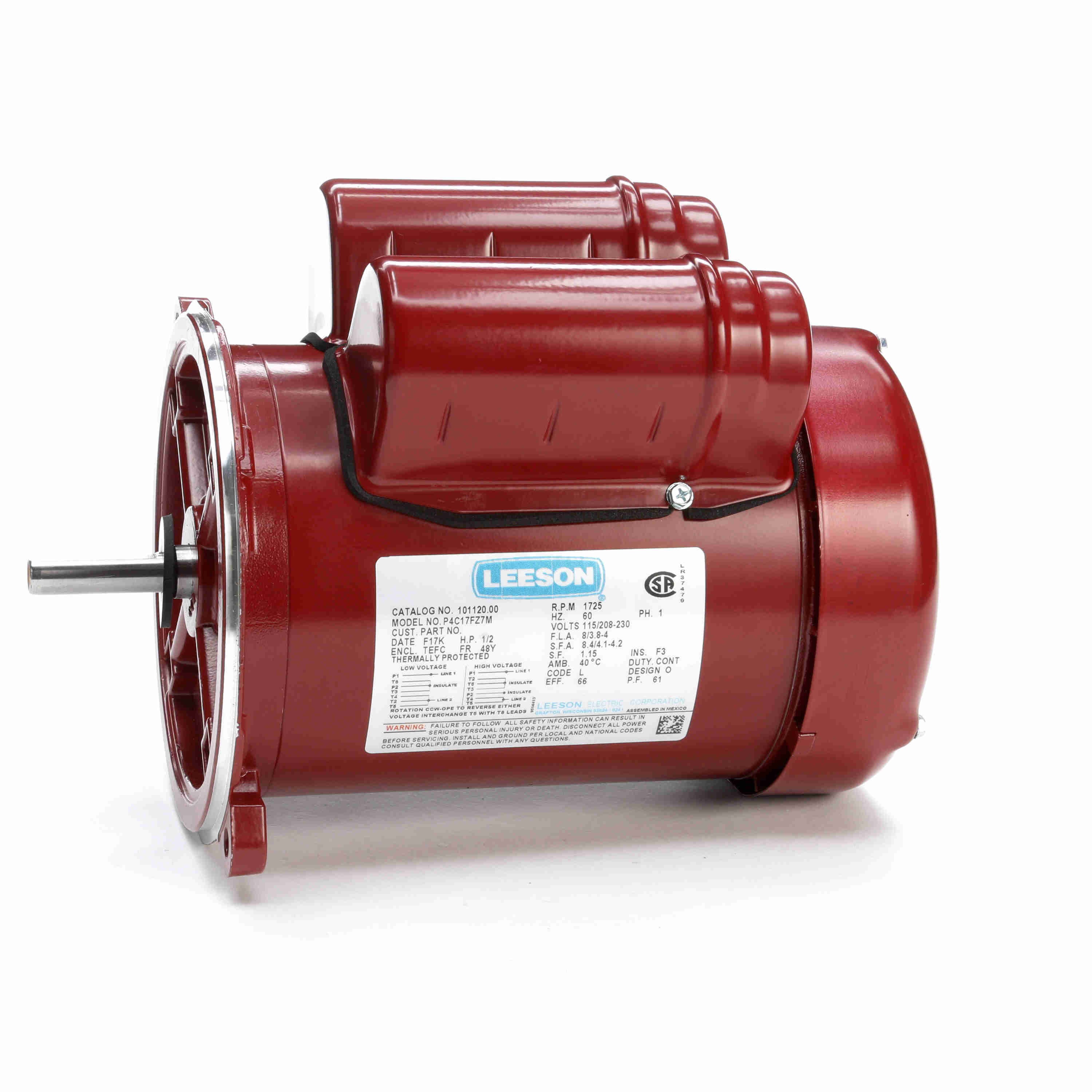

101120.00 | 115/208-230V | 1/2 hp | 48Y | Flat | Auger | Class F | 1.15 | C Face, Footless | €507.32 | |
 |

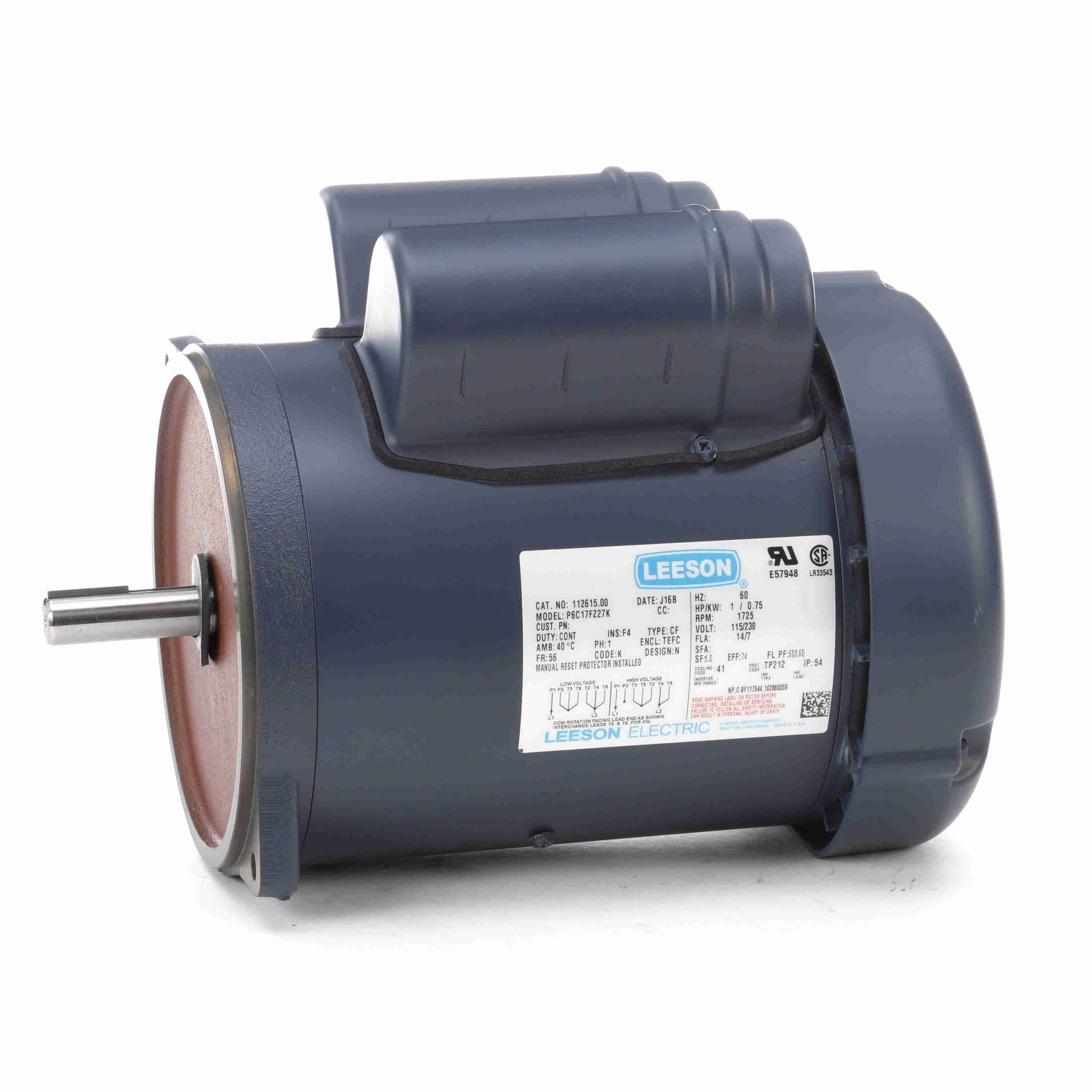

112615.00 | 115-230V | 1 hp | 56 | - | - | Class F | 1 | C Face, Footless | €661.22 |
