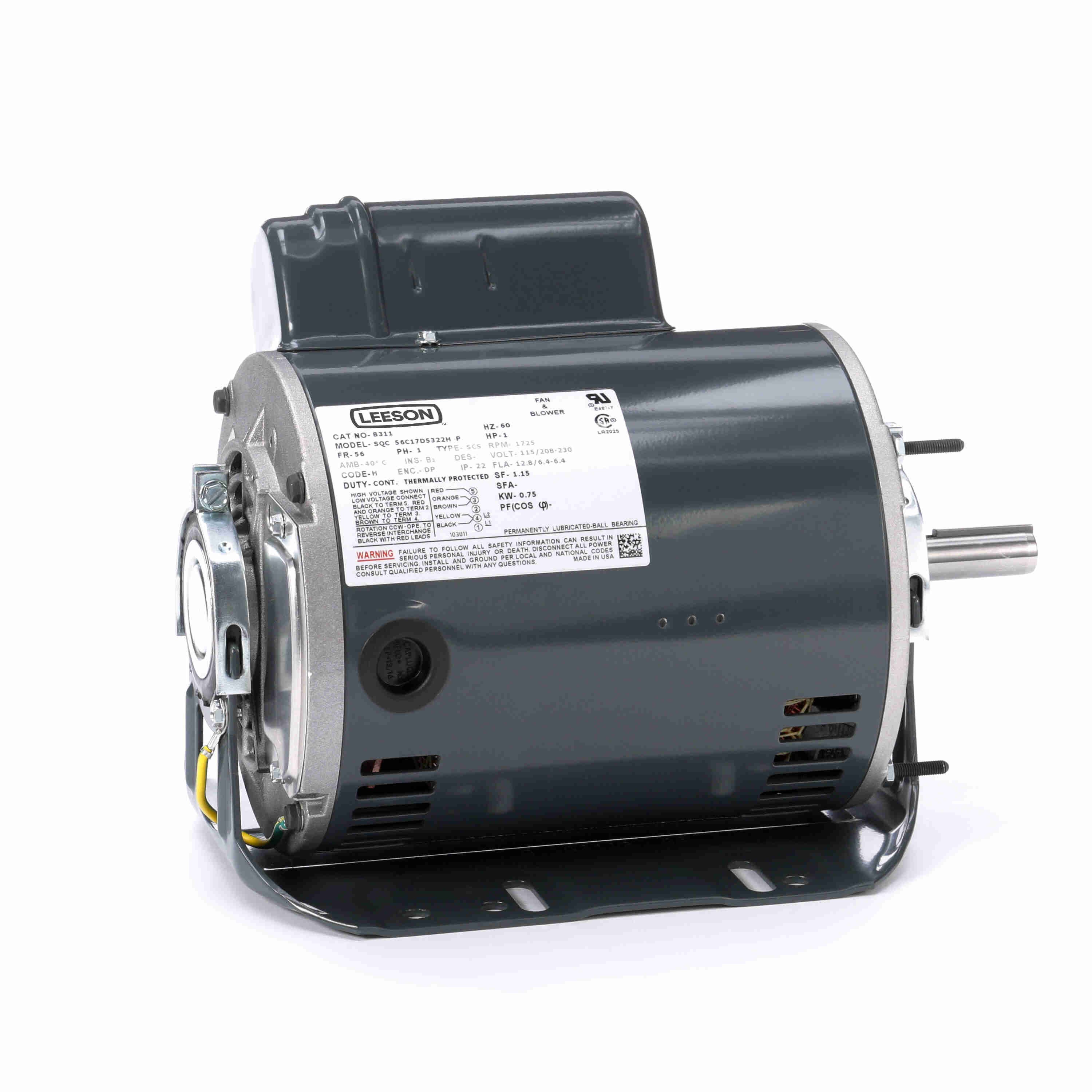

LEESON 056C17D5322 56C17D5322H / B311 Direct Drive Blower Motor, 1 Spd, Open Dripproof, Resilient Base Mount, 1 HP, 56 Frame
Get it by Tuesday, Aug 18
5.00% off
€792.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Direct Drive Blower Motor |
| Body Dia. | 6 2/5" |
| Capacitor Required | Capacitor Included |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 9.3A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Drip Proof |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | Auto |
| Nameplate Speed | 1725 RPM |
| No. Of Speeds | 1 |
| Phase | 1 |
| Product Datasheet | leeson-056c17d5322.pdf |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1450-1800 RPM |
| Usable @ 208 V | Yes |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 12.24 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 20.32 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Service Factor | Mounting Type | Motor Type | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49PN3011 | 115V AC | 1/4 hp, 3/4 hp | 60 Hz | 9/6.4A | 1.25 | Cradle Base | Capacitor Start | CW, CCW | €807.48 | |
 |
5KCR49PN3012X | 208-230V AC | 1/4 hp, 3/4 hp | 60 Hz | 4.3-4.4/3.1-3.2A | 1.25 | Cradle Base | Capacitor Start | CW, CCW | €777.24 | |
 |
5KCR49SN3009 | 115V AC | 1 1/3 hp | 60 Hz | 10.8/7.4A | 1.15 | Cradle Base | Capacitor Start | CW, CCW | €1,005.04 | |
 |
5KC49NN0061T | 115/208-230V AC | 1 hp | 60 Hz | 14.4/7.2A | 1 | Resilient Base | Capacitor Start/Induction Run | CW, CCW | €610.59 | |
 |
056B17D5331 | 115/208-230V | 2 hp | 60 Hz | 21/10.5-11.3A | 1.15 | Resilient Base Extended Studs | - | CW, CCW | €662.45 | |
 |
5KC46LN0269X | 115/208-230V AC | 3/4 hp | 60 Hz | 13.3/6.5-6.6A | 1.25 | Resilient Base | Capacitor Start/Induction Run | CCW | €954.23 | |
 |
5KCP35CNA490S | 115/200-230V | 1/20 hp | 50/60 Hz | 1.5/0.7-0.8A | 1.5 | - | Permanent Split Capacitor | CCW | €569.19 |
