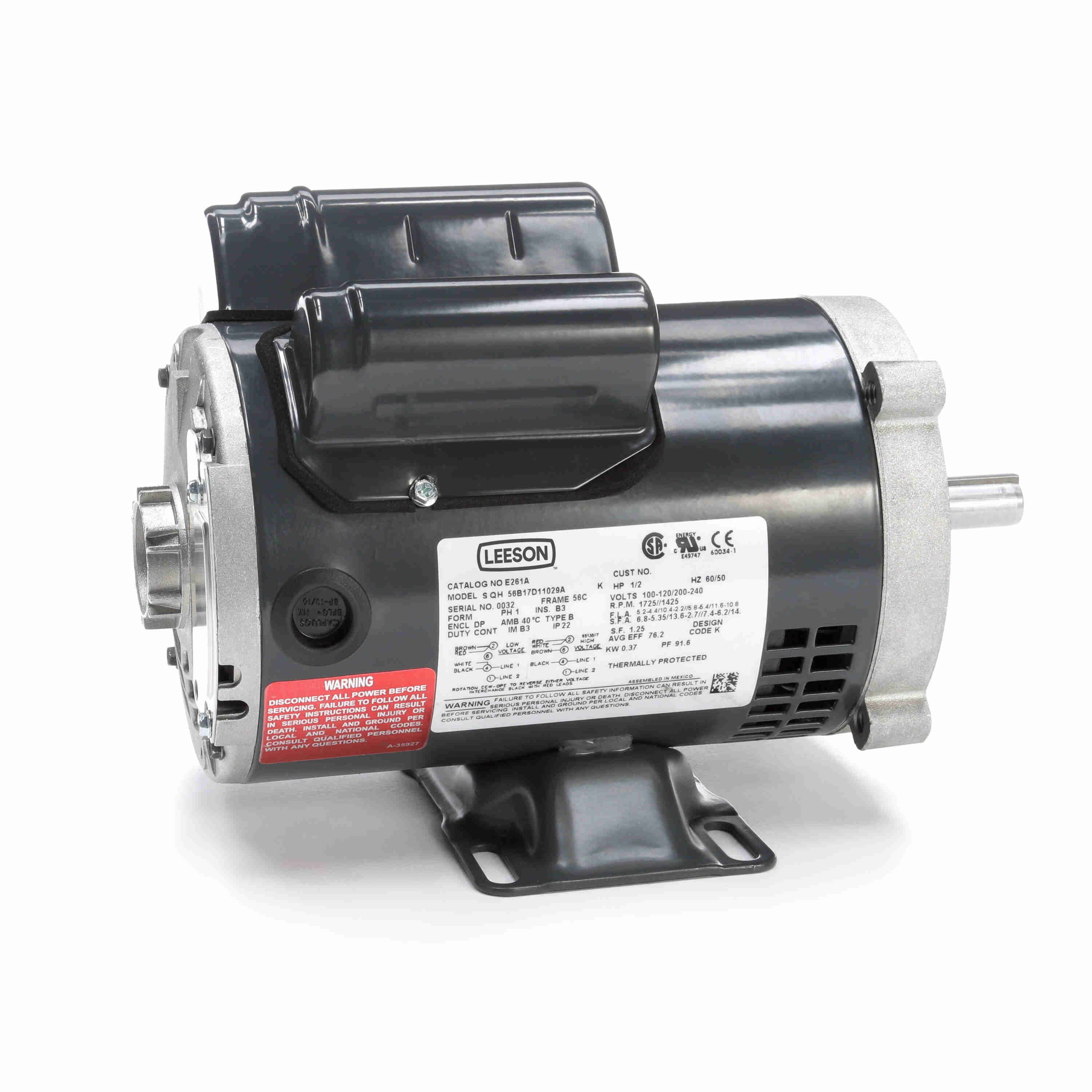

LEESON 056B17D11029 56B17D11029A / E261A General Purpose Motor, 0.50 HP, 1 Phase, 60/50 Hz, 120/240 and 100-120/200-240V, 1800 RPM
Get it by Tuesday, May 19
5.00% off
€656.01 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 76.2% |
| Efficiency Group | Premium |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 4.4-5.2/2.2-2.6A |
| Full Load Amps @ 50hz | 5.2-4.4/2.6-2.2A |
| Hp | 1/2 hp |
| Hp @ 50hz | 1/2 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9 9/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face/Base |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 76.2% |
| Number Of Speeds | 1 |
| Overall Length | 11 7/16" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 120/240V AC |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 24.43 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Full Load Amps | Hp | Phase | Service Factor | Mounting Type | Frequency | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 115/230V AC | 3.8-4/1.9-2A | 1/3 hp | 1 | 1.35 | Face/Base | 60 Hz | 1725 RPM | €933.52 | |
 |
5KCR46MN0055Y | 115/230V AC | 5.6-5.8/2.8-2.9A | 1/2 hp | 1 | 1.25 | Face/Base | 50/60 Hz | 1725 RPM | €841.44 | |
 |
5KCR46MN0093 | 115/230V AC | 5.6-5.8/2.8-2.9A | 1/2 hp | 1 | 1.25 | Face | 60 Hz | 1725 RPM | €814.28 | |
 |
5KCR46MN0055X | 115/230V AC | 5.6-5.8/2.8-2.9A | 1/2 hp | 1 | 1.25 | Face/Base | 60 Hz | 1725 RPM | €956.68 | |
 |
5KCR49PN0099X | 115/230V AC | 8.8-9/4.4-4.5A | 3/4 hp | 1 | 1.25 | Face/Base | 50/60 Hz | 1725 RPM | €1,116.48 | |
 |
5KCR49UN0107 | 115/230V AC | 11.4-11.8/5.7-5.9A | 1 hp | 1 | 1.15 | Face | 60 Hz | 1725 RPM | €1,031.58 | |
 |
5KCR49UN0106X | 115/230V AC | 11.4-11.8/5.7-5.9A | 1 hp | 1 | 1.15 | Face/Base | 60 Hz | 1725 RPM | €1,060.60 |
