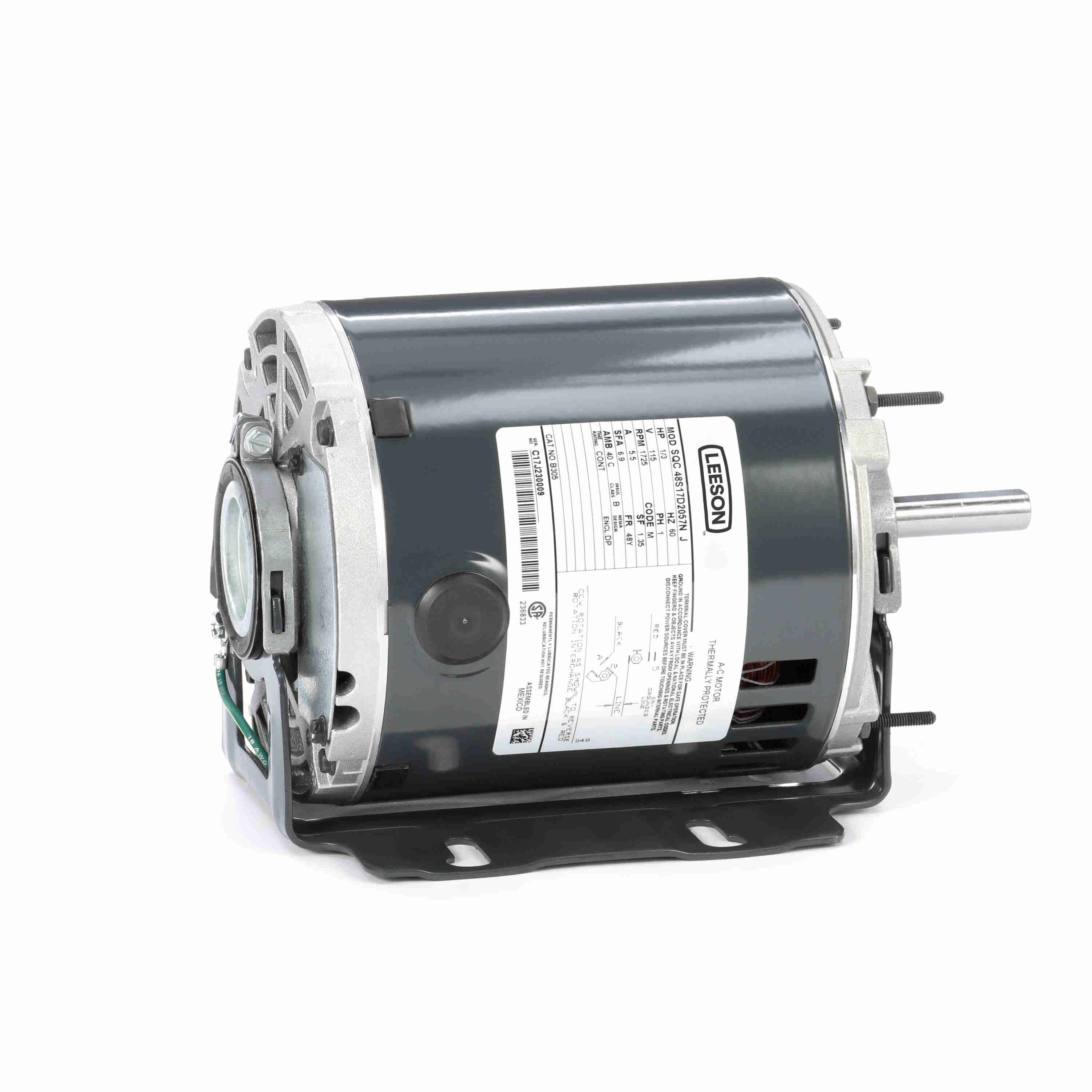

LEESON 048S17D2057 B305 / 48S17D2057N Fan and Blower Motor, 0.33 HP, 1 Phase, 60 Hz, 115V, 1800 RPM
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€349.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Dripproof |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 5.5A |
| Full Load Efficiency | 64% |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7 5/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Belt Drive Fan/Blower |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base Extended Studs |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 64% |
| Number Of Speeds | 1 |
| Overall Length | 9 5/16" |
| Phase | 1 |
| Power | 0.25 kW |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 7 1/16" |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 13/16" |
| Shaft Orientation | Horizontal |
| Standards | Csa (Lr2025), Ul (E6312) |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Weight | 15 lbs. |
Shipping Info:
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 16.81 |
| Ship length (cm) | 28.09 |
| Ship width (cm) | 17.15 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: SPLIT PHASE
- KVA Code: M
- Drive End Bearing: BALL
- IP Code: 22
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Mounting Position | Frame | Shaft Length | Motor Enclosure Design | Max. Ambient Temp. | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048S17D2017 | 115V AC | 1/6 hp | Horizontal | 48 | 1 7/16" | Open Dripproof | 104°F | Automatic | €298.49 | |
 |
5KH39QN5512T | 115V AC | 1/4 hp | All Angle | 48Y | 1 1/2" | Open Dripproof | 40°C | Automatic | €222.86 | |
 |
5KH32FN3083 | 115V AC | 1/4 hp | All Angle | 48Z | 1 22/25" | Dripproof | 40°C | No | €268.55 | |
 |
5KH32HN5620T | 115V AC | 1/3 hp | All Angle | 48Y | 1 1/2" | Open Dripproof | 40°C | Automatic | €259.28 | |
 |
048S17D2086 | 115V AC | 1/3 hp | Horizontal | 48 | 1.59" | Dripproof | 40°C | Automatic | €264.23 | |
 |
5KH35MNA519T | 115V AC | 1/2 hp | All Angle | 48Y | 2 1/4" | Open Dripproof | 40°C | Automatic | €478.87 | |
 |
5KH32JN3128 | 115V AC | 1/3 hp | All Angle | 48Z | 1 22/25" | Dripproof | 40°C | No | €309.91 |
