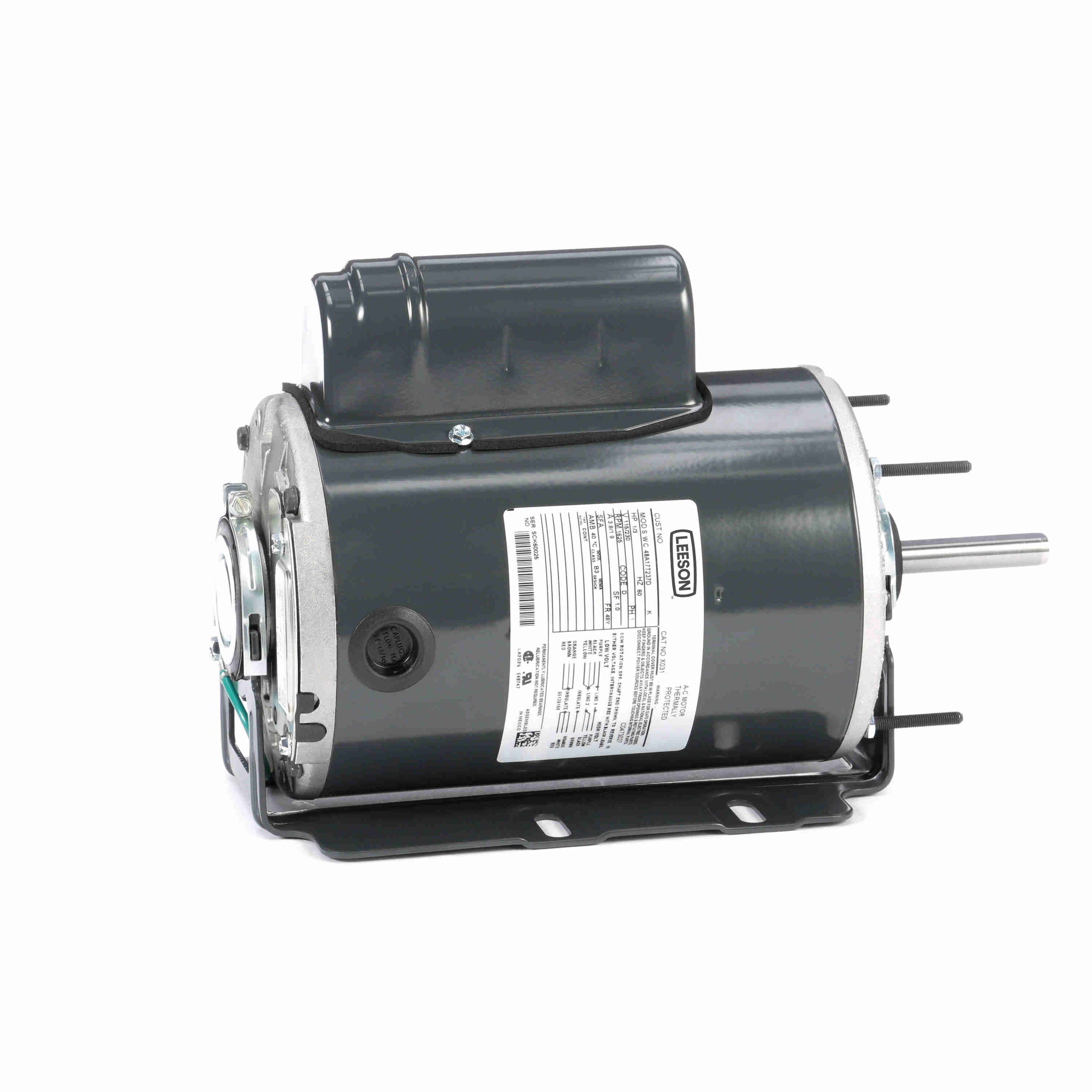

LEESON 048A17T237 X031 / 48A17T237D General Purpose Farm Duty Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€374.27 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Body Dia. | 5 11/16" |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Extended Thru-bolts | Yes |
| Frame | 48Y |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.8/1.9A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 1/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Overall Length | 11 13/16" |
| Phase | 1 |
| Ring Dia. | 2 1/4" |
| Ring To Ring Center | 8 20/23" |
| Rpm Range | 1601-1700 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 1/2" |
| Stud Pattern | 1 11/25" x 5 3/25" |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 23 lbs. |
Shipping Info:
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Rpm Range | Nameplate Rpm | Motor Mounting Type | Frame | Motor Thermal Protection | Service Factor | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11T2021 | 1/4 hp | 1001-1100 RPM | 1075 RPM | Face | 48Y | Auto | 1 | Rolled Steel | €360.30 | |
 |
048A11T2022 | 1/3 hp | 1001-1100 RPM | 1075 RPM | Face | 48Y | Automatic | 1.0 | Rolled Steel | €411.33 | |
 |
048A11T2023 | 1/2 hp | 1001-1100 RPM | 1075 RPM | Cradle Base | 48Y | Automatic | 1 | Steel | €411.31 | |
 |
048A17T118 | 1/4 hp | 1601-1700 RPM | 1625 RPM | Cradle Base | 48Y | Automatic | 1.0 | Rolled Steel | €314.81 | |
 |
048A17T119 | 1/2 hp | 1601-1700 RPM | 1625 RPM | Cradle Base | 48Y | Auto | 1 | Rolled Steel | €467.87 | |
 |
048A17T2002 | 1/4 hp | 1601-1700 RPM | 1625 RPM | Cradle Base | 48Z | Automatic | 1.0 | Rolled Steel | €341.24 | |
 |
048A17T2003 | 1/3 hp | 1601-1700 RPM | 1625 RPM | Cradle Base | 48Z | Automatic | 1 | Steel | €371.81 |
