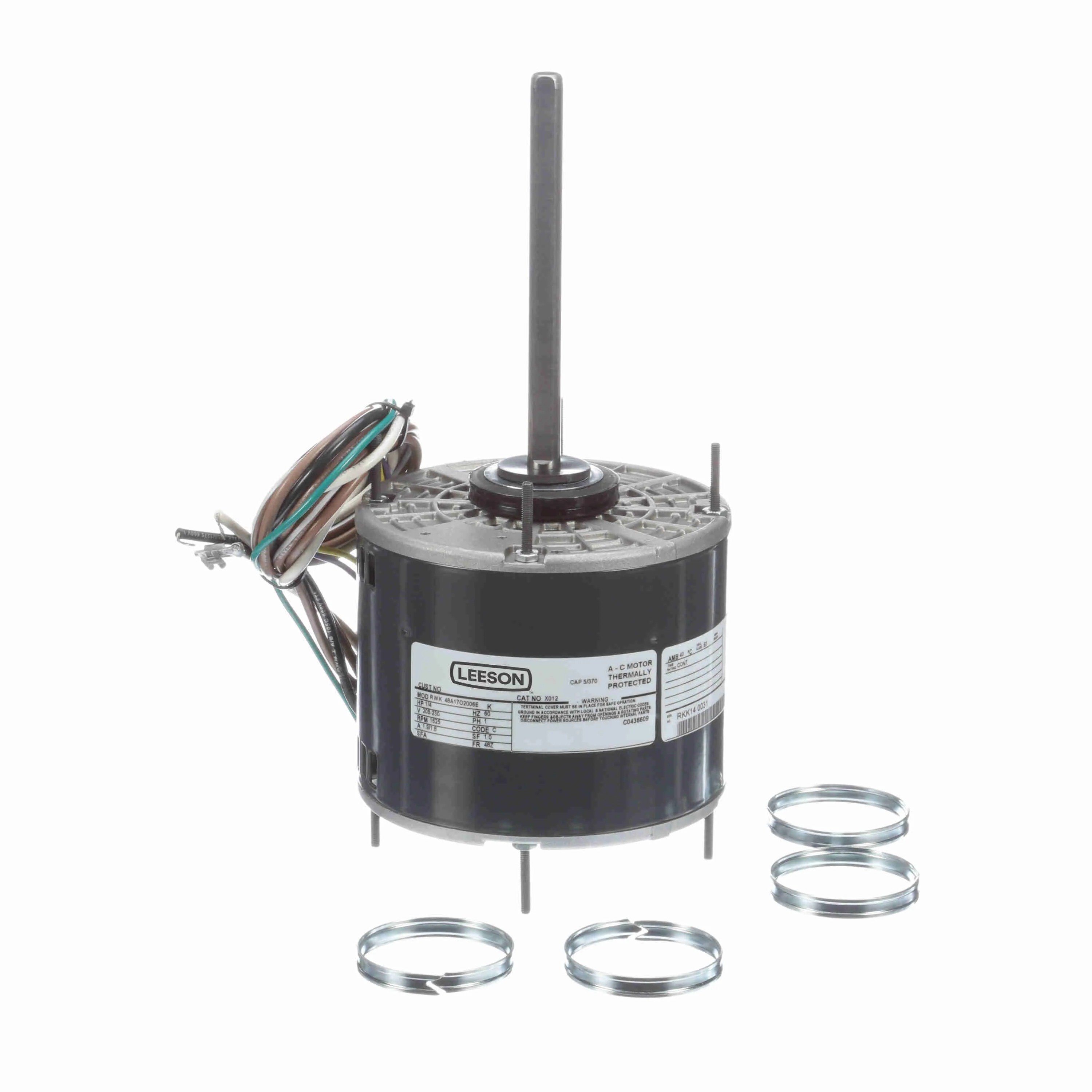

LEESON 048A17O2006 X012 / 48A17O2006E Condenser Fan Motor, 0.25 HP, 1 Phase, 60 Hz, 208-230V, 1800 RPM
Get it by Friday, Dec 19
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€238.48 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Bolt Circle Dia. | 1" |
| Capacitor Required | 2MDV4 |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Open Air Over |
| Extended Thru-bolts | Yes |
| Features | Shaft Slinger, Shaft With Flat, Thru Bolt, Weather Resistant Reversing Plug |
| Frame | 48Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8-1.9A |
| Hp | 1/4 hp |
| Insulation Class | Class B |
| Lead Length | 30" |
| Length Less Shaft | 6" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal, Vertical Shaft Up |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Ring Extended Studs |
| Nameplate Rpm | 1625 RPM |
| Nema Design | No Design Code |
| Nominal Efficiency | 70% |
| Number Of Speeds | 1 |
| Number Of Studs | 4 |
| Output Watts | 190 W |
| Overall Length | 12" |
| Phase | 1 |
| Power | 0.187 kW |
| Removable Base | No |
| Resilient Ring Dia. | 2 1/4" |
| Ring To Ring Center | 6 5/8" |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 6" |
| Shaft Orientation | Horizontal |
| Stud Size | 6 1/2" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230V AC |
| Weight | 12 lbs. |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: PSC 1 SPEED
- KVA Code: C
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11O1674 | 1/2 hp | Horizontal | 48Y | 5" | 115V AC | Open Air Over | Automatic | 1075 RPM | €254.34 | |
 |
048A8O183 | 1/3 hp | Horizontal | 48Y | 5 1/2" | 230V AC | Open Air Over | Auto | - | €369.77 | |
 |
048A11O787 | 3/4 hp | Horizontal | 48Z | 4.06" | 115V AC | - | - | - | €340.77 | |
 |
048A11O1755 | 1/2 hp | Horizontal | 48Y | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | €403.67 | |
 |
048A11O1769 | 1/3 hp | Horizontal | 48Z | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | €259.28 | |
 |
048A17O153 | 1/2 hp | Horizontal | 48Z | 4 1/16" | 115V AC | Open Air Over | Automatic | 1625 RPM | €299.42 | |
 |
048A11O2046 | 3/4 hp | Horizontal | 48Z | 4.06" | 208-230V AC | Open Air Over | Automatic | 1075 RPM | €476.19 |
