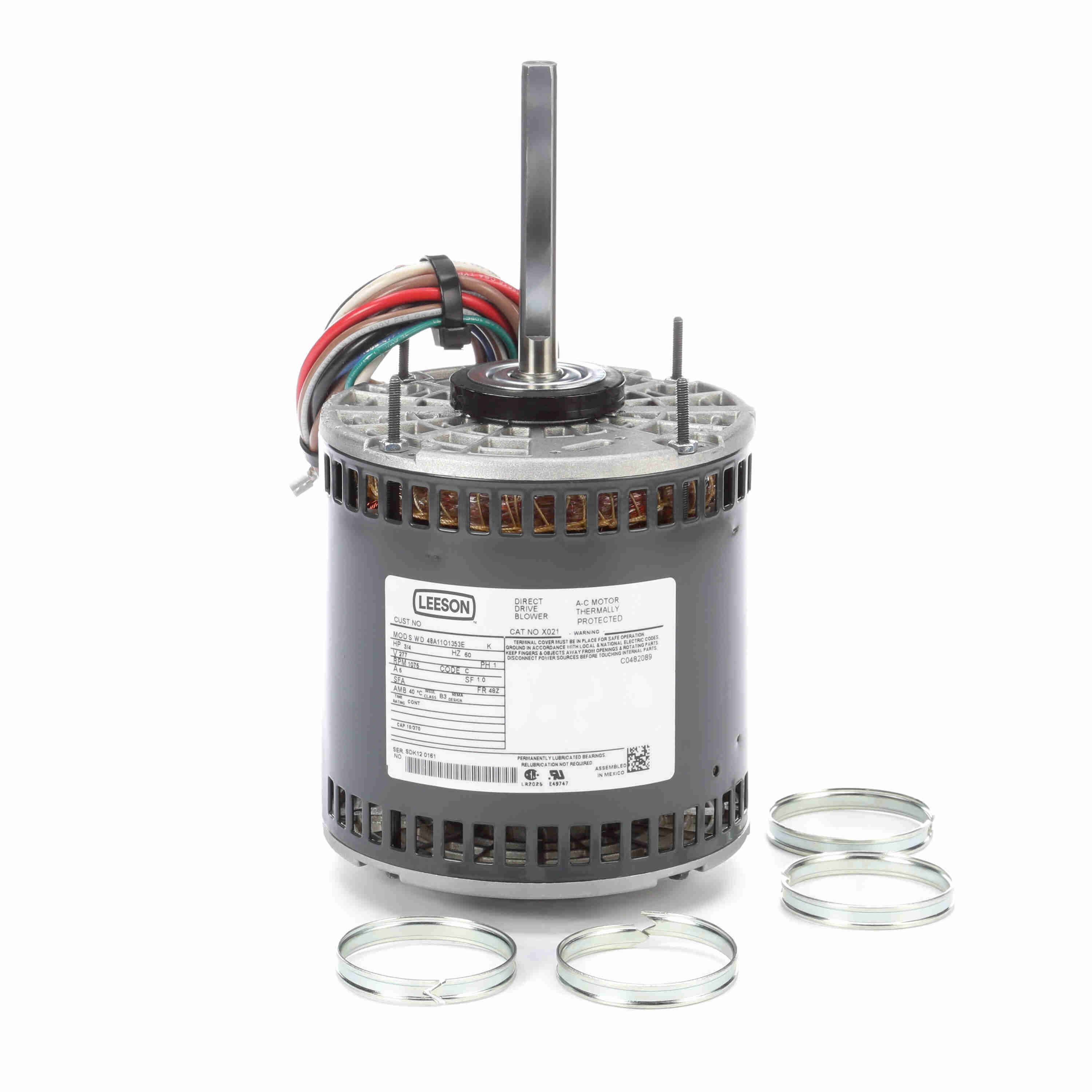

LEESON 048A11O1353 X021 / 48A11O1353E Fan and Blower Motor, 0.75 HP, 1 Phase, 60 Hz, 277V, 1200 RPM
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€439.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Enclosure Type | Open Air Over |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 5A |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Extended Studs, Resilient Base |
| Motor Shaft Rotation | Selective CW |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base Extended Studs |
| Nema Design | No Design Code |
| Number Of Speeds | 3 |
| Phase | 1 |
| Power | 0.56 kW |
| Rpm | 1075 RPM |
| Service Factor | None |
| Shaft Dia. | 1/2" |
| Shaft Length | 4.06" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 277V AC |
Shipping Info:
| Ship weight (kg) | 9 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: PSC MULTISPEED
- KVA Code: C
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Mounting Position | Frame | Shaft Length | Voltage | Motor Enclosure Design | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
048A11O1674 | 1/2 hp | Horizontal | 48Y | 5" | 115V AC | Open Air Over | Automatic | 1075 RPM | €254.34 | |
 |
048A8O183 | 1/3 hp | Horizontal | 48Y | 5 1/2" | 230V AC | Open Air Over | Auto | - | €369.77 | |
 |
048A11O787 | 3/4 hp | Horizontal | 48Z | 4.06" | 115V AC | - | - | - | €340.77 | |
 |
048A11O1755 | 1/2 hp | Horizontal | 48Y | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | €403.67 | |
 |
048A11O1769 | 1/3 hp | Horizontal | 48Z | 4.06" | 115V AC | Open Air Over | Automatic | 1075 RPM | €259.28 | |
 |
048A17O153 | 1/2 hp | Horizontal | 48Z | 4 1/16" | 115V AC | Open Air Over | Automatic | 1625 RPM | €299.42 | |
 |
048A11O2046 | 3/4 hp | Horizontal | 48Z | 4.06" | 208-230V AC | Open Air Over | Automatic | 1075 RPM | €476.19 |
