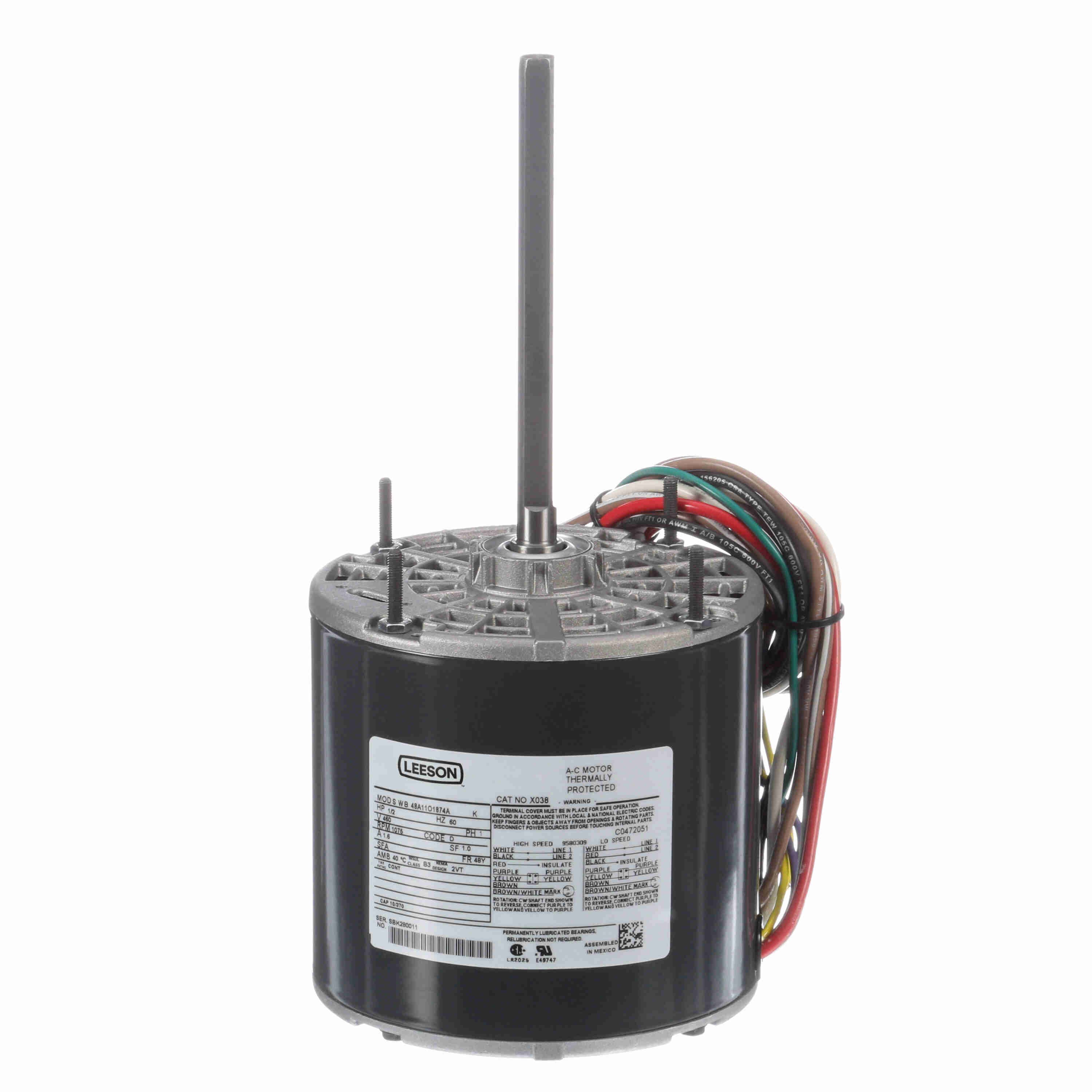

LEESON 048A11O1874 X038 / 48A11O1874A Fan and Blower Motor, 0.50 HP, 1 Phase, 60 Hz, 460V, 1200 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€656.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 40°C |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | N/A % |
| Efficiency | Not Applicable |
| Enclosure Type | Open |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 1.6A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | C Face, Footless |
| Motor Shaft Rotation | Selective CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Round |
| Nameplate Rpm | 1075 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 2 |
| Phase | 1 |
| Power | 0.37 kW |
| Shaft Dia. | 1/2" |
| Shaft Length | 6.06" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 460V AC |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 17.63 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 17.78 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: PSC 2 SPEED
- KVA Code: D
- Drive End Bearing: BALL
- IP Code: 01
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Enclosure Design | Motor Mounting Type | Frame | Shaft Length | Mounting Type | Efficiency | Power | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

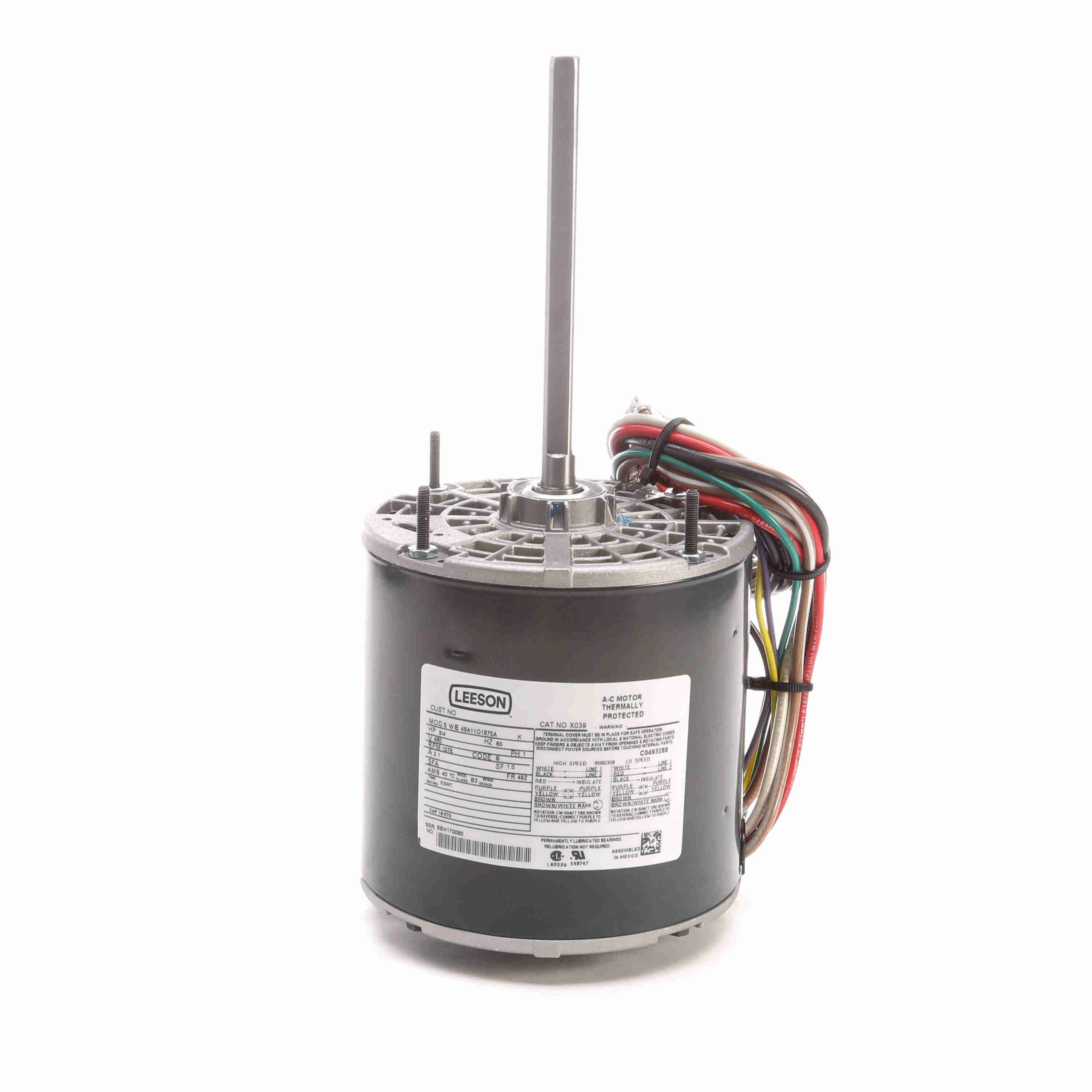

048A11O1875 | 3/4 hp | Open Air Over | Ring, Stud | 48Z | 6 1/16" | Extended Studs, Footless | 64% | 0.56 kW | €609.76 |
