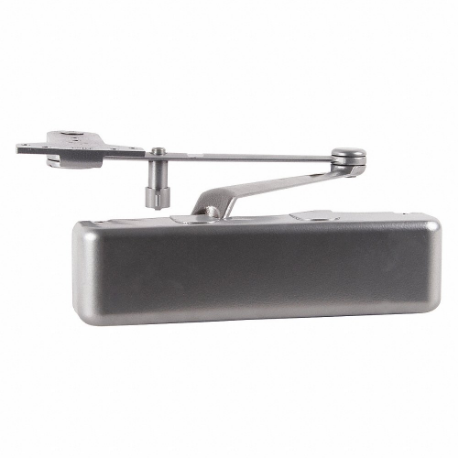

LCN 4031-SHCUSH AL Door Closer, Hold Open, Non-Handed, 10 3/8 Inch Housing Lg, 2 3/4 Inch Housing Dp
Item: CR8NRPModel: 4031-SHCUSH ALCross Ref: 46TM96
7 In Stock
Ships within 2 days via
€835.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Forged Steel |
| Arm Type | Parallel |
| Automatic/manual | Manual |
| Closer Mounting Style | Surface |
| Closer Mounting Type | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | 4031 Series |
| Closer Stop Type | Standard |
| Closer Type | Hold Open |
| Color | Gray |
| Door Handing | Non-Handed |
| Door Width Campatibility | 47 124/125" |
| Energy Source | Hydraulic |
| Exterior Door Width | 36" |
| Exterior Door Width-max. | 36" |
| Finish | Aluminum, Painted |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 1" |
| Housing Depth | 2 3/4" |
| Housing Height | 5" |
| Housing Length | 10 3/8" |
| Hydraulic/pneumatic | Hydraulic |
| Included | Metal Cover |
| Included Hardware | Hardware Included |
| Interior Door Width | 48" |
| Interior/exterior | Interior |
| Length Between Mounting Holes | 1 23/32" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max. Door Opening | 180° |
| Max. Door Opening Angle | 180° |
| Min. Spring Size | 1 |
| Mounting Hardware | Included |
| Mounting Style | Parallel Arm |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Projection | 1 3/4" |
| Projection From Wall | 1 3/4" |
| Spring Size | 4 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10C |
Shipping Info:
| Ship weight (kg) | 4.55 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Hand Orientation | Closer Type | Spring Type | Spring Size | Manual/automatic | Hydraulic/pneumatic | Closer Mounting Style | Arm Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4811-STD AL | Non Handed | Non Hold Open | Adjustable | 4 | Manual | Pneumatic | Surface | Track | €2,661.77 | |
 |
4642-REG AL | Non Handed | - | - | - | - | - | - | Regular | €7,176.74 | |
 |
4631-STD AL | Non Handed | - | - | - | - | - | - | Track | €8,621.60 | |
 |
2035-H LH AL | Right Handed | Hold Open | Adjustable | 3 | Manual | Hydraulic | Regular | Track | €1,507.93 | |
 |
4414ME-REG/18 24V RH AL | Right Hand | Non Hold Open | Adjustable | 4 | Manual | Hydraulic | Surface | Regular | €1,574.66 | |
 |
9531-STD RH ANCLR 36 | Right Hand | Non Hold Open | Adjustable | 5 | Manual | Hydraulic | Offset | Track | €7,450.15 | |
 |
2014-STD LH AL | Left Hand | Non Hold Open | Adjustable | 4 | Automatic | Hydraulic | Concealed | Track | €846.03 |
