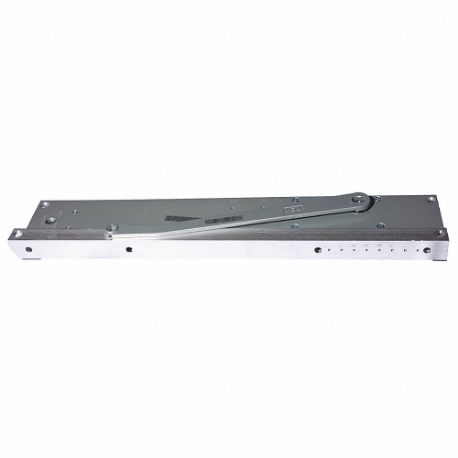

LCN 2035-STD LH AL Concealed Door Closer, Non Hold Open, Left Hand, 3 23/32 Inch Housing Dp, 1-5/8 In
Get it by Tuesday, Jul 7
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€1,303.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Type | Track |
| Automatic/manual | Manual |
| Closer Mounting Style | Concealed Overhead |
| Closer Mounting Type | Concealed |
| Closer Performance | Heavy Duty |
| Closer Series | 2030 Series |
| Closer Stop Type | Spring |
| Closer Type | Non Hold Open |
| Color | Gray |
| Door Handing | Left-Handed |
| Energy Source | Hydraulic |
| Features | 1 1/8" Dia Piston |
| Finish | Aluminum, Painted |
| For Use With | Narrow Aluminum Transom |
| Hand Orientation | Left Hand |
| Housing Depth | 3.719" |
| Housing Height | 1 3/8" |
| Housing Length | 22 1/2" |
| Housing Material | Aluminum |
| Hydraulic/pneumatic | Hydraulic |
| Included | Arm, Track |
| Interior/exterior | Interior And Exterior |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Cast Iron |
| Max. Door Opening | 180° |
| Max. Door Opening Angle | 100° |
| Min. Door Opening | 85° |
| Min. Spring Size | 1 |
| Mounting | Concealed |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Spring Size | 5 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10C |
Shipping Info:
| Ship weight (kg) | 5.9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Hand Orientation | Closer Type | Spring Type | Spring Size | Manual/automatic | Hydraulic/pneumatic | Closer Mounting Style | Arm Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4811-STD AL | Non Handed | Non Hold Open | Adjustable | 4 | Manual | Pneumatic | Surface | Track | €2,661.77 | |
 |
4642-REG AL | Non Handed | - | - | - | - | - | - | Regular | €7,176.74 | |
 |
4631-STD AL | Non Handed | - | - | - | - | - | - | Track | €8,621.60 | |
 |
2035-H LH AL | Right Handed | Hold Open | Adjustable | 3 | Manual | Hydraulic | Regular | Track | €1,507.93 | |
 |
4414ME-REG/18 24V RH AL | Right Hand | Non Hold Open | Adjustable | 4 | Manual | Hydraulic | Surface | Regular | €1,574.66 | |
 |
9531-STD RH ANCLR 36 | Right Hand | Non Hold Open | Adjustable | 5 | Manual | Hydraulic | Offset | Track | €7,450.15 | |
 |
2014-STD LH AL | Left Hand | Non Hold Open | Adjustable | 4 | Automatic | Hydraulic | Concealed | Track | €846.03 |
