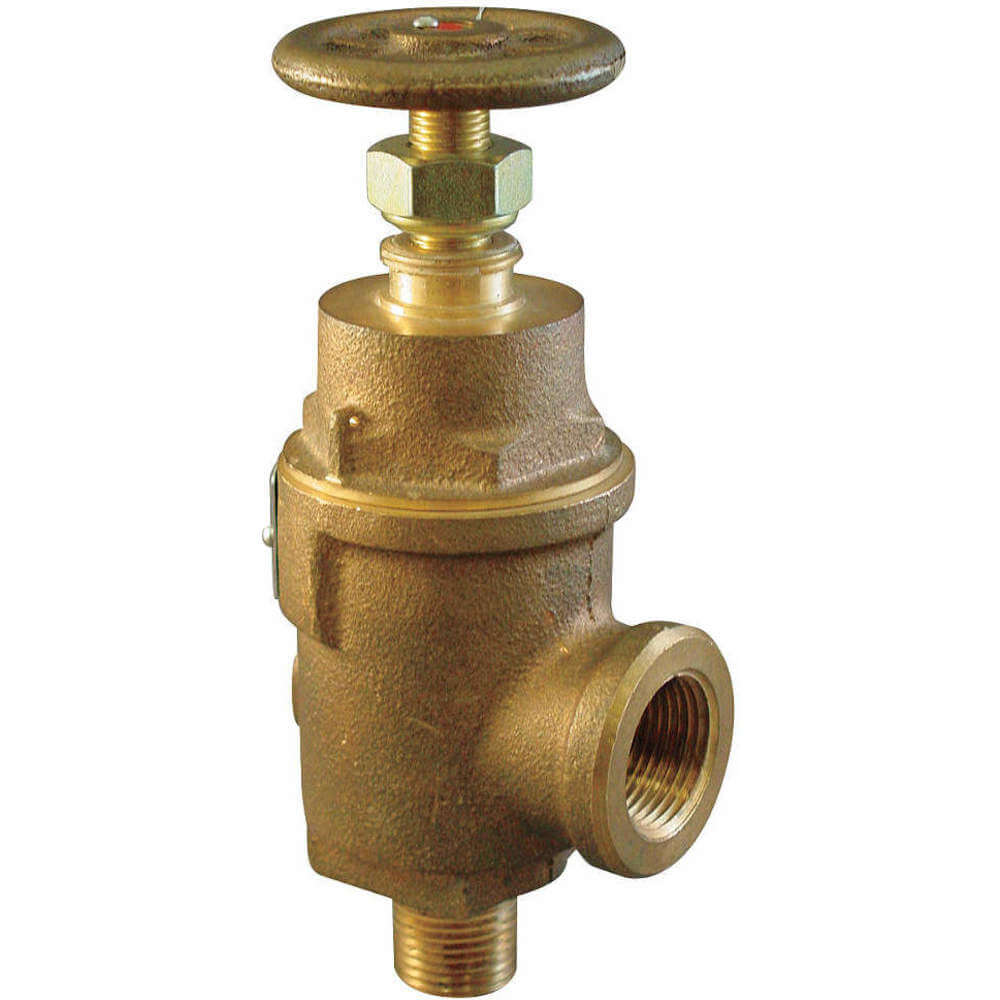

KUNKLE 0019-E10-MG0050 Adjustable Relief Valve 1 Inch 50psi Bronze
Item: AE4WPBModel: 0019-E10-MG0050Cross Ref: 5NKV5
7 In Stock
Ships within 2 days via
10.00% off
€619.55 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Adjustable Relief Valve |
| Application | Overpressure Relief And Protection Of Pumps, Tanks, Linesand Hydraulic Systems, Pressure Regulationand Continuous By-Pass Relief |
| Asme Section Code | Non Code |
| Body Material | Bronze |
| Connection Type | FNPT x MNPT |
| Disc Material | Bronze |
| Factory Set Pressure | 65 psi |
| Grade | Grade 316 |
| Inlet Connection Size | 1" |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Operating Pressure Range | 16 psi to 514 psi |
| Operating Temperature Range | -60°F to +406°F |
| Outlet Size | 1" |
| Outlet Type | MNPT |
| Overall Height | 7 1/8" |
| Overall Length | 3 1/8" |
| Overall Width | 3 1/8" |
| Pressure Adjustment Range | 5 psig to 300 psig |
| Pressure Rating | 1 psi to 300 psi |
| Pressure Setting Range | 1 psi to 300 psi |
| Spring Material | Stainless Steel |
| Temp. Range | -60°F to +406°F |
| Test Lever | No |
| Valve Type | Relief Valve |
Shipping Info:
| Ship weight (kg) | 1.97 |
| Ship height (cm) | 24.38 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| HS code | 8481400000 |
| Country of Origin | US |
Product Variants
| Model | Factory Set Pressure | Inlet Type | Outlet Type | Overall Length | Overall Height | Connection Type | Inlet Connection Size | Outlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0019-C10-MG0050 | 65 psi | FNPT | MNPT | 3" | 6 1/8" | FNPT x MNPT | 1/2" | - | €601.36 | |
| 0019-C11-MG0100 | 115 psi | FNPT | MNPT | 3" | 6 1/8" | FNPT x MNPT | 1/2" | 3/4" | €576.49 | |
| 0019-C12-MG0225 | 240 psi | FNPT | MNPT | 3" | 6 1/8" | FNPT x MNPT | 1/2" | 3/4" | €574.01 | |
| 0019-D10-MG0050 | 65 psi | FNPT | MNPT | 3" | 6 1/8" | FNPT x MNPT | 3/4" | 3/4" | €605.03 | |
| 0019-D11-MG0100 | 115 psi | FNPT | MNPT | 3" | 6 1/8" | FNPT x MNPT | 3/4" | 3/4" | €601.36 | |
| 0019-D12-MG0225 | 240 psi | FNPT | MNPT | 3" | 6 1/8" | FNPT x MNPT | 3/4" | 3/4" | €595.35 | |
| 0019-E11-MG0100 | 115 psi | FNPT | MNPT | 3 1/8" | - | FNPT x MNPT | 1" | 1" | €688.46 |
