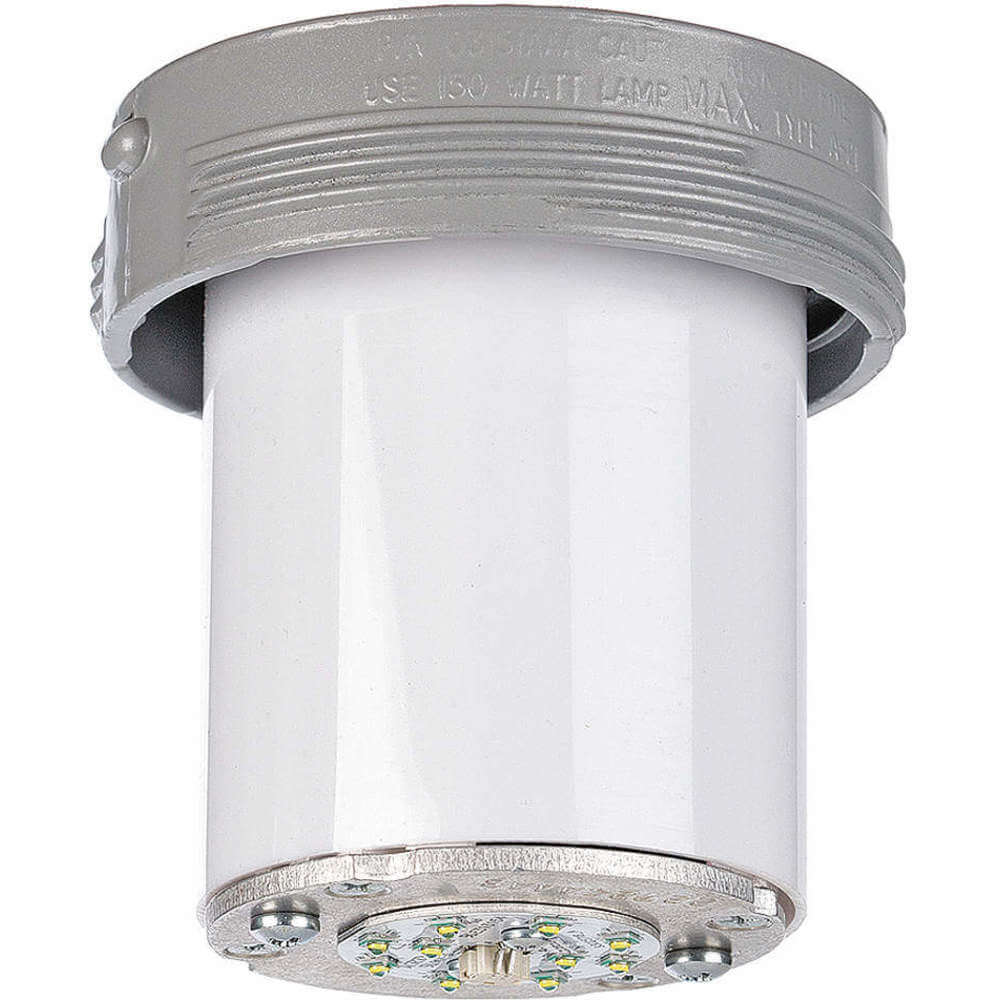

KILLARK VSL1630F2HG Hazardous Location Fixture 16wled Ceiling 3/4in Glass
Item: AF3DJBModel: VSL1630F2HGCross Ref: 7AY45
7 In Stock
Ships within 2 days via
5.00% off
€1,008.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hazardous Location Fixture Combo |
| Ambient Temp. | -40°F to +131°F |
| Ca Title 24 Compliant | No |
| Color Temp. | 5000 K |
| Dimmable | No |
| Emergency Battery Backup | No |
| Enclosed | Yes |
| Fixture Type | 0.75" |
| Fixture Voltage | 120-277V AC |
| Fixture Watts | 16 W |
| For Bulb Shape | Integrated LED |
| For Bulb Type | LED |
| For Max. Bulb Watts | 16 W |
| Gasketed | Yes |
| Housing Finish | Powder Epoxy Paint |
| Housing Material | Aluminum |
| Hub Size | 3/4" |
| Included | Fixture Body |
| Ingress Protection Rating | 66 |
| Lamp Type | LED |
| Lamp Watts | 16 W |
| Lighting Technology | LED |
| Lumens | 1625 lm |
| Lumens Per Watts | 101.6 lm/W |
| Max. Ambient Temp. | 131°F |
| Max. Fixture Watts | 16 W |
| Min. Ambient Temp. | -40°F |
| Mounting | Ceiling |
| Mounting Bracket Item Number | 22P058 & 22P059 |
| Mounting Location | Ceiling |
| Overall Height | 3 3/4" |
| Overall Length | 4 3/4" |
| Overall Width | 4" |
| Power | 16 W |
| Product Datasheet | killark-vsl1330.pdf |
| Safety Rating | Class I, Division 2, Groups A, B, C, D, Class I, Groups Iic, Iib, Iia, Class II, Division 2, Groups F, G, Class III, Divisions 1 And 2, Zone 2 |
| Temp. Code | T5 |
| Wet Locations | Yes |
Shipping Info:
| Ship weight (kg) | 2.23 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 10.16 |
| HS code | 9405400000 |
| Country of Origin | US |
Product Details:
- Sub-Brand : Hubbell Killark
Documentation:
Product Variants
| Model | Mounting | Hub Size | Lamp Watts | Housing Finish | Fixture Watts | Mounting Location | Overall Width | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VSL1330 | Ceiling, Pendant, Wall | - | 13 W | Epoxy Powder Coated | 12.42 W | Ceiling | 4 3/8" | 10 7/64" | €695.40 | |
| VSL1630 | Ceiling, Pendant, Wall | - | 16 W | Epoxy Powder Coated | 15.64 W | Ceiling, Pendant, Wall | 4 3/8" | 10 7/64" | €665.32 | |
| VSL1330F1HG | Ceiling | 1/2" | 13 W | Powder Epoxy Paint | 13 W | Ceiling | 4" | 3 3/4" | €1,090.12 | |
| VSL1330F2HG | Ceiling | 3/4" | 13 W | Powder Epoxy Paint | 13 W | Ceiling | 4" | 3 3/4" | €1,092.11 | |
| VSL1630F1HG | Ceiling | 1/2" | 16 W | Powder Epoxy Paint | 16 W | Ceiling | 4" | 3 3/4" | €1,060.05 | |
| VSL1330W1HG | Wall | - | 13 W | Powder Epoxy Paint | 13 W | Wall | 4" | 3 3/4" | €1,034.57 | |
| VSL1330W2HG | Wall | 3/4" | 13 W | Powder Epoxy Paint | 13 W | Wall | 4" | 3 3/4" | €1,139.45 |
