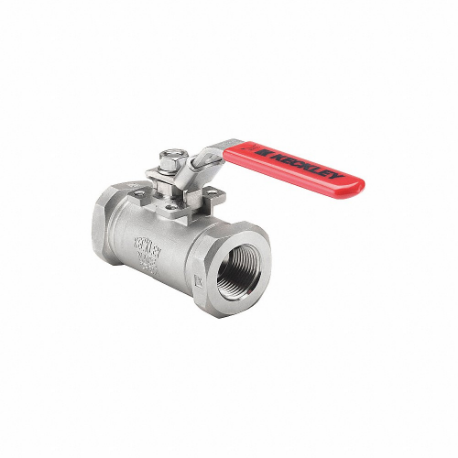

KECKLEY BVS3THRSSAGSL-200 Ball Valve, 2 Inch Pipe, 3, 600 PSI CWP, -50-180 Deg F, Female NPT
Get it by Thursday, Dec 18
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,224.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Opening Size | 1 1/2" |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Body Seal Material | Graphite |
| Body Style | Inline |
| Coefficient Of Volume (cv) | 125 |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | ISO Mounting Pad |
| For Media | Combustible Gases |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Red |
| Handle Height | 4 4/5" |
| Handle Length | 14" |
| Handle Material | Stainless Steel |
| Handle Material Grade | Grade 300 |
| Handle Type | Locking Lever |
| Included Mounting | Actuator Mounting Pad |
| Max. Pressure | 3600 psi |
| Max. Pressure (cwp) | 3600 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Maximum Pressure - Steam | Not Applicable |
| Media Temperature Range | -50°F to +180°F |
| Nominal Valve Size | 2" |
| Overall Length | 6.3" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 2" |
| Port | Standard |
| Seal Material | Graphite |
| Seat Material | Acetal |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -50°F to +180°F |
| Vacuum Service Rating | -29.912 in. hg |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Series | BVS3 Series |
| Valve Structure | Seal Welded |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 5.54 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Body Material | Connection Type | Max. Pressure | Seat Material | Overall Length | Max. Steam Pressure | Coefficient Of Volume | Port | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BVM3THRSSRGSL-150 | Stainless Steel | FNPT x FNPT | 1920 psi | RPTFE | 4.5" | 250 psi WSP | - | Standard | €680.53 | |
| BVM3THFSSRGSL-150 | Stainless Steel | FNPT x FNPT | 1920 psi | RPTFE | 4.8" | 250 psi WSP | - | Full | €922.69 | |
| BVM3SWFSSRGSL-150 | Stainless Steel | Socket x Socket | 1920 psi | RPTFE | 4.8" | 250 psi WSP | - | Full | €895.41 | |
| BVM3SWRSSRGSL-150 | Stainless Steel | Socket x Socket | 1920 psi | RPTFE | 4.5" | 250 psi WSP | - | Standard | €685.15 | |
| BVM3THFCSRGSL-150 | Carbon Steel | FNPT x FNPT | 1973 psi | RPTFE | 4.8" | 250 psi WSP | - | Full | €689.73 | |
| BVM3THRCSRGSL-150 | Carbon Steel | FNPT x FNPT | 1973 psi | RPTFE | 4.5" | 250 psi WSP | - | Standard | €471.18 | |
| BVM3SWRCSRGSL-150 | Carbon Steel | Socket x Socket | 1973 psi | RPTFE | 4.5" | - | - | Standard | €451.57 |
