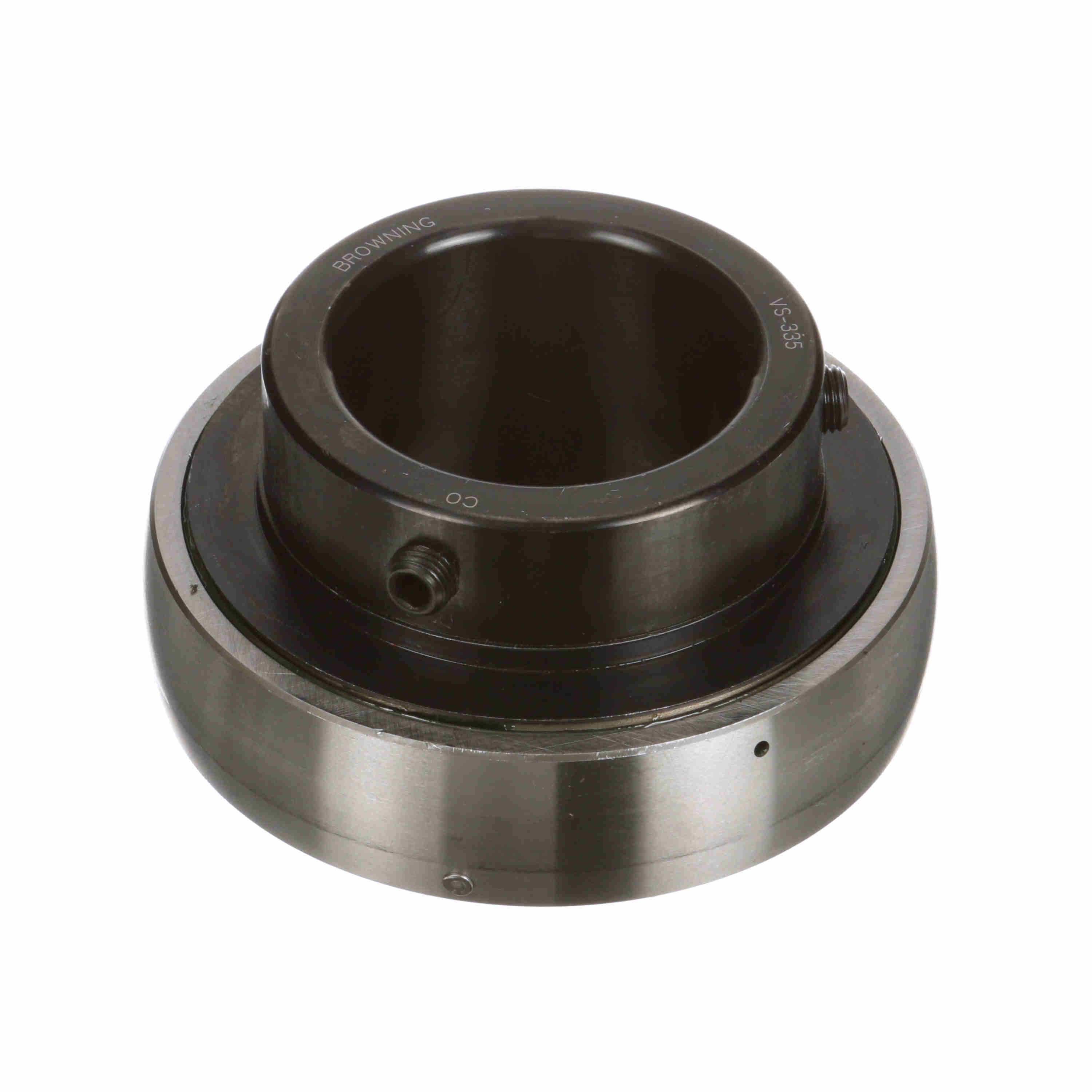

BROWNING VS-335 767509 Bearing Insert, 2-3/16 in Bore, 2-9/16 in Lg Thru Bore, Wide Inner Ring, 1-1/16 in Outer Race Wd, Spherical, 4.331 in OD
Get it by Tuesday, Aug 18
€217.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bearing Insert |
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide Coated Inner Ring |
| Bearing Type | Insert |
| Bore Shape | Straight |
| Bore Size - Inch | 2.188" |
| Centerline To Front Face | 1.563" |
| Centreline To Front Face | 1 14/25" |
| Duty Cycle | Medium Duty |
| Duty Series | Medium |
| Dynamic Radial Load Capacity | 11789 lbs. |
| Enclosure | Double Sealed |
| Expansion | No |
| Family Series | Browning Bearings |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | Steel |
| Insert Material | 52100 Steel |
| Inside Ring Outside Dia. | 2.984" |
| Locking Device | Set Screw |
| Max. Operating Temp. | 200°F |
| Misalignment Type | Static Only |
| Outer Race Width | 1.063" |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 110 mm |
| Outside Race Outside Dia. | 4.3307" |
| Radius | 0.08 |
| Relubricatable | Yes |
| Retainer Type | Ball Riding Retainer |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact Seal With Flinger |
| Static Radial Load Capacity | 8150 lbs. |
Shipping Info:
| Ship weight (kg) | 1.71 |
| Ship height (cm) | 12.22 |
| Ship length (cm) | 12.07 |
| Ship width (cm) | 6.68 |
| Country of Origin | MX |
