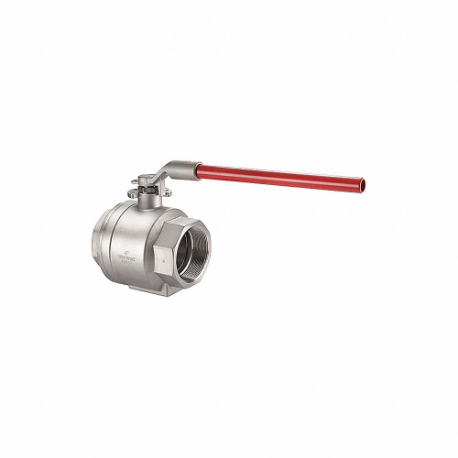

KECKLEY BVS2THFSSRGSL-400 Ball Valve, 4 Inch Pipe, 1000 PSI CWP, -50-450 Deg F, Female NPT | CR6HYV 45AL82

KECKLEY BVS2THFSSRGSL-400 Ball Valve, 4 Inch Pipe, 1000 PSI CWP, -50-450 Deg F, Female NPT

Item: CR6HYVModel: BVS2THFSSRGSL-400Cross Ref: 45AL82
Check Availability
In Stock

Get it by Friday, Dec 19

€1,593.03
10.00% off
€1,433.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Ball Valve
3-a Compliance Not Rated
Agency Compliance Not Rated
Ansi Flange Class Not Applicable
Average Surface Roughness Not Applicable
Ball Material Stainless Steel
Ball Material Grade Grade 316
Ball Opening Size 4"
Ball Port Style Full Port
Ball Valve Product Group Manual
Body Material Stainless Steel
Body Seal Material Graphite
Body Style Inline
Coefficient Of Volume (cv) 2200
Connection Gender - Side 1 Female
Connection Gender Side 2 Female
Connection Size - Side 1 4"
Connection Size - Side 2 4"
Connection Type FNPT x FNPT
Connection Type - Side 1 NPT
Connection Type - Side 2 NPT
Features ISO Mounting Pad
For Media Combustible Gases
Handle Locking Lever
Handle - Locking Locking
Handle Color Red
Handle Height 7.3"
Handle Length 18"
Handle Material Stainless Steel
Handle Material Grade Grade 300
Handle Type Locking Lever
Included Mounting Actuator Mounting Pad
Max. Pressure 1000 psi
Max. Pressure (cwp) 1000 psi
Max. Pressure (steam) 200 psi
Max. Pressure For Combustible Gas Not Rated
Max. Steam Pressure 200 psi WSP
Media Temperature Range -50°F to +450°F
Nominal Valve Size 4"
Overall Length 8.4"
Pipe Schedule Compatibility Not Applicable
Pipe Size 4"
Port Full
Seal Material Graphite
Seat Material RPTFE
Stem Grade Grade 316
Stem Material Stainless Steel
Stem Type Blowout Resistant
Temp. Range -50°F to +450°F
Vacuum Service Rating -29.912 in. hg
Valve Body Style Straight
Valve Construction One-Piece
Valve Series BVS2 Series
Valve Structure Seal Welded
Vented Ball Valve Non Vented

Shipping Info:

Ship weight (kg) 19.81
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54

Product Variants

ProductModelBody MaterialConnection TypeMax. PressureSeat MaterialOverall LengthMax. Steam PressureCoefficient Of VolumePortPrice
KECKLEY BVM3THRSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F | CR6HTH 52RV40 BVM3THRSSRGSL-150Stainless SteelFNPT x FNPT1920 psiRPTFE4.5"250 psi WSP-Standard€680.53
KECKLEY BVM3THFSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F | CR6HTJ 52RV56 BVM3THFSSRGSL-150Stainless SteelFNPT x FNPT1920 psiRPTFE4.8"250 psi WSP-Full€922.69
KECKLEY BVM3SWFSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F, Socket | CR6HTK 52RV62 BVM3SWFSSRGSL-150Stainless SteelSocket x Socket1920 psiRPTFE4.8"250 psi WSP-Full€895.41
KECKLEY BVM3SWRSSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 920 PSI CWP, -50-500 Deg F, Socket | CR6HTL 52RV47 BVM3SWRSSRGSL-150Stainless SteelSocket x Socket1920 psiRPTFE4.5"250 psi WSP-Standard€685.15
KECKLEY BVM3THFCSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 973 PSI CWP, -20-450 Deg F | CR6HTM 52RV14 BVM3THFCSRGSL-150Carbon SteelFNPT x FNPT1973 psiRPTFE4.8"250 psi WSP-Full€689.73
KECKLEY BVM3THRCSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 973 PSI CWP, -20-450 Deg F | CR6HTN 52RV33 BVM3THRCSRGSL-150Carbon SteelFNPT x FNPT1973 psiRPTFE4.5"250 psi WSP-Standard€471.18
KECKLEY BVM3SWRCSRGSL-150 Ball Valve, 1 1/2 Inch Pipe, 1, 973 PSI CWP, -20-450 Deg F, Socket | CR6HTP 52RV26 BVM3SWRCSRGSL-150Carbon SteelSocket x Socket1973 psiRPTFE4.5"--Standard€451.57
