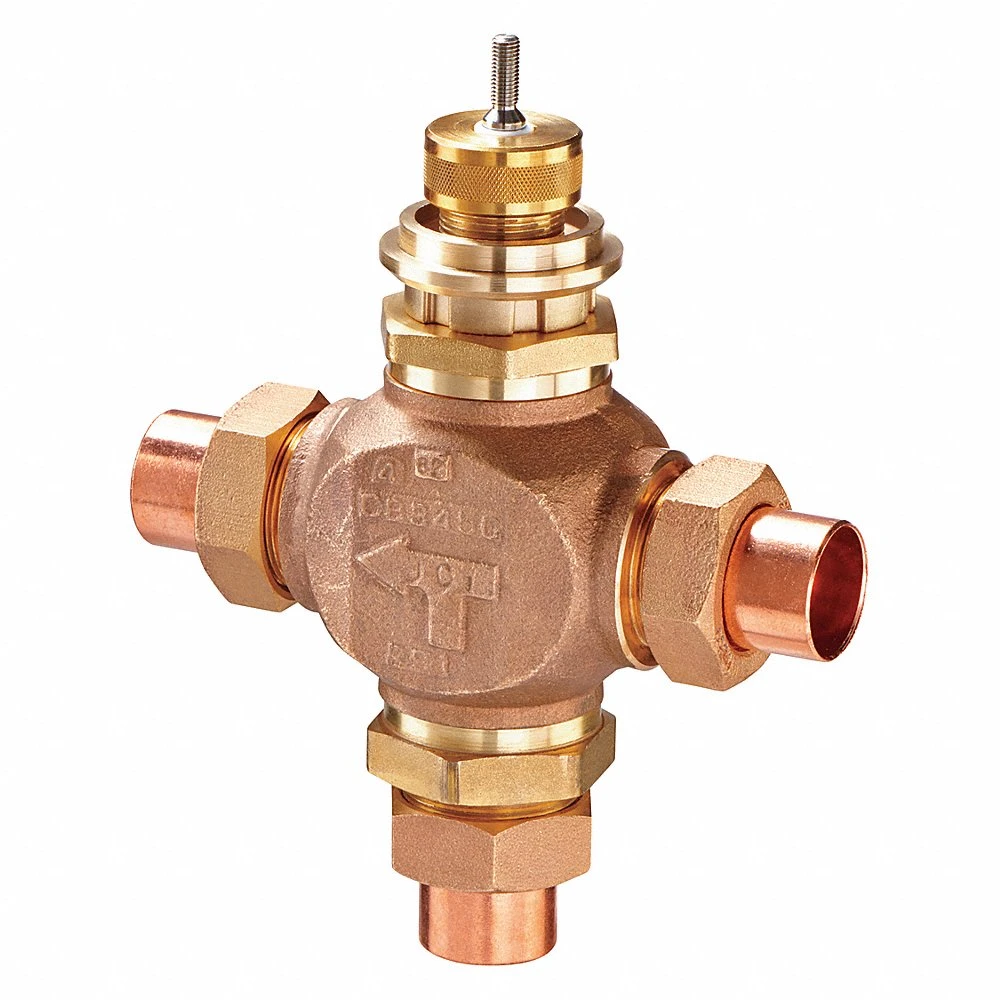

JOHNSON CONTROLS VG7882NT Globe Valve 3-way Mixing 1 Inch Sweat
Item: AD4JBZModel: VG7882NTCross Ref: 41P960
7 In Stock
Ships within 2 days via
10.00% off
€630.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Ansi Rating | ANSI Leakage Class Iv |
| Body Material | Bronze |
| Body Pattern | Three Way |
| Cartridge Material | Not Applicable |
| Coefficient Of Volume | 11.6 |
| Compatible With Series | VG7000 Series |
| Configuration | Tee |
| Connection Size | 1" |
| Connection Type | Sweat |
| Cv Flow Rate | 11.6 |
| Depth | 2.312" |
| Flow Characteristic | Linear |
| Fluid Service | Steam, Water, Water Glycol Solution to 50% |
| Fluid Temperature - Maximum | 248°F |
| Fluid Temperature - Minimum | 35°F |
| Height | 5 31/32" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Installation Orientation | Vertical |
| Leakage Rate | 0.01% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 400 psi |
| Max. Pressure | 400 psi |
| Max. Water Temp. | 284 Degrees F |
| Max. Water Temp. | 284°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 2 5/16" |
| Overall Height | 5 31/32" |
| Overall Length | 6 3/32" |
| Packing Material | Ethylene Propylene |
| Port Connection Gender | Female |
| Port Connection Size | 1" |
| Port Connection Type | Union Sweat |
| Rangeability | 1001 |
| Resistance Properties | Corrosion Resistant |
| Safe Working Steam Pressure | 38 psi |
| Safe Working Water Pressure | 308 psi |
| Seat Material | Brass |
| Stem Material | Stainless Steel |
| Trim Material | Brass |
| Union Connection Size | 1" |
| Valve Action | Normally Open, Normally Closed |
| Valve Style | Mixing |
| Width | 6 3/32" |
Shipping Info:
| Ship weight (kg) | 3.13 |
| Ship height (cm) | 15.16 |
| Ship length (cm) | 5.87 |
| Ship width (cm) | 15.48 |
| HS code | 8481809050 |
| Country of Origin | MX |
Product Variants
| Model | Connection Size | Connection Type | Height | Coefficient Of Volume | Depth | Body Material | Seat Material | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VG7842CT | 1/2" | FNPT | 4 3/4" | 0.73 | 1 5/8" | Bronze | Brass | Stainless Steel | €302.85 | |
| VG7842ET | 1/2" | FNPT | 4 3/4" | 1.8 | 1 5/8" | Bronze | Brass | Stainless Steel | €318.26 | |
| VG7842GT | 1/2" | FNPT | 4 3/4" | 4.6 | 1 5/8" | Bronze | Brass | Stainless Steel | €198.78 | |
| VG7842LT | 3/4" | FNPT | 4 3/4" | 7.3 | 1 7/8" | Bronze | Brass | Stainless Steel | €432.94 | |
| VG7842NT | 1" | FNPT | 5 31/32" | 11.6 | 2.312" | Bronze | Brass | Stainless Steel | €559.41 | |
| VG7842PT | 1 1/4" | FNPT | 5 7/8" | 18.5 | 2.688" | Bronze | Brass | Stainless Steel | €822.28 | |
| VG7842RT | 1 1/2" | FNPT | 5 13/16" | 28.9 | 4.312" | Bronze | Brass | Stainless Steel | €908.46 |
