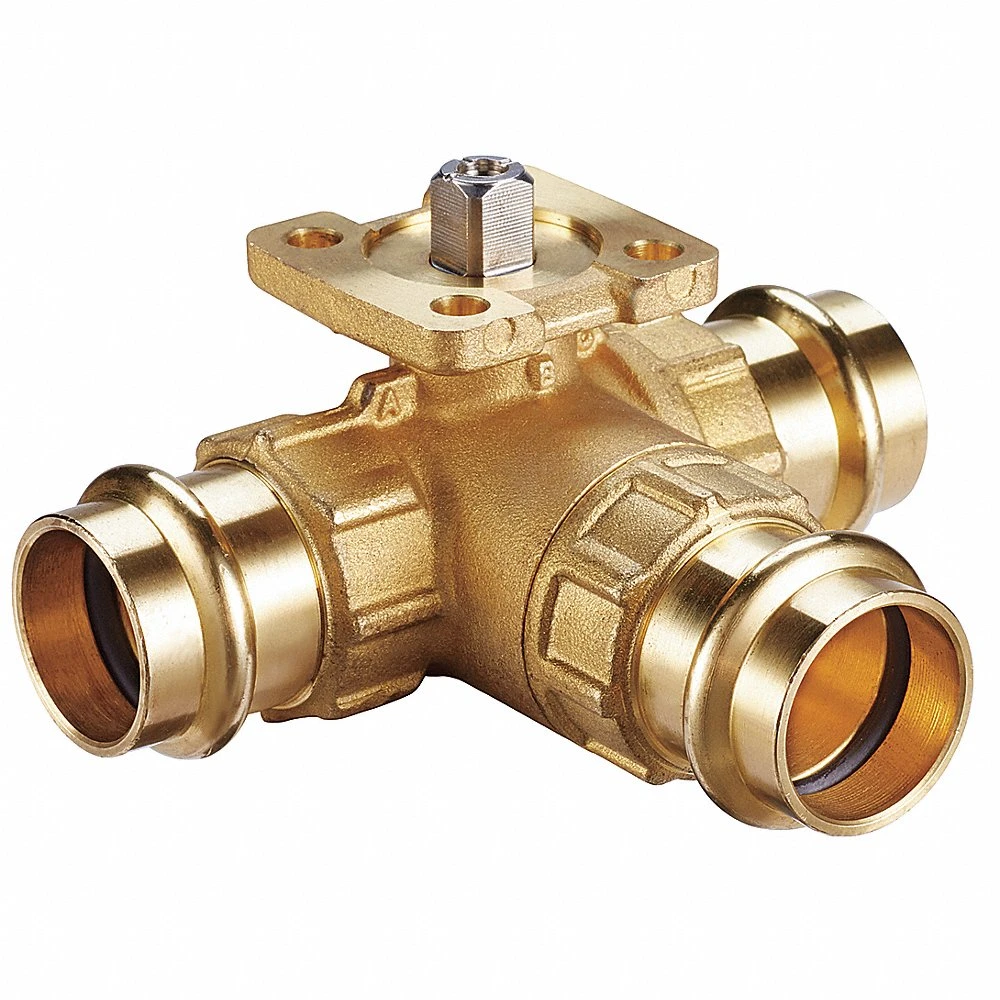

JOHNSON CONTROLS VG1895AE Ball Valve 3 Way Stainless Steel Trim Press End 1/2
Item: AD4HUZModel: VG1895AECross Ref: 41P796
7 In Stock
Ships within 2 days via
10.00% off
€145.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | H VAC Control Ball Valve |
| Ansi Rating | ANSI Leakage Class Iv |
| Application | Control Of Hot/Chilled Water |
| Ball Material | Stainless Steel |
| Body Material | Brass |
| Body Pattern | Three Way |
| Bypass Cv Flow Rate (gpm) | 1.2 GPM |
| Close Off Pressure | 200 psi |
| Closeoff Pressure | 200 psi |
| Coefficient Of Volume | 1.9 |
| Compatible With Series | VG1000 Series |
| Connection Size | 1/2" |
| Connection Type | Press End |
| Cv Flow Rate (gpm) | 1.9 GPM |
| Depth | 3.781" |
| Disk Material | Polyphthalamide Resin |
| Flow Characteristic | Equal Percentage, Linear |
| Fluid Service | Steam, Water |
| Fluid Temperature - Maximum | 284°F |
| Fluid Temperature - Minimum | -22°F |
| Gasket Material | EPDM |
| Height | 1 7/8" |
| Includes Actuator | Actuator Not Included |
| Includes Characterizing Disk | Disk Included |
| Leakage Rate | 1% |
| Material | Stainless Steel |
| Max. Water Temp. | 284 Degrees F |
| Max. Water Temp. | 284°F |
| Overall Depth | 3 13/16" |
| Overall Height | 1 7/8" |
| Overall Length | 1 15/16" |
| Port Connection Size | 1/2" |
| Port Connection Type | Press |
| Port Connections | Bypass, Control |
| Power Source | Electric Actuator |
| Rangeability | 500:1 |
| Resistance Properties | Wear Resistant |
| Safe Working Steam Pressure | 15 with Thermal Spacer |
| Safe Working Water Pressure | 580 psi |
| Safe Working Water Pressure | 580 |
| Seat Material | Graphite Reinforced Ptfe |
| Specific Valve Action | Stem Down To Close |
| Stem Material | Stainless Steel |
| Trim Material | Stainless Steel |
| Width | 1.906" |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 4.76 |
| Ship length (cm) | 9.6 |
| Ship width (cm) | 4.84 |
| HS code | 8481809050 |
| Country of Origin | MX |
Product Details:
- Valve Only/Actuator Included (Valve Only)
Product Variants
| Model | Connection Size | Connection Type | Material | Max. Water Temp. | Power Source | Safe Working Water Pressure | Close Off Pressure | Valve Only/actuator Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| VG1895AD | 1/2" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | - | €160.93 | |
| VG1895AF | 1/2" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | - | €192.66 | |
| VG1895AG | 1/2" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | - | €160.93 | |
| VG1895AL | 1/2" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | - | €192.66 | |
| VG1895AN | 1/2" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | Valve Only | €160.93 | |
| VG1895BG | 3/4" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | Valve Only | €198.44 | |
| VG1895BL | 3/4" | Press End | Stainless Steel | 284°F | Electric Actuator | 580 psi | 200 psi | - | €165.30 |
