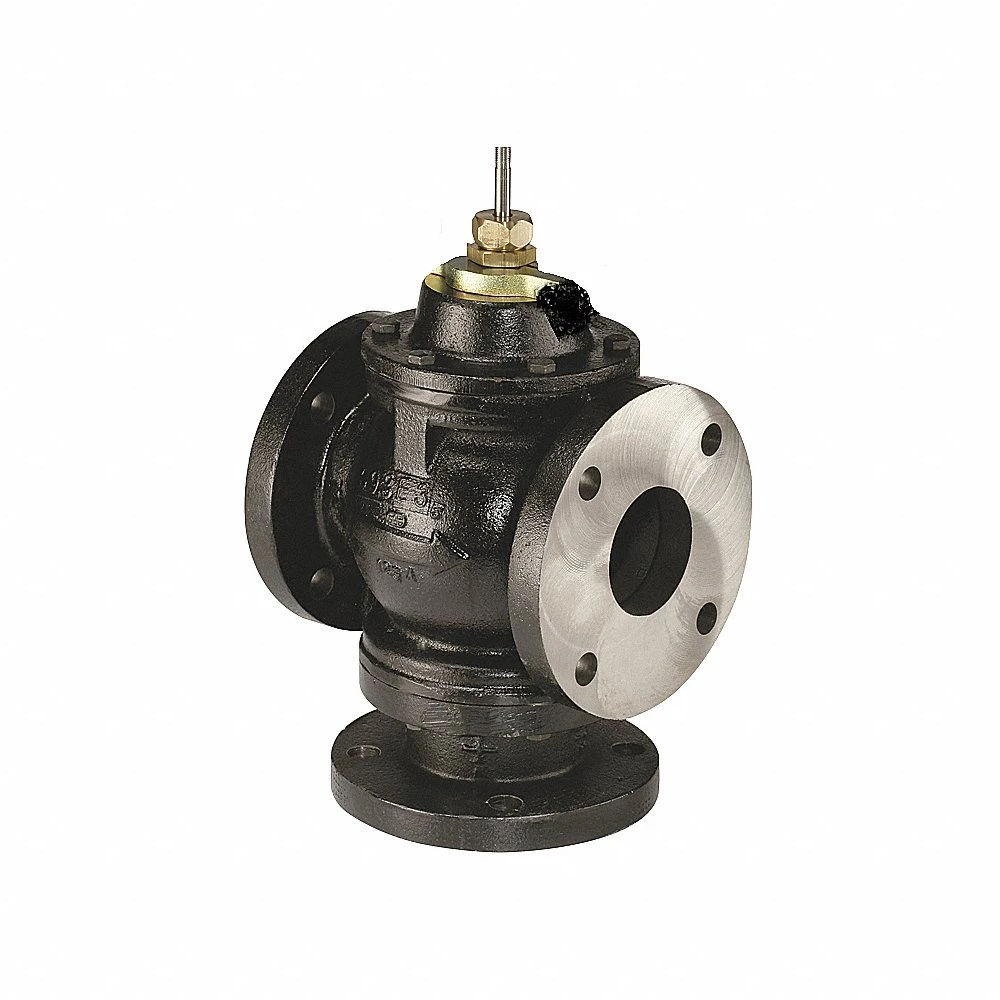

JOHNSON CONTROLS VG2831WN Globe Valve 3-way Mixing 5 Inch Flanged
Get it by Tuesday, Dec 23
10.00% off
€5,186.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Globe Valve Less Actuator |
| Actuator Control Signal | Not Applicable |
| Actuator Input Voltage | Not Applicable |
| Actuator Return Action | Spring Return |
| Actuator Type | Not Applicable |
| Body Material | Cast Iron |
| Cartridge Material | Not Applicable |
| Configuration | Tee |
| Connection Size | 5" |
| Connection Type | Flanged |
| Depth | 10" |
| Flow Characteristic | Linear |
| Height | 12 1/2" |
| Includes | Valve Only |
| Includes Actuator | Actuator Not Included |
| Leakage Rate | 0.1% |
| Max. Actuator Control Pressure | Not Applicable |
| Max. Allowable Pressure | 175 psi |
| Max. Water Temp. | 281 Degrees F |
| Max. Water Temp. | 281°F |
| Min. Actuator Control Pressure | Not Applicable |
| Overall Depth | 10" |
| Overall Height | 12 1/2" |
| Overall Length | 10" |
| Port Connection Size | 5" |
| Port Connection Type | Flanged |
| Safe Working Steam Pressure | 35 psi |
| Safe Working Water Pressure | 175 psi |
| Seat Material | Brass |
| Stem Material | Stainless Steel |
| Stem Travel | 1 3/8" |
| Trim Material | Brass |
| Union Connection Size | Not Applicable |
| Valve Style | Mixing |
| Width | 10" |
Shipping Info:
| Ship weight (kg) | 66.15 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 25.4 |
| HS code | 8481809050 |
| Country of Origin | MX |
Product Variants
| Model | Connection Size | Height | Depth | Configuration | Body Pattern | Body Material | Connection Type | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

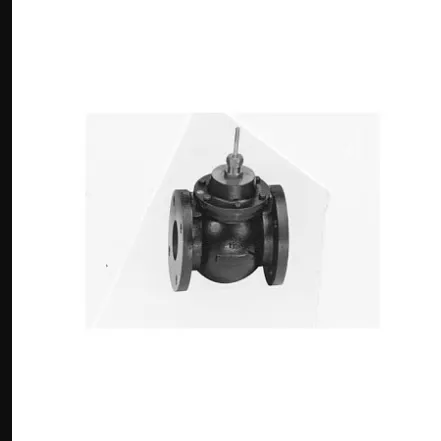

| VG2231TL | 2 1/2" | 11 21/32" | 7" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,671.87 | |
| VG2231TM | 2 1/2" | 11 21/32" | 7" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,744.56 | |
| VG2231UL | 3" | 12 11/16" | 7 1/2" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,860.12 | |
| VG2231UM | - | 12.688" | 7 1/2" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,990.01 | |
| VG2231UN | 3" | 12 11/16" | 7 1/2" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €1,913.21 | |
| VG2231VM | 4" | 15 7/16" | 9" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €2,605.24 | |
| VG2231VN | 4" | 15 7/16" | 9" | Straight Thru | Two-Way | Cast Iron | Flanged | - | €2,712.80 |
