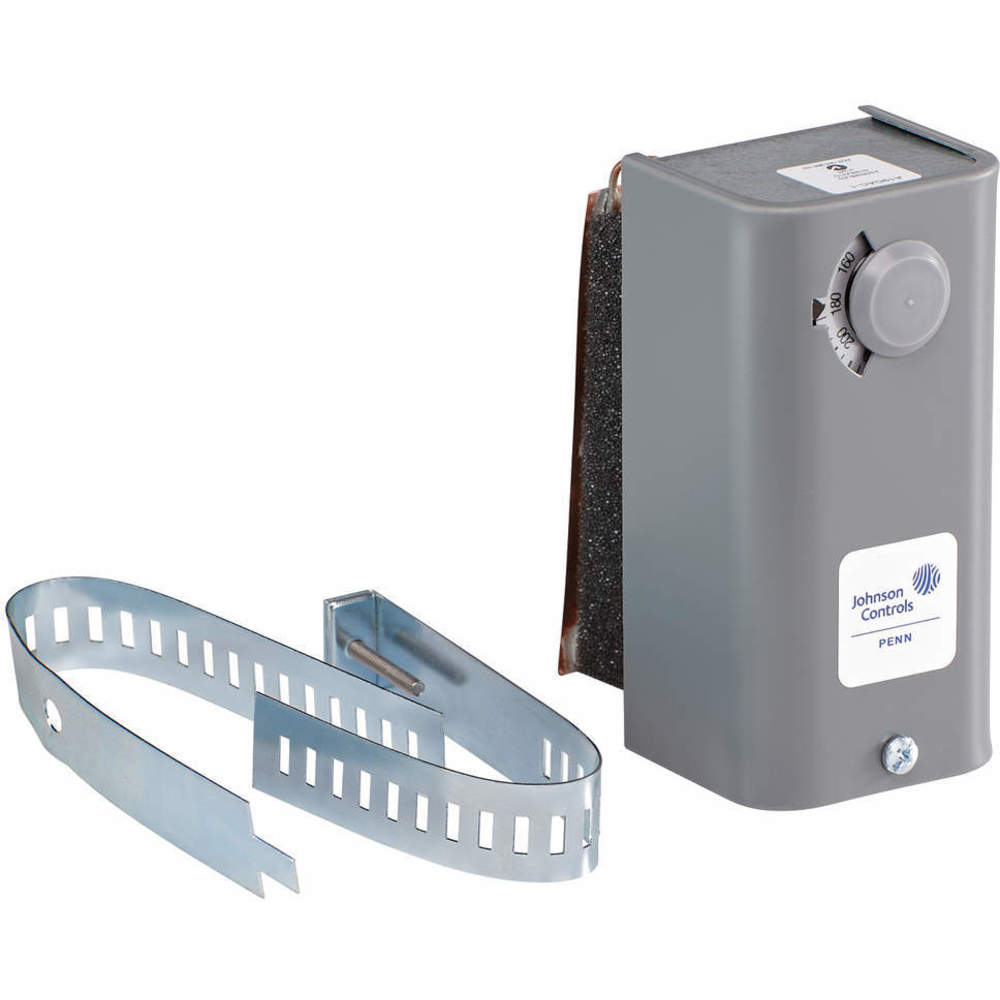

JOHNSON CONTROLS A19DAF-2C Line V Mechanical Thermostat 24 to 277VAC 6A | AG9MLT 20XJ41

JOHNSON CONTROLS A19DAF-2C Line V Mechanical Thermostat 24 to 277VAC 6A

Item: AG9MLTModel: A19DAF-2CCross Ref: 20XJ41
7 In Stock

Ships within 2 days via

€231.93
10.00% off
€208.73 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Line Volt Mechanical Tstat
Application Heat And Cool
Color Gray
Contact Rating 120/240V AC
Contact Rating Resistive @ 120v 6A
Contact Rating Resistive @ 240v 3.4A
Contact Type Snap Action
Control Type Knob, Screwdriver
Depth 1 13/16"
Differential 3.5°F
Differential Type Adjustable
Electrical Connection Type Hardwired
Enclosure Color Gray
Enclosure Finish Baked Enamel
Enclosure Material Steel
Enclosure Nema Rating NEMA 1
Enclosure Type Single Gang Box
Full Load Amps @ 120v 15A , 6A
Full Load Amps @ 120v 15A
Full Load Amps @ 240v Ac 3.4A
Full Load Amps @ 240vac 3.4A
Height 4 13/32"
Includes Adjustable Mounting Straps
Inductive Amps @ 120v 6A
Inductive Amps @ 240v 3.4A
Locked Rotor Amps @ 120v 36A
Locked Rotor Amps @ 240v 20.4A
Maximum Control Temperature 240°F
Maximum Operating Temperature 140°F
Minimum Control Temperature 200°F
Mounting Direction Horizontal, Vertical
Mounting Type Flat Surface
Number Of Poles 1
Number Of Relay Control Output 0
Number Of Relay Inputs 0
Number Of Switches 1
Overall Depth 1 13/16"
Overall Height 4 7/16"
Overall Width 2 3/16"
Pilot Duty Contacts 125 VA
Pilot Duty Contacts (va) 125VA
Pilot Duty Rating 125A @ 24-277V AC
Product Datasheet johnson-controls-a19daf-2c.pdf
Remote Sensing Bulb Included No
Remote Sensing Capability No
Sensing Bulb Dia. 3/8"
Sensor Dia. 3/8"
Sensor Location Remote
Sensor Type Copper Bulb
Switch Action Open, Close On Rise
Switch Type SPDT
Temp. Sensitivity -2°F to +2°F
Temp. Sensitivity +/-2 Degrees F
Temperature Differential 3.5°F
Temperature Scale Fahrenheit
Temperature Sensitivity -2°F to +2°F
Thermostat Programmable No
Thermostat Type Line Voltage
Voltage 24-277V AC
Width 2 5/32"

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)11.27
Ship length (cm)4.6
Ship width (cm)5.56
Country of OriginMX

Product Details:

    • Thermostat Programmable : No
    • Thermostat Heating/Cooling : Heating/Cooling
    • Remote Sensing Bulb Included : No

Documentation:

Datasheet

Product Variants

ProductModelInput VoltageAmpsSwitch ActionSwitch TypeVoltageFull Load Amps @ 240v AcHeightMounting TypePrice
JOHNSON CONTROLS A19ABC-24C Line Volt Thermostat, SPDT Switch, -30 to 100 deg F | AC7WKD 38Y058 A19ABC-24COpen/Close On Rise120-277V AC1 7/8"14 3/8"2 1/8"22A22A€212.91
JOHNSON CONTROLS A19ANC-1C Thermostat Spdt Range 0 To 150 | AC7WKE 38Y068 A19ANC-1COpen/Close On Rise120-277V AC3 3/8"3R4 1/8"4 1/8"16A8A€579.06
JOHNSON CONTROLS A19BBC-2C Thermostat Spdt Range 35 To 95 | AC7WKF 38Y070 A19BBC-2COpen/Close On Rise120-277V AC1 13/16"14 3/8"2 1/8"22A22A€265.46
JOHNSON CONTROLS A19AAF-21C Line V Mechanical Thermostat 120 to 277VAC 6A | AG9MLD 20XJ28 A19AAF-21CClose On Fall/Open120-277V AC2"-4 3/8"2 1/8"10A10A€254.70
JOHNSON CONTROLS A19AAF-4C Line V Mechanical Thermostat 120 to 277VAC 6A | AG9MLE 20XJ29 A19AAF-4COpen, Close On Rise120-277V AC1 7/8"14 3/8"2 1/8"10A10A-
RFQ
JOHNSON CONTROLS A19ABA-49C Line Volt Mechanical Thermostat 120 to 277VAC | AG9MLF 20XJ30 A19ABA-49CClose On Rise120-277V AC1 7/8"14 3/8"2 1/8"22A22A€259.02
JOHNSON CONTROLS A19ABC-41C Line Volt Mechanical Thermostat, 24 to 600VAC Voltage, 10A Current | AG9MLG 20XJ31 A19ABC-41COpen/Close On Rise24-600V AC1 7/8"14 3/8"2 1/8"22A22A€291.50
