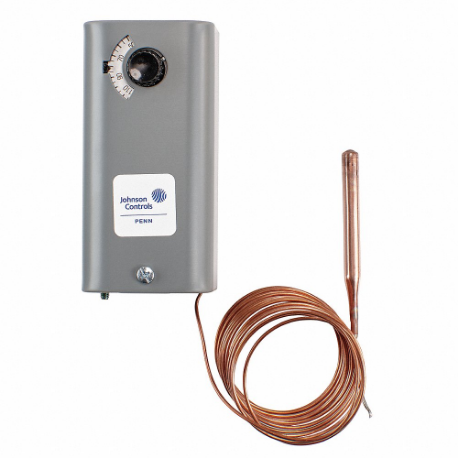

JOHNSON CONTROLS A19ABB-2C Line Volt Mechanical Tstat, 1H/1C, Heat or Cool, SPST, Open on Rise, 50 Deg to 200 Deg F
Item: CR6ARDModel: A19ABB-2CCross Ref: 38Y055
7 In Stock
Ships within 2 days via
10.00% off
€283.39 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Line Volt Mechanical Tstat |
| Application | Heat Or Cool |
| Bulb Dia. | 3/8" |
| Bulb Length | 2 1/2" |
| Capillary Length | 120" |
| Changeover Type | Manual |
| Color | Gray |
| Compatible System Type | Hot Water Heating Controls |
| Contact Rating | 120/208/240V AC |
| Contact Rating Resistive @ 120v | 22A |
| Contact Rating Resistive @ 240v | 22A |
| Contact Rating Resistive @ 277v | 22A |
| Contact Type | Snap Action |
| Control Type | Exposed Dial |
| Depth | 1 13/16" |
| Differential Type | Adjustable |
| Electrical Connection Type | Hardwired, Screw Terminal |
| Enclosure Color | Gray |
| Enclosure Material | Steel |
| Enclosure Nema Rating | NEMA 1 |
| Full Load Amps @ 120v | 16A |
| Full Load Amps @ 120v Ac | 16A |
| Full Load Amps @ 240v Ac | 8A |
| Height | 4 3/8" |
| Includes | Remote Sensing Bulb |
| Inductive Amps @ 120v | 16A |
| Inductive Amps @ 208v | 9.2A |
| Inductive Amps @ 240v | 8A |
| Locked Rotor Amps @ 120v | 96A |
| Locked Rotor Amps @ 240v | 48A |
| Max. Control Temp. | 200°F |
| Max. Operating Temp. | 240°F |
| Min. Control Temp. | 50°F |
| Min. Operating Temp. | -35°F |
| Mounting Type | Surface Mount |
| Number Of Cooling Stages | 1 |
| Number Of Heating Stages | 1 |
| Number Of Poles | 1 |
| Number Of Relay Control Output | 1 |
| Number Of Relay Inputs | 1 |
| Number Of Switches | 1 |
| Overall Depth | 1 7/8" |
| Overall Height | 4 3/8" |
| Overall Width | 2 1/8" |
| Pilot Duty | 125 VA @ 24 To 600V AC |
| Pilot Duty Contacts (va) | 125 VA |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC |
| Remote Sensing Bulb Included | Yes |
| Remote Sensing Capability | Yes |
| Resistive Amps @ 208v Ac | 22A |
| Sensing Bulb Dia. | 3/8" |
| Sensing Bulb Length | 2 1/2" |
| Sensor Location | Remote |
| Sensor Type | Hydraulic Capillary Bulb |
| Switch Action | Open On Rise |
| Switch Type | SPST |
| Temp. Differential | 6°F to 24°F |
| Temp. Sensitivity | -4°F to +4°F |
| Temperature Scale | Fahrenheit, Celsius |
| Temperature Sensitivity | -4°F to +4°F |
| Thermostat Heating/cooling | Heating |
| Thermostat Programmable | No |
| Thermostat Type | Indoor Single Stage Controls |
| Voltage | 120-277V AC |
| Width | 2 1/8" |
Shipping Info:
| Ship weight (kg) | 0.46 |
| Ship height (cm) | 11.11 |
| Ship length (cm) | 4.76 |
| Ship width (cm) | 5.4 |
| Country of Origin | MX |
Product Variants
| Product | Model | Input Voltage | Amps | Switch Action | Switch Type | Voltage | Full Load Amps @ 240v Ac | Height | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A19BAG-1E | 120V AC | 13A | Open On Rise | SPST | 120V AC | - | 5 1/2" | - | €199.95 | |
 |
A19ABA-40C | 120-277V AC | - | Close On Rise | SPST | 120-277V AC | 8A | 4 3/8" | Surface Mount | €171.26 | |
 |
A19ABC-24C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Surface Mount | €212.91 | |
 |
A19ANC-1C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 1/16" | Surface Mount | €579.06 | |
 |
A19BBC-2C | 120-277V AC | - | Open/Close On Rise | SPDT | 120-277V AC | 8A | 4 3/8" | Flat Surface | €265.46 | |
 |
A19PRC-1C | 24-277V AC | - | Open/Close On Rise | SPDT | 24-277V AC | 8A | 5 5/8" | Flat Surface | €553.85 | |
|
A19AAF-21C | - | - | Close On Fall/Open | - | 120-277V AC | 3A | 4 13/32" | Flat Surface | €254.70 |
