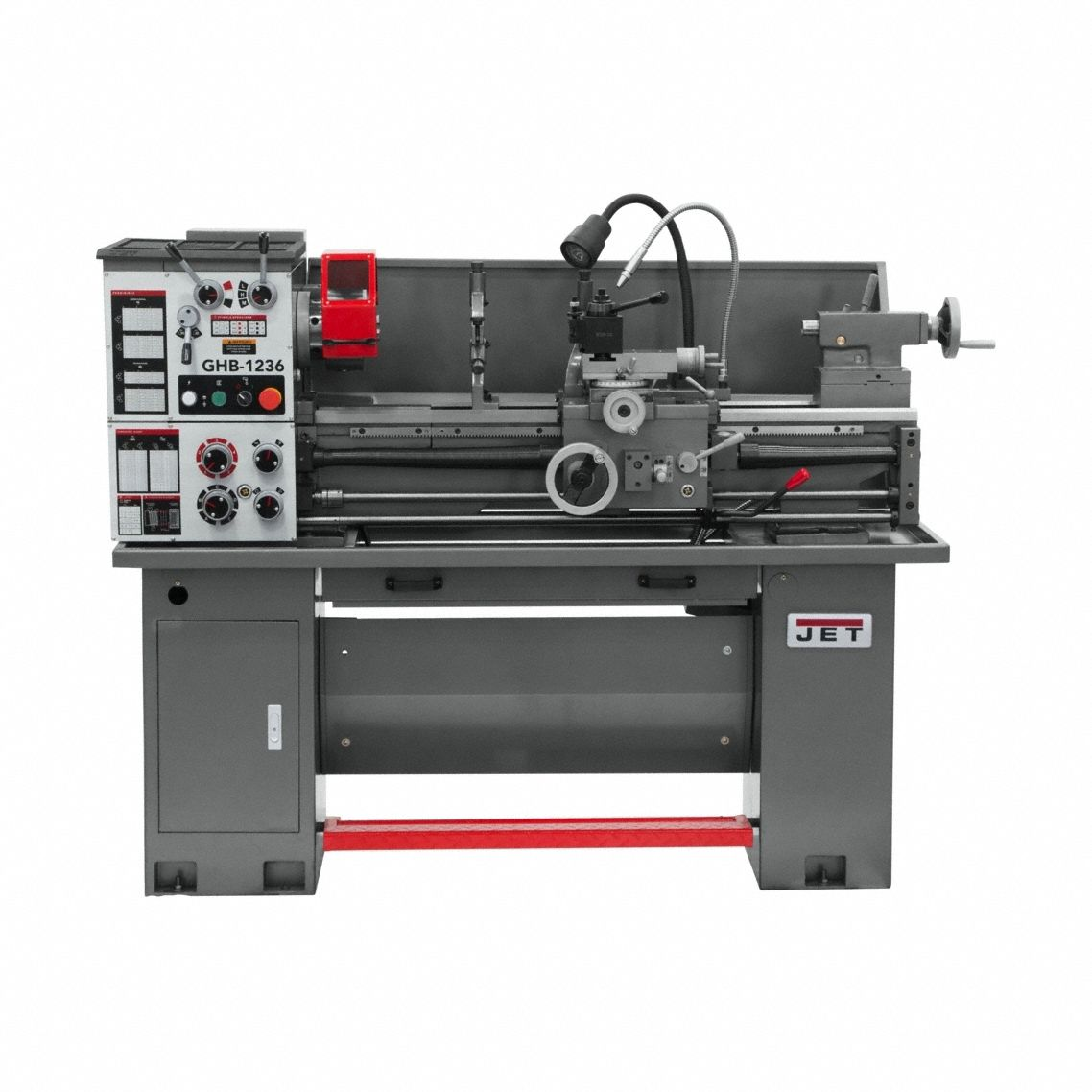

JET TOOLS JT9-321236 Lathe, Metal Turning, 12 Inch Size x 33 in, 1 37/64 Inch Size Spindle Bore, D1-4 Camlock
Get it by Thursday, Dec 18
10.00% off
€13,966.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lathe |
| Application | Metal Turning |
| Bed Width | 7 3/25" |
| Carriage Travel - Maximum | 27 3/8" |
| Compound Slide Travel - Maximum | 3" |
| Cross Feed - Maximum | 0.0116 in./rev. |
| Cross Feed - Minimum | 0.0014 in./rev. |
| Cross Slide Travel - Maximum | 5 1/2" |
| Current | 8.5A |
| Distance Between Centers | 33" |
| Frequency | 60 Hz |
| Gap Length | 8 3/4" |
| Horsepower | 2 hp |
| Includes | 10" Faceplate (Strapped To Container), 6" Three Jaw Chuck (Mounted On Lathe), 8" Four Jaw Chuck (Strapped To Container), Chip Tray, Follow Rest (Mounted On Lathe), Splash Guard, Steady Rest (Mounted On Lathe), Tool Box (Strapped To Container) |
| Includes Stand | Stand Included |
| Input Voltage (nominal) | 240V AC |
| Lathe Head Drive | Gear Drive |
| Leadscrew Size | 7/8"-8 |
| Longitudinal Feed - Maximum | 0.0472 in./rev. |
| Longitudinal Feed - Minimum | 0.0019 in./rev. |
| Metric Thread - Maximum | 7 mm |
| Metric Thread - Minimum | 0.4 mm |
| Number Of Inch Threads | 36 |
| Number Of Metric Threads | 32 |
| Number Of Spindle Speeds | 9 |
| Overall Depth | 66 1/64" |
| Overall Height | 59 13/16" |
| Overall Width | 29 1/2" |
| Series | GHB-1236 Series |
| Sound Level | 88 dBA |
| Spindle Bore Size | 1 5/8" |
| Spindle Nose Diameter | 1 1/4" |
| Spindle Nose Taper | D1-4 Camlock |
| Spindle Speed - Maximum | 1400 RPM |
| Spindle Speed - Minimum | 75 RPM |
| Swing Over Bed | 12" |
| Swing Over Cross Slide | 7 1/2" |
| Swing Over Gap | 18" |
| Tailstock Diameter | 1 1/4" |
| Tailstock Spindle Travel | 3 1/2" |
| Tailstock Taper | MT3 |
| Threads Per Inch - Maximum | 60 |
| Threads Per Inch - Minimum | 4 |
| Voltage | 230V AC |
Shipping Info:
| Ship weight (kg) | 563.4 |
| Ship height (cm) | 151.92 |
| Ship length (cm) | 167.68 |
| Ship width (cm) | 74.93 |
| Country of Origin | CN |
Product Variants
| Product | Model | Overall Width | Swing Over Bed | Distance Between Centers | Spindle Bore | Overall Height | Number Of Inch Threads | Voltage | Number Of Metric Threads | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JT9-719200 | 17.7" | 12 1/2" | 20 1/4" | 3/8" | 17.7" | - | 115V | - | €1,482.70 | |
 |
JT9-892000 | 30" | 12" | 36" | 1 9/16" | 60" | 34 | 230V AC | 34 | €23,741.00 | |
 |
JT9-892504 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €62,538.06 | |
|
JT9-892500 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €55,615.33 | |
 |
JT9-892506 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €66,949.24 | |
|
JT9-892501 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €54,534.84 | |
|
JT9-892502 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €59,521.67 |
