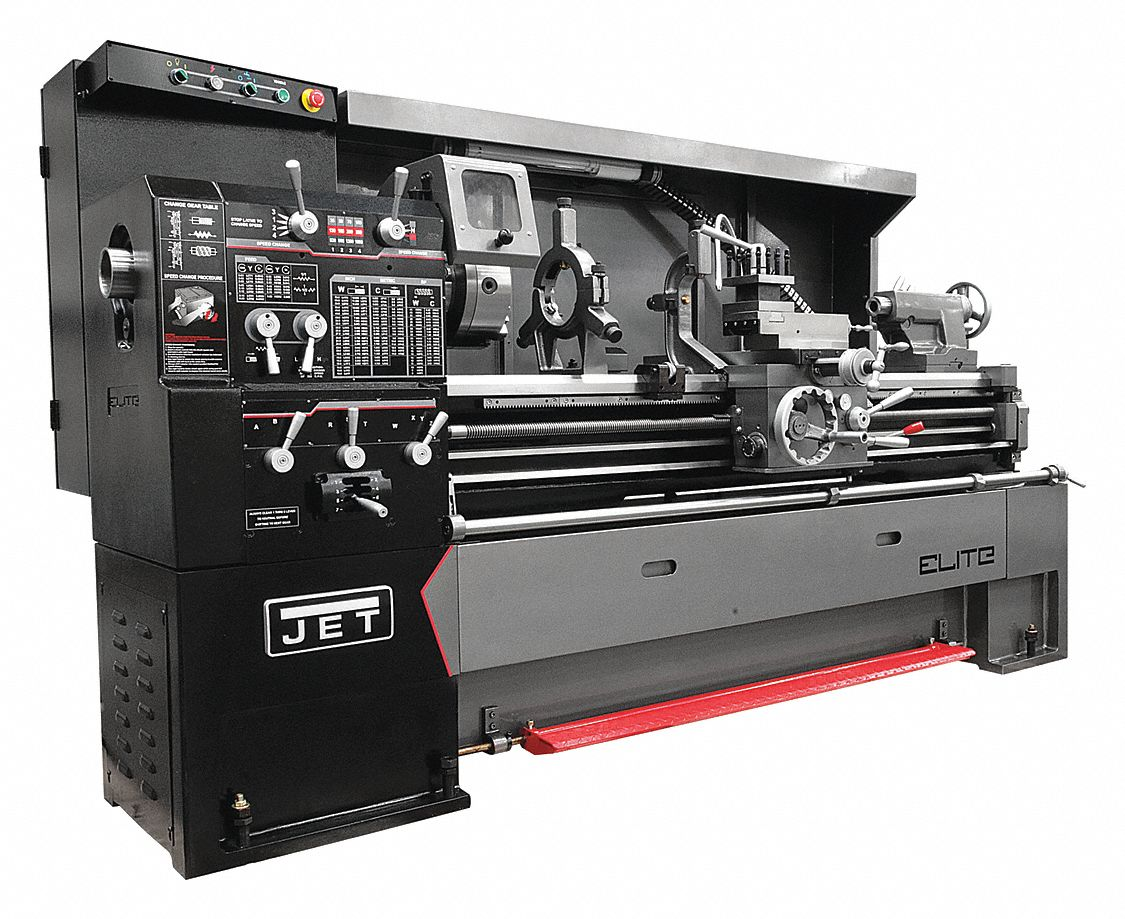

JET TOOLS JT9-892506 Lathe, Turning, 17 Inch X 40 Inch, 3 1/8 Inch Spindle Bore, D1-6 Camlock, 1800 Rpm
Get it by Wednesday, Dec 17
10.00% off
€60,254.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lathe |
| Amperage Draw @ 460v 3ph | 11 |
| Amps | 11/22A |
| Applications | Turning |
| Bed Width | 12" |
| Compound Slide Travel - Maximum | 6 2/7" |
| Cross Feed - Maximum | 0.02 in./rev. |
| Cross Feed - Minimum | 0.00075 in./rev. |
| Cross Slide Travel - Maximum | 9 1/4" |
| Current | 22A |
| Diametral Pitch Threads No. | 21 |
| Digital Readout Included | Acu-Rite 203 |
| Distance Between Centers | 40" |
| Drive | Geared Head |
| Frequency | 60 Hz |
| Gap Length | 7 2/3" |
| Hp | 7 1/2 hp |
| Includes | 12 In 3 Jaw Chuck4-Way Tool Postbackplate For 12 In Chuckchuck Guardfollow Rest- Brass Tippedleveling Padmicro-Carriage Stopsteady Rest-Ball Bearingthreading Dialtool Box With Tool |
| Includes Collet Closer | Collet Closer Included |
| Includes Digital Readout | Digital Readout Included |
| Includes Stand | Stand Included |
| Includes Taper Attachment | Taper Attachment Included |
| Input Voltage (nominal) | 220/440V AC |
| Lathe Head Drive | Gear Drive |
| Leadscrew Size | 4 |
| Longitudinal Feed - Maximum | 0.04 in./rev. |
| Longitudinal Feed - Minimum | 0.0015 in./rev. |
| Max. Cross Feed | 0.02" |
| Max. Metric Thread | 14 mm |
| Max. Spindle Speed | 1800 RPM |
| Max. Threads Per Inch | 112 |
| Metric Thread - Maximum | 14 mm |
| Min. Metric Thread | 0.2 mm |
| Min. Spindle Speed | 36 RPM |
| Min. Threads Per Inch | 4 |
| Modular Pitch Threads No. | 18 |
| Number Of Inch Threads | 45 |
| Number Of Metric Threads | 39 |
| Number Of Spindle Speeds | 5 |
| Overall Depth | 94" |
| Overall Height | 68" |
| Overall Length | 94" |
| Overall Width | 44" |
| Phase | Three |
| Series | EGH-1740 Series |
| Sound Level | 88 dBA |
| Spindle Bore | 3 1/8" |
| Spindle Bore Size | 3 1/8" |
| Spindle Nose Taper | MT5 |
| Spindle Nose Type | D1-6 Camlock |
| Swing In Gap | 24 1/2" |
| Swing Over Bed | 17" |
| Swing Over Cross Slide | 11" |
| Swing Over Gap | 24 1/4" |
| Tailstock Diameter | 2 1/3" |
| Tailstock Spindle Travel | 5" |
| Tailstock Taper | MT4 |
| Threads Per Inch - Maximum | 72 |
| Threads Per Inch - Minimum | 2 |
| Voltage | 230/460V AC |
Shipping Info:
| Ship weight (kg) | 1984.05 |
| Ship height (cm) | 172.72 |
| Ship length (cm) | 238.76 |
| Ship width (cm) | 111.76 |
| Country of Origin | TW |
Product Variants
| Product | Model | Overall Width | Swing Over Bed | Distance Between Centers | Spindle Bore | Overall Height | Number Of Inch Threads | Voltage | Number Of Metric Threads | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
JT9-719200 | 17.7" | 12 1/2" | 20 1/4" | 3/8" | 17.7" | - | 115V | - | €1,482.70 | |
 |
JT9-892000 | 30" | 12" | 36" | 1 9/16" | 60" | 34 | 230V AC | 34 | €23,741.00 | |
 |
JT9-892504 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €62,538.06 | |
|
JT9-892500 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €55,615.33 | |
|
JT9-892501 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €54,534.84 | |
|
JT9-892502 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €59,521.67 | |
 |
JT9-892505 | 44" | 17" | 40" | 3 1/8" | 68" | 45 | 230/460V AC | 39 | €61,356.55 |
