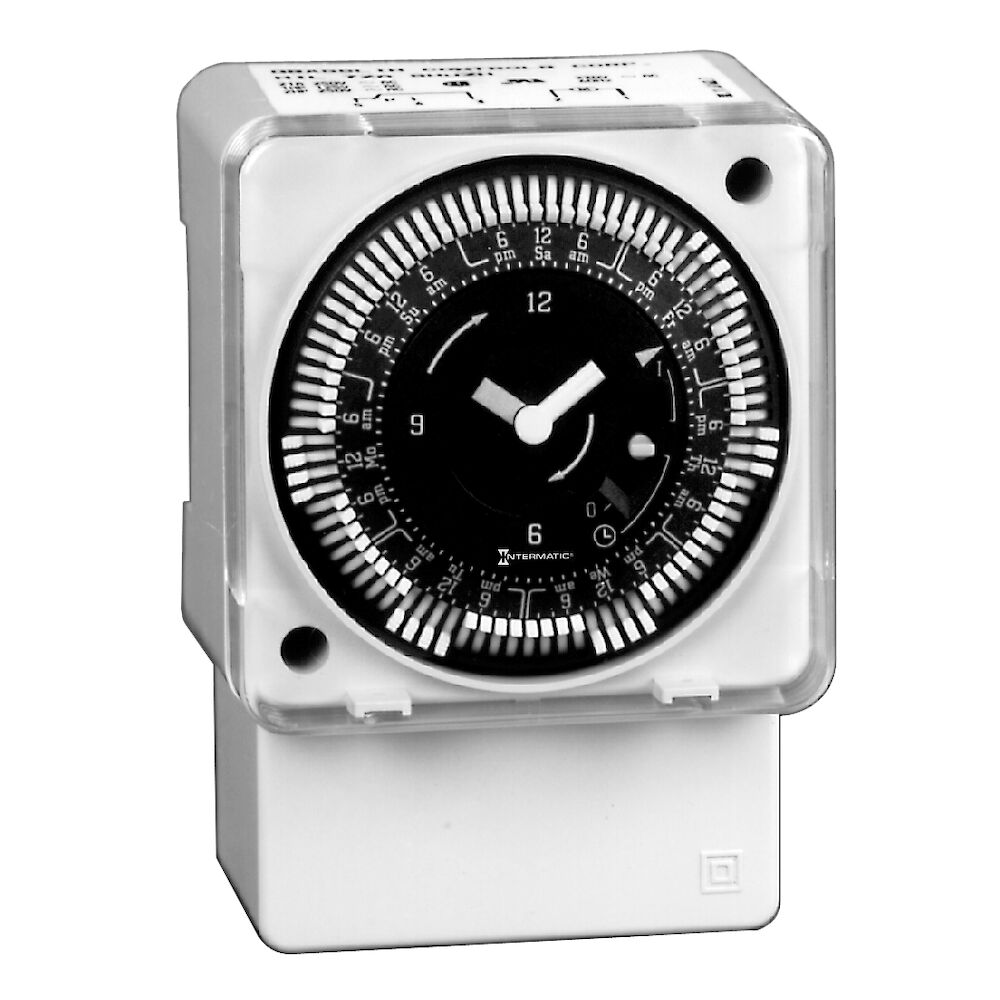

INTERMATIC MIL72ASWUZH-120 Electromechanical Timer 7-day Spdt
Item: AF7EHXModel: MIL72ASWUZH-120Cross Ref: 20XF78
7 In Stock
Ships within 2 days via
10.00% off
€219.35 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electromechanical Timer |
| Amps | 21A |
| Applicable Ac Voltage Ranges | 120V AC |
| Application | Hvac, Machinery |
| Body Material | Plastic |
| Clock Drive Type | Synchronous |
| Compatible Lighting | Compact Fluorescent, Fluorescent, Incandescent, LED |
| Contact Form | SPDT |
| Contact Hp @ 120v | 1 |
| Contact Hp @ 120v | 1 hp |
| Contact Hp @ 240v | 2 |
| Contact Hp @ 240v | 2 hp |
| Current Rating | 21A |
| Day Skipper | Yes |
| Dc Voltage Rating | 12-24V DC |
| Depth | 3 5/16" |
| Description/special Features | Override Switch, Synchronous Motor |
| Display Qty | 1 |
| Enclosure Material | Plastic |
| Enclosure Type | Plastic |
| Features | Manual Override |
| Has Captive Trippers | Yes |
| Has Captive Trippers Cvl | Yes |
| Has Finger Safe Terminals Cvl | Yes |
| Has Finger-safe Terminals | Yes |
| Has Override Switch | Yes |
| Has Override Switch Cvl | Yes |
| Has Real-time Clock Face | Yes |
| Has Realtime Clock Face Cvl | Yes |
| Height | 4 19/32" |
| Horsepower @ 120v - Maximum | 1 hp |
| Horsepower @ 240v - Maximum | 2 hp |
| Indoor/outdoor Usage | Outdoor |
| Max. On/off Cycles | 48 |
| Max. Time Setting | 6.917 Days |
| Maximum Cycle Time | 7 Days |
| Mounting | DIN Rail, Surface |
| Mounting Style | Din Rail, Surface |
| Nema Enclosure Rating | No Enclosure |
| Number Of Poles | 2 |
| Number Of Trippers - Maximum | 96 |
| Number Of Trippers Included | 96 |
| Operating Temp. | -40°F to +185°F |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Overall Depth | 2 1/16" |
| Overall Height | 4" |
| Overall Width | 2 13/16" |
| Power Consumption Max | 0.5 VA |
| Product Type | Timer |
| Series | MIL72 Series |
| Time Setting - Maximum | 7 Day |
| Time Setting - Minimum | 2 hrs. |
| Voltage | 120V AC |
| Width | 3 5/16" |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 10.25 |
| Ship length (cm) | 5.2 |
| Ship width (cm) | 7.2 |
| HS code | 9107008000 |
| Country of Origin | MX |
Product Details:
- Special Features: True Clock Face
Product Variants
| Product | Model | Max. Time Setting | Min. Time Setting | Height | Depth | Day Skipper | Operating Temp. | Mounting | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MIL72AQTUZ-240 | 23.75 hrs. | 15 min. | 4 51/64" | 3 5/16" | No | -4°F to +131°F | DIN Rail, Surface | - | €260.76 | |
|
MIL72AQTUZH-24 | 23 hr., 45 min. | 15 min. | 4 4/5" | 3.3" | No | -4°F to +131°F | - | 24 hrs. | - | RFQ
|
|
MIL72ASTUZ-120 | 23 hr., 45 min. | 15 min. | 4 3/5" | 3.3" | No | -40°F to +185°F | - | 24 hrs. | €68.70 | |
|
MIL72ASTUZH-24 | 23.75 hrs. | 15 min. | 4 19/32" | 3 5/16" | No | -40°F to +185°F | DIN Rail, Surface | - | €146.48 | |
|
MIL72ASTUZH-240 | 23.75 hrs. | 15 min. | 4 19/32" | 3 5/16" | No | -40°F to +185°F | DIN Rail, Surface | - | €146.06 | |
 |
MIL72EQTUZ-24 | 23.75 hrs. | 15 min. | 3 51/64" | 2 5/16" | No | - | Flush | - | €243.85 | |
 |
MIL72ESTUZH-120 | 23.75 hrs. | 15 min. | 3 51/64" | 2 5/16" | No | -40°F to +185°F | Flush | - | €146.11 |
