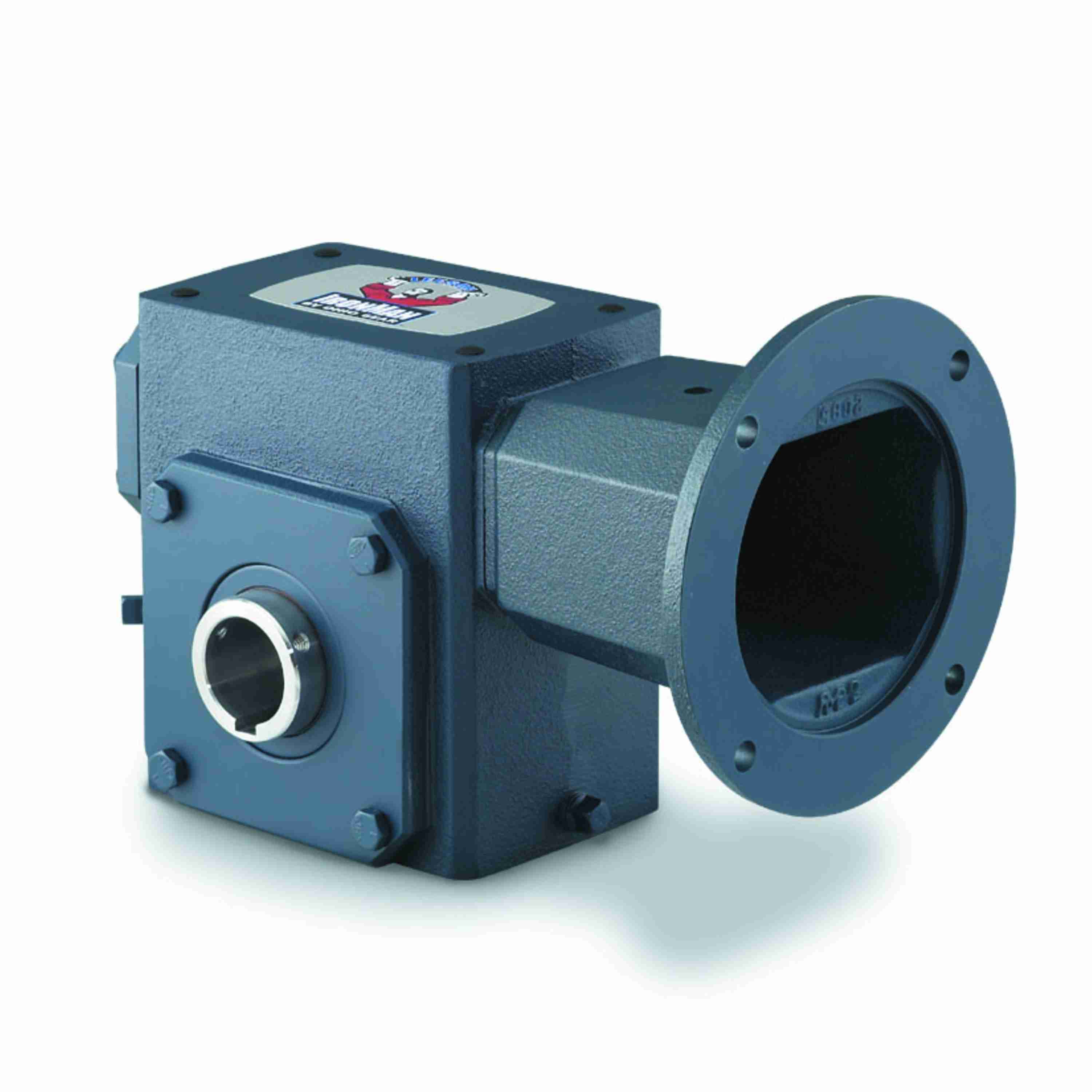

GROVE GEAR GR Series, HM-H1 Style, 832 Size, Ironman Worm Gear Reducers
Filter
A| Style | Model | max. input hp | mounting type | output torque | input style | output rpm | output diameter | gear type | series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GR8320567.31 | 1 3/100 hp | Shaft Mount | 2000 lbs.-in. | Flexible Coupling Input | 21 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320563.31 | 1 3/100 hp | Shaft Mount | 2000 lbs.-in. | Flexible Coupling Input | 21 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320563.20 | 1 3/100 hp | Shaft Mount | 2000 lbs.-in. | Flexible Coupling Input | 21 RPM | 1 1/4" | Worm | GR Series | €3,525.43 | |
| A | GR8320524.23 | 2 57/500 hp | Shaft Mount | 3274 lbs.-in. | Flexible Coupling Input | 29 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320516.32 | 2 57/500 hp | Shaft Mount | 3274 lbs.-in. | C Face Coupled | 29 RPM | 2" | Worm | - | €3,525.43 | |
| A | GR8320532.31 | 2 57/500 hp | Shaft Mount | 3274 lbs.-in. | Flexible Coupling Input | 29 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320515.23 | 2.462 hp | Shaft Mount | 3315 lbs.-in. | Flexible Coupling Input | 35 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320523.31 | 2.462 hp | Shaft Mount | 3315 lbs.-in. | Flexible Coupling Input | 35 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320523.23 | 2.462 hp | Shaft Mount | 3315 lbs.-in. | Flexible Coupling Input | 35 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320531.23 | 2.462 hp | Shaft Mount | 3315 lbs.-in. | Flexible Coupling Input | 35 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320522.31 | 2.926 hp | Shaft Mount | 3303 lbs.-in. | Flexible Coupling Input | 43 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320530.31 | 2.926 hp | Shaft Mount | 3303 lbs.-in. | Flexible Coupling Input | 43 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320514.31 | 2.926 hp | Shaft Mount | 3303 lbs.-in. | Flexible Coupling Input | 43 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320522.28 | 2.926 hp | Shaft Mount | 3303 lbs.-in. | Flexible Coupling Input | 43 RPM | 1 3/4" | Worm | GR Series | €3,525.43 | |
| A | GR8320514.19 | 2.926 hp | Shaft Mount | 3303 lbs.-in. | Flexible Coupling Input | 43 RPM | 1.188" | Worm | GR Series | €3,525.43 | |
| A | GR8320521.32 | 3.619 hp | Shaft Mount | 3226 lbs.-in. | C Face Coupled | 58 RPM | 2" | Worm | GR Series | €3,525.43 | |
| A | GR8320521.31 | 3.619 hp | Shaft Mount | 3226 lbs.-in. | Flexible Coupling Input | 58 RPM | 1.938" | Worm | GR Series | €3,476.45 | |
| A | GR8320521.24 | 3.619 hp | Shaft Mount | 3226 lbs.-in. | Flexible Coupling Input | 58 RPM | 1 1/2" | Worm | GR Series | €3,525.43 | |
| A | GR8320521.23 | 3.619 hp | Shaft Mount | 3226 lbs.-in. | Flexible Coupling Input | 58 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320513.23 | 3.619 hp | Shaft Mount | 3226 lbs.-in. | Flexible Coupling Input | 58 RPM | 1.438" | Worm | GR Series | €1,910.44 | |
| A | GR8320578.31 | 4.373 hp | Shaft Mount | 3360 lbs.-in. | Flexible Coupling Input | 70 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320512.31 | 4.373 hp | Shaft Mount | 3360 lbs.-in. | Flexible Coupling Input | 70 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320578.23 | 4.373 hp | Shaft Mount | 3360 lbs.-in. | Flexible Coupling Input | 70 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320528.23 | 4.373 hp | Shaft Mount | 3360 lbs.-in. | Flexible Coupling Input | 70 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320519.23 | 5 9/50 hp | Shaft Mount | 3267 lbs.-in. | Flexible Coupling Input | 87 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320527.31 | 5 9/50 hp | Shaft Mount | 3267 lbs.-in. | Flexible Coupling Input | 87 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320511.31 | 5 9/50 hp | Shaft Mount | 3267 lbs.-in. | Flexible Coupling Input | 87 RPM | 1.938" | Worm | GR Series | €3,525.43 | |
| A | GR8320526.27 | 6.127 hp | Shaft | - | C Face Coupled | - | - | - | - | €3,525.43 | |
| A | GR8320509.23 | 8 23/250 hp | Shaft Mount | 2700 lbs.-in. | Flexible Coupling Input | 175 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320525.27 | 8 23/250 hp | Shaft Mount | 2700 lbs.-in. | Flexible Coupling Input | 175 RPM | 1.688" | Worm | GR Series | €1,910.44 | |
| A | GR8320575.32 | 8.092 hp | Shaft | - | C Face Coupled | - | - | - | - | €3,525.43 | |
| A | GR8320569.23 | 11 23/25 hp | Shaft Mount | 2033 lbs.-in. | Flexible Coupling Input | 350 RPM | 1.438" | Worm | GR Series | €3,525.43 | |
| A | GR8320569.31 | 11 23/25 hp | Shaft Mount | 2033 lbs.-in. | Flexible Coupling Input | 350 RPM | 1.938" | Worm | GR Series | €3,525.43 |
